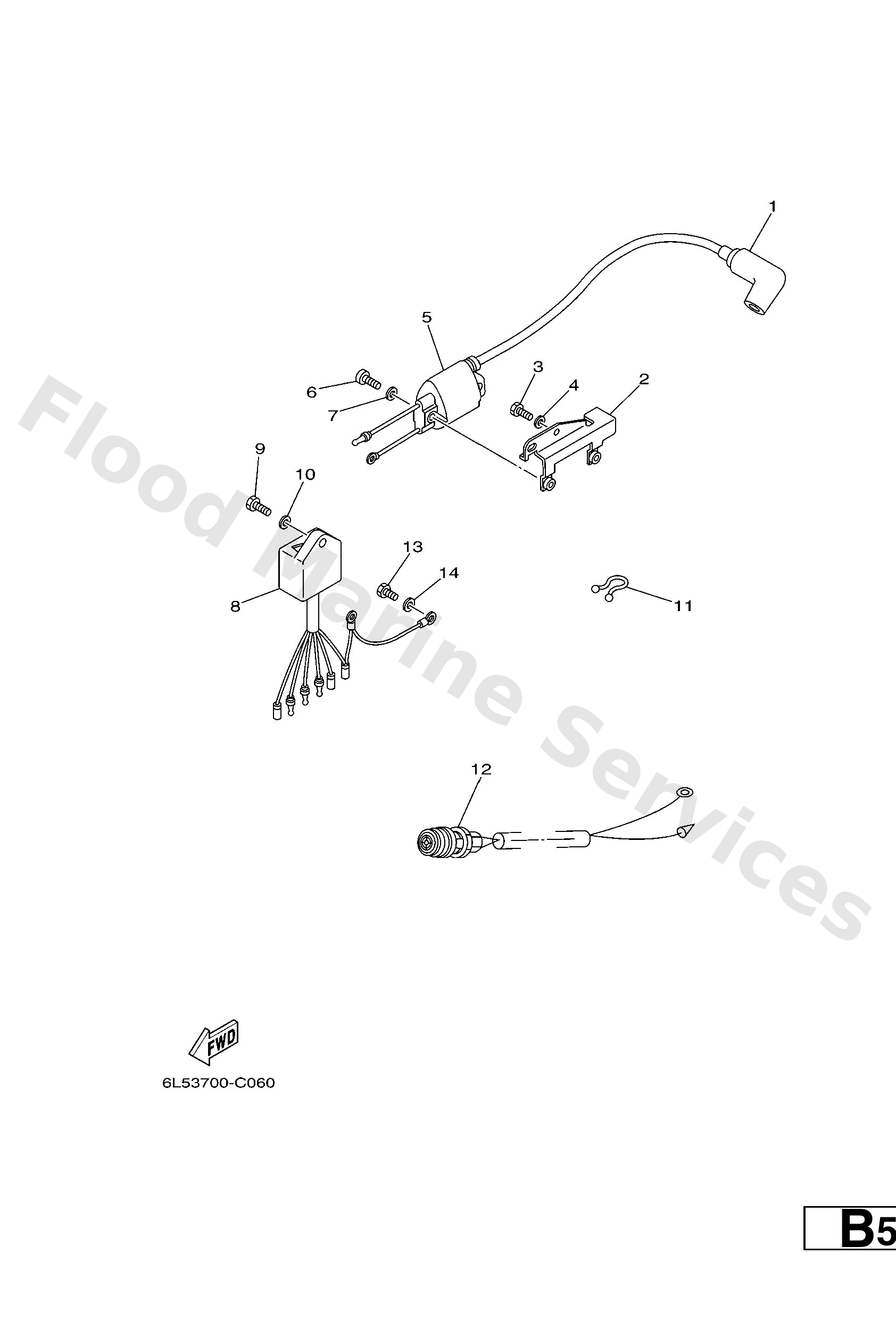

Diagram: ELECTRICAL

Diagram

Parts List

6G18237021
Plug cap assembly
Diagram Reference: 1
Get Part
6L58231600
Bracket, ignition coil
Diagram Reference: 2
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 3
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 4
Get Part
6L585570N0
Ignition coil assembly
Diagram Reference: 5
Get Part
9788006016
Screw pan head
Diagram Reference: 6
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 7
Get Part
6L585540M0
C.d.i. unit assembly
Diagram Reference: 8
Get Part
9046518147
Clamp
Diagram Reference: 11
Get Part
6L58255000
Stop switch assembly
Diagram Reference: 12
Get Part
9709006012
Bolt(gh1)
Diagram Reference: 13
Get Part
