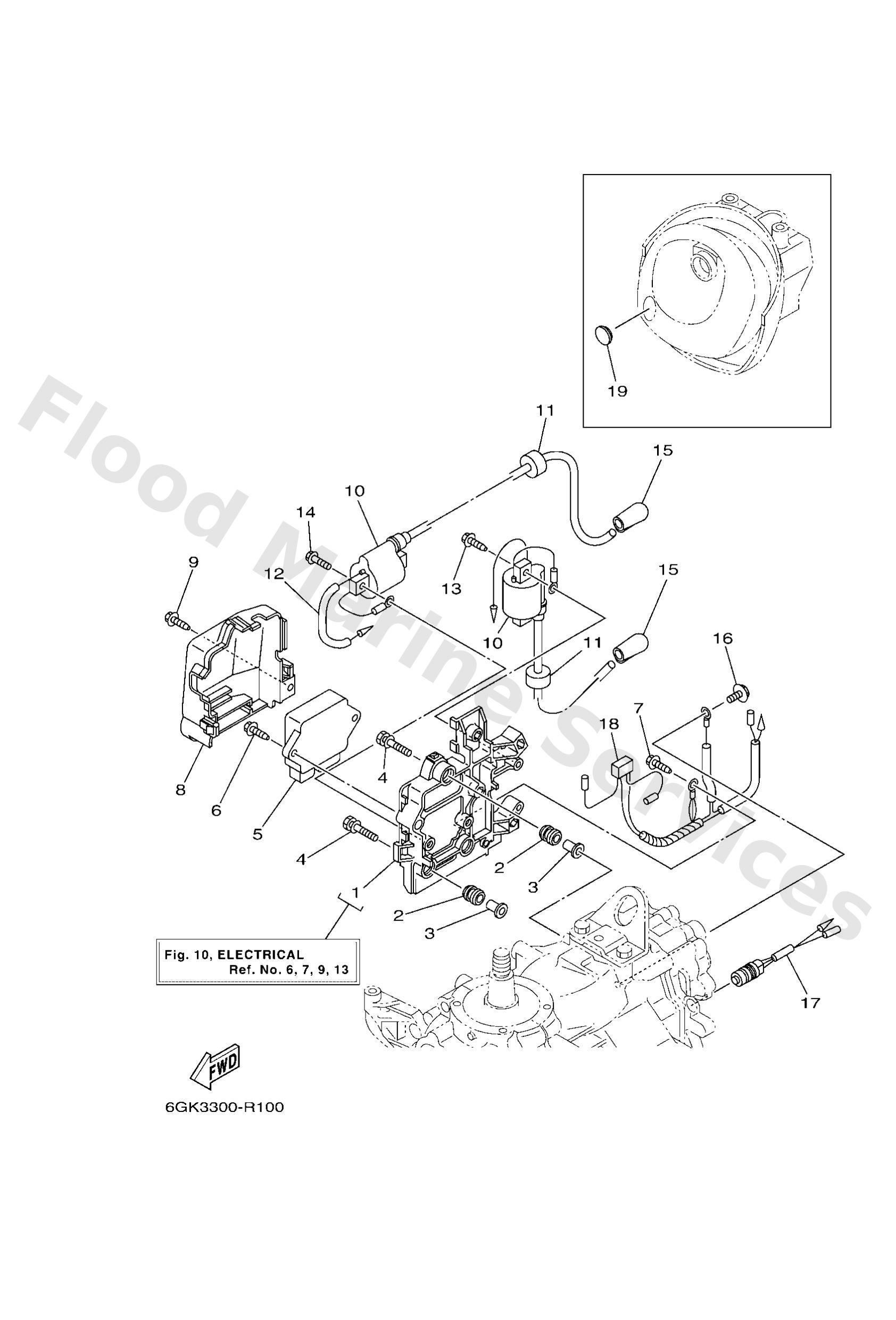

Diagram: ELECTRICAL

Diagram

Parts List

66T8554B0194
Bracket
Diagram Reference: 1
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 2
Get Part
9038706119
Collar
Diagram Reference: 3
Get Part
9011906M65
Bolt, with washer
Diagram Reference: 4
Get Part
66T8554002
C.d.i. unit assembly
Diagram Reference: 5
Get Part
9010906M81
Bolt
Diagram Reference: 6
Get Part
9010906M80
Bolt
Diagram Reference: 7
Get Part
66T8191601
Cover, terminal
Diagram Reference: 8
Get Part
66T8557000
Ignition coil assembly
Diagram Reference: 10
Get Part
9048025161
Grommet(656)
Diagram Reference: 11
Get Part
9044603MA3
Hose
Diagram Reference: 12
Get Part
9759506525
Bolt, hexagon w/w deep recess
Diagram Reference: 14
Get Part
6E38237021
Plug cap assembly
Diagram Reference: 15
Get Part
9759506512
Bolt, hexagon w/w deep recess
Diagram Reference: 16
Get Part
6888256010
Thermo switch assembly
Diagram Reference: 17
Get Part
66T8251900
Wire, earth lead
Diagram Reference: 18
Get Part
6G14272500
Grommet
Diagram Reference: 19
Get Part
