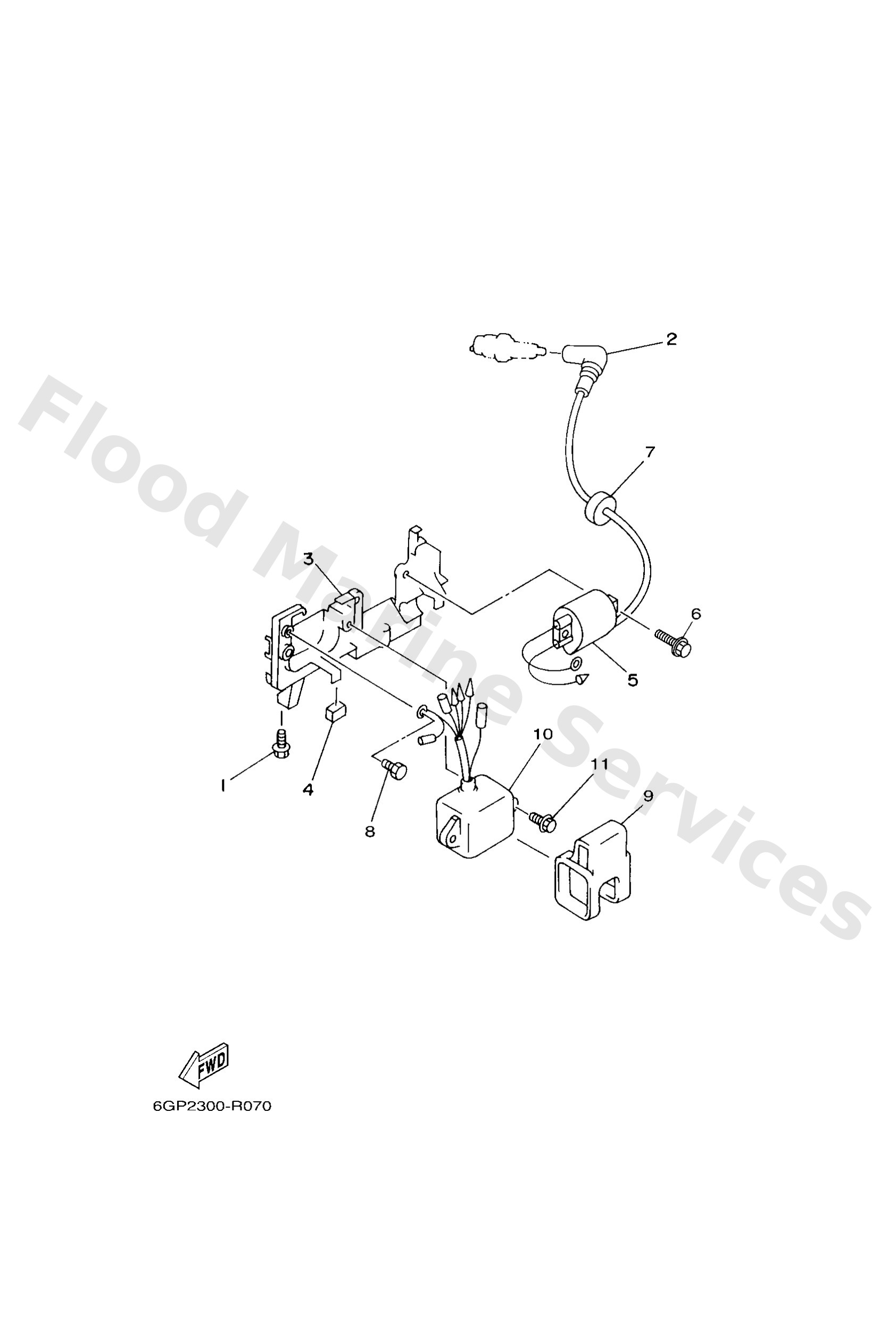

Diagram: ELECTRICAL

Diagram

Parts List

95D9506016
Bolt, flange deep recess
Diagram Reference: 1
Get Part
6E38237021
Plug cap assembly
Diagram Reference: 2
Get Part
6E08231601
Bracket, ignition coil
Diagram Reference: 3
Get Part
6E08231700
Damper
Diagram Reference: 4
Get Part
6E08557002
Ignition coil assembly
Diagram Reference: 5
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Get Part
9048025161
Grommet(656)
Diagram Reference: 7
Get Part
9708006010
Bolt
Diagram Reference: 8
Get Part
6E08554800
Holder, wire harness
Diagram Reference: 9
Get Part
6E08554072
C.d.i. unit assembly
Diagram Reference: 10
Get Part
95D9506020
Bolt, flange deep recess
Diagram Reference: 11
