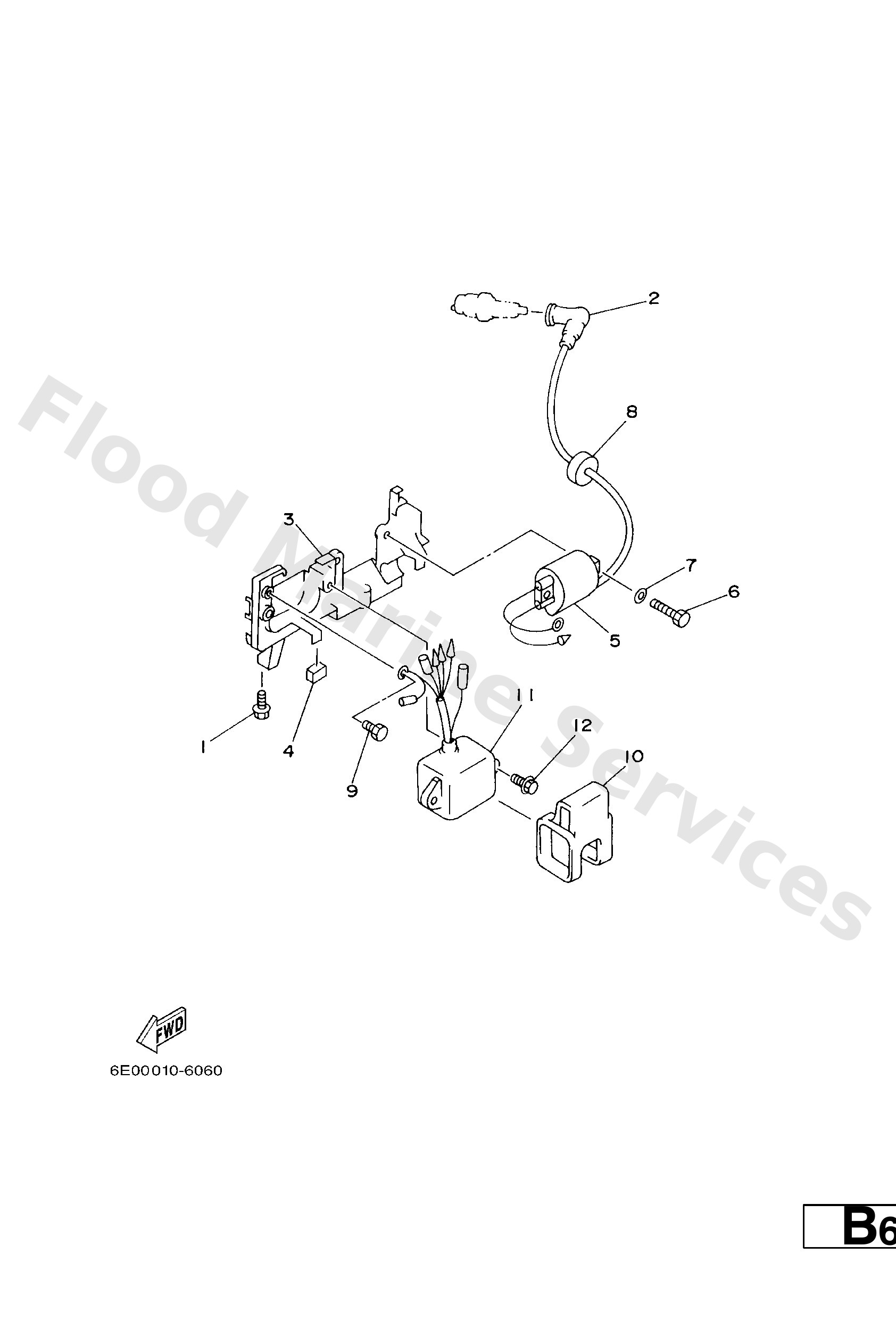

Diagram: ELECTRICAL

Diagram

Parts List

95895−06016
Bolt, flange deep recess
Diagram Reference: 1
Get Part
6G1−82370−21
Plug cap assembly
Diagram Reference: 2
Get Part
6E3−82370−21
Plug cap assembly
Diagram Reference: 2
Get Part
6E0−82316−01−94
Bracket, ignition coil
Diagram Reference: 3
Get Part
6E0−82317−00
Damper
Diagram Reference: 4
Get Part
6E0−85570−00
Ignition coil assembly
Diagram Reference: 5
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 7
Get Part
90480−25161
Grommet(656)
Diagram Reference: 8
Get Part
97080−06010
Bolt
Diagram Reference: 9
Get Part
6E0−85548−00
Holder, wire harness
Diagram Reference: 10
Get Part
6E0−85540−71
C.d.i. unit assembly
Diagram Reference: 11
Get Part
95895−06020
Bolt, flange(jk3)
Diagram Reference: 12
