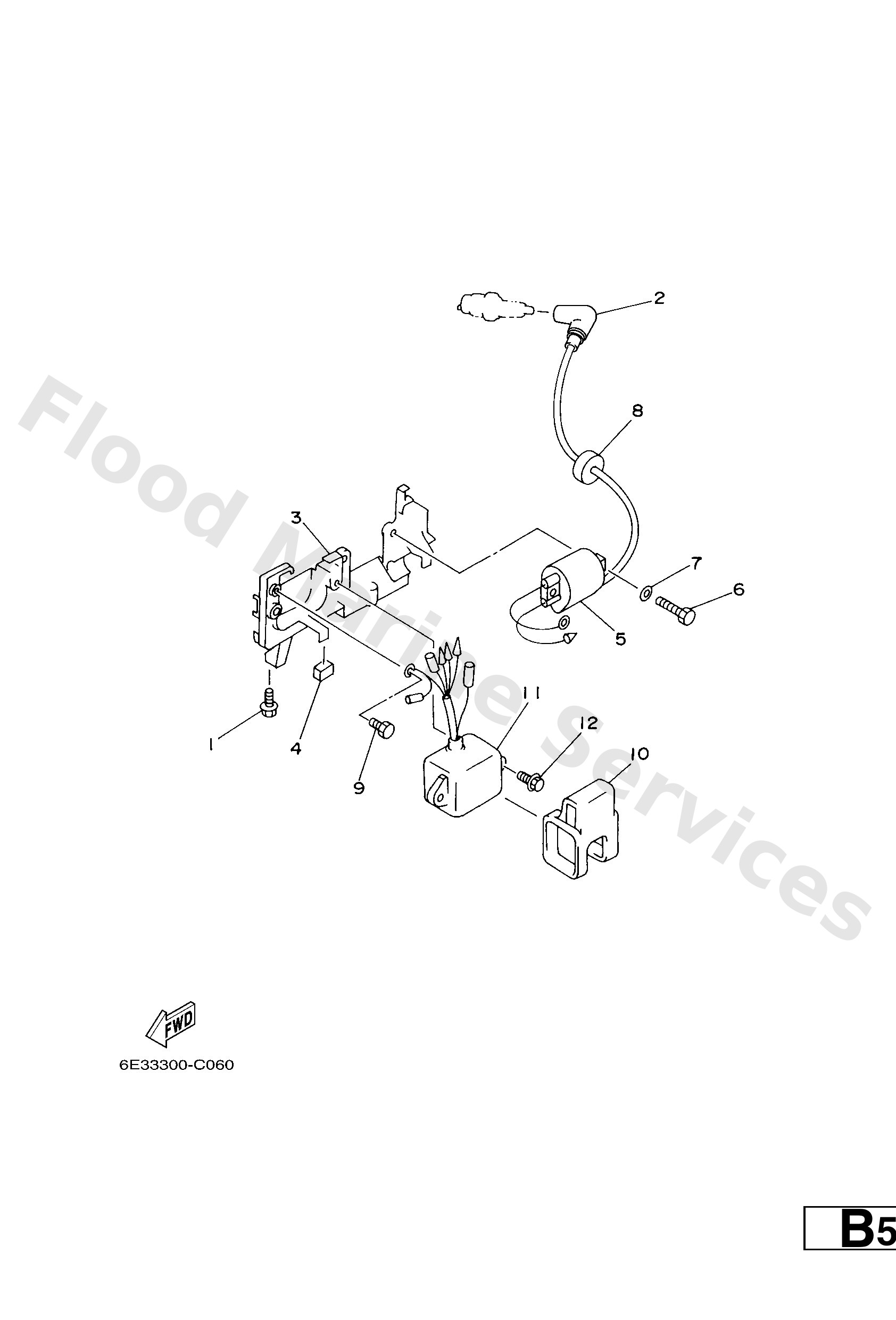

Diagram: ELECTRICAL

Diagram

Parts List

9589506016
Bolt, flange deep recess
Diagram Reference: 1
Get Part
6E38237021
Plug cap assembly
Diagram Reference: 2
Get Part
6E0823160194
Bracket, ignition coil
Diagram Reference: 3
Get Part
6E08231700
Damper
Diagram Reference: 4
Get Part
6E08557000
Ignition coil assembly
Diagram Reference: 5
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
9048025161
Grommet(656)
Diagram Reference: 8
Get Part
9708006010
Bolt
Diagram Reference: 9
Get Part
6E08554800
Holder, wire harness
Diagram Reference: 10
Get Part
6E08554071
C.d.i. unit assembly
Diagram Reference: 11
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 12
Get Part
