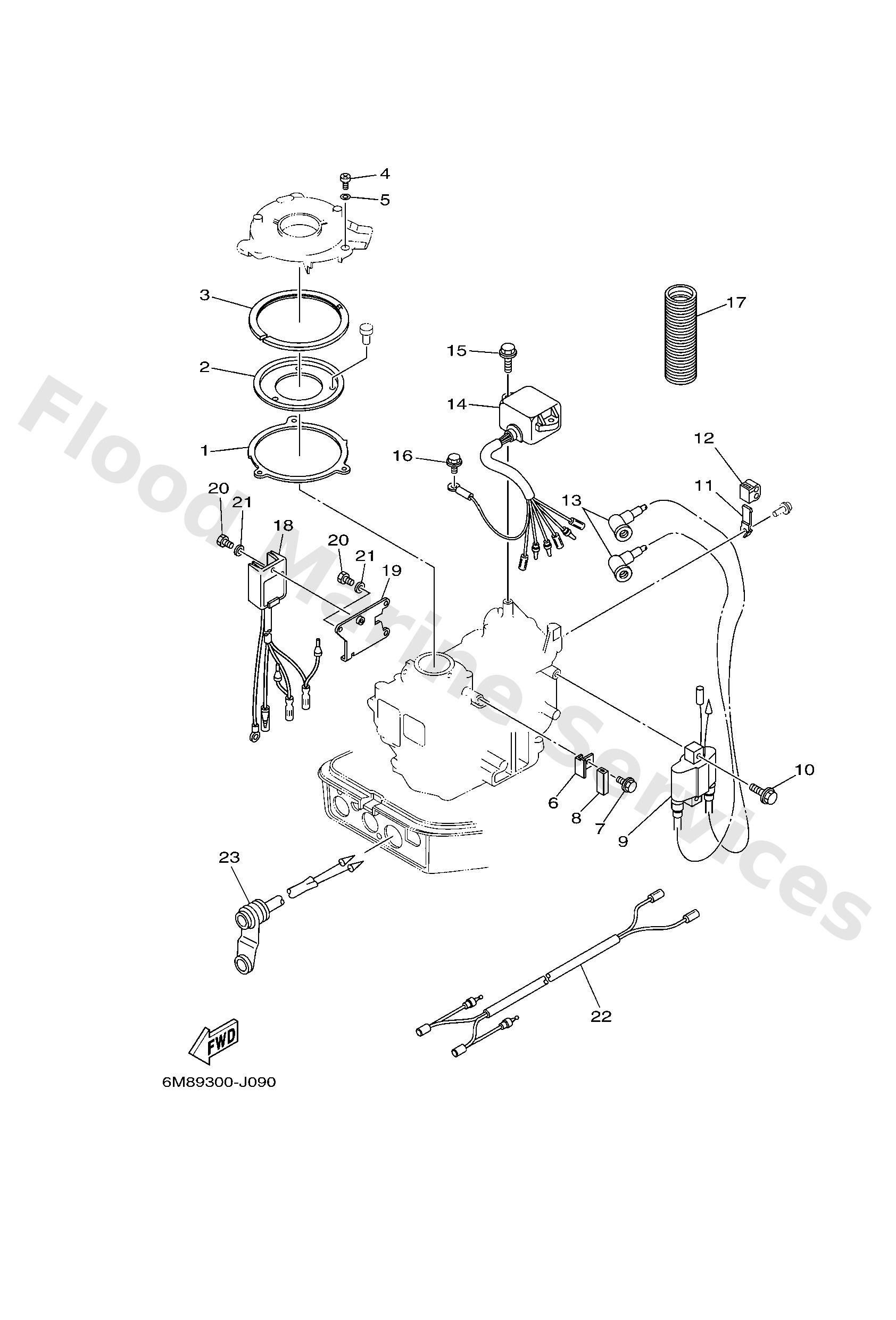

Diagram: ELECTRICAL

Diagram

Parts List

6N0G161100
Retainer, magneto base 1
Diagram Reference: 1
Get Part
6G14161200
Retainer, magneto base
Diagram Reference: 2
Get Part
6N0G161300
Plate, base friction
Diagram Reference: 3
Get Part
9788505010
Screw, pan head(62x)
Diagram Reference: 4
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 5
Get Part
6G14161501
Stopper, magneto base
Diagram Reference: 6
Get Part
9589506010
Bolt, flange(7ht)
Diagram Reference: 7
Get Part
6G14419400
Cap
Diagram Reference: 8
Get Part
6G18557002
Ignition coil assembly
Diagram Reference: 9
Get Part
9589506025
Bolt, flange deep recess
Diagram Reference: 10
Get Part
6M88236100
Clamp, cord
Diagram Reference: 11
Get Part
6M88236200
Clamp, cord 2
Diagram Reference: 12
Get Part
6G18237021
Plug cap assembly
Diagram Reference: 13
Get Part
6968554012
C.d.i. unit assembly
Diagram Reference: 14
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 15
Get Part
6G18355700
Tube
Diagram Reference: 17
Get Part
6J88196000
Rectifier & regulator assembly
Diagram Reference: 18
Get Part
6N0H191500
Plate, regulator fitting
Diagram Reference: 19
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 20
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 21
Get Part
6N0H255310
Extension, wire lead
Diagram Reference: 22
Get Part
6828438100
2p concent 1
Diagram Reference: 23
