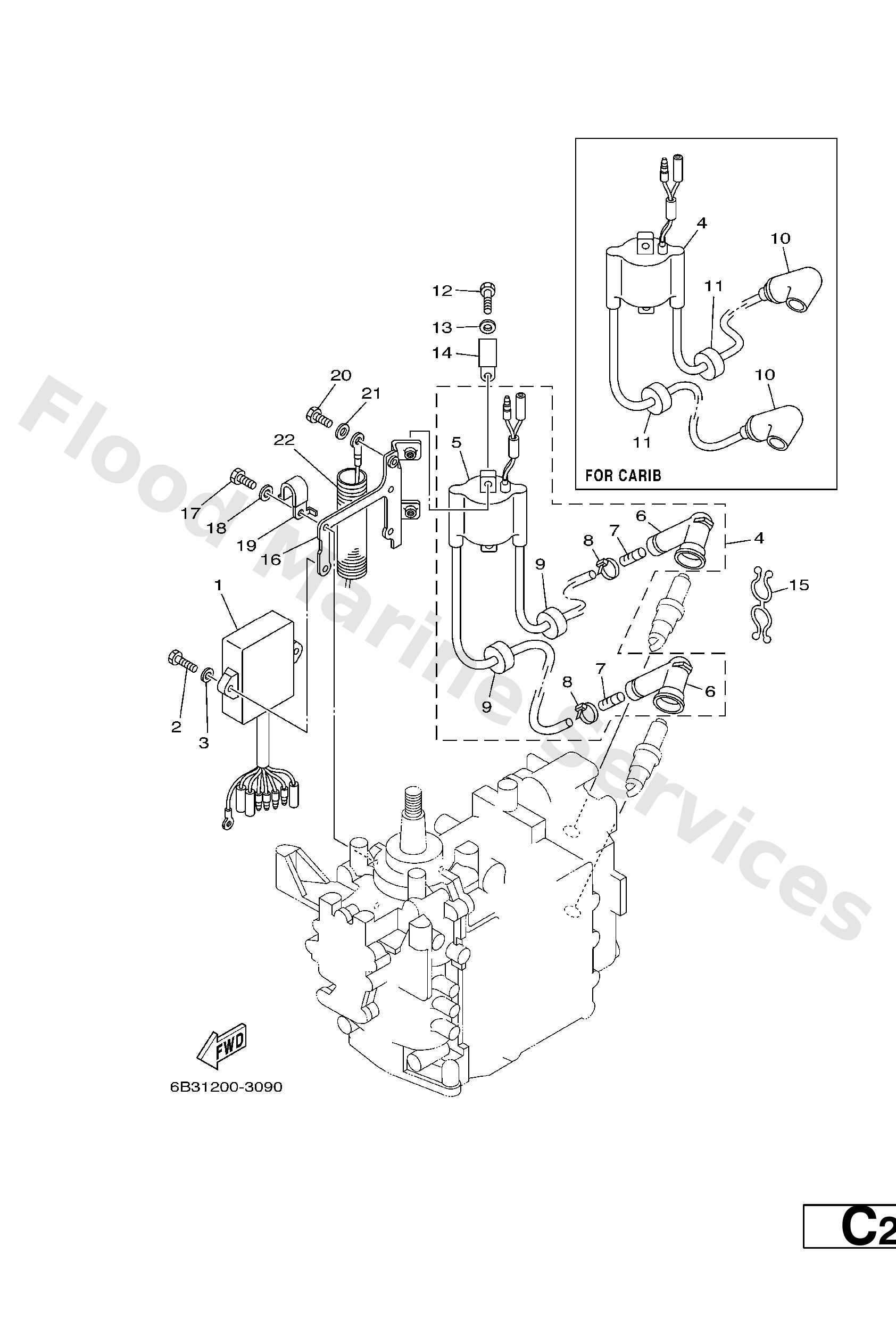

Diagram: ELECTRICAL

Diagram

Parts List

6B4−85540−00
9−
Diagram Reference: 1
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 2
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 3
Get Part
6B4−85530−00
9−
Diagram Reference: 4
Get Part
6B4−85570−00 (CARIB)
Ignition coil assembly
Diagram Reference: 4
Get Part
62E−82371−11 (FOR 6B4−85530−00)
Cap, plug
Diagram Reference: 6
Get Part
62E−8231X−00 (FOR 6B4−85530−00)
Terminal 1
Diagram Reference: 7
Get Part
90465−11M10 (FOR 6B4−85530−00)
Clamp
Diagram Reference: 8
Get Part
90480−25161 (FOR 6B4−85530−00)
Grommet(656)
Diagram Reference: 9
Get Part
6E3−82370−21 (CARIB)
Plug cap assembly
Diagram Reference: 10
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 12
Get Part
90465−06M90
Clamp
Diagram Reference: 14
Get Part
90464−08M02
Clamp
Diagram Reference: 15
Get Part
6B4−82316−00
Bracket, ignition coil
Diagram Reference: 16
Get Part
97095−06014
Bolt(gj3)
Diagram Reference: 17
Get Part
90465−08M99
Clamp
Diagram Reference: 19
Get Part
97095−06010
Bolt
Diagram Reference: 20
Get Part
6N7−83557−00 (I.DIA.) 22MM)
Tube
Diagram Reference: 22
Get Part
