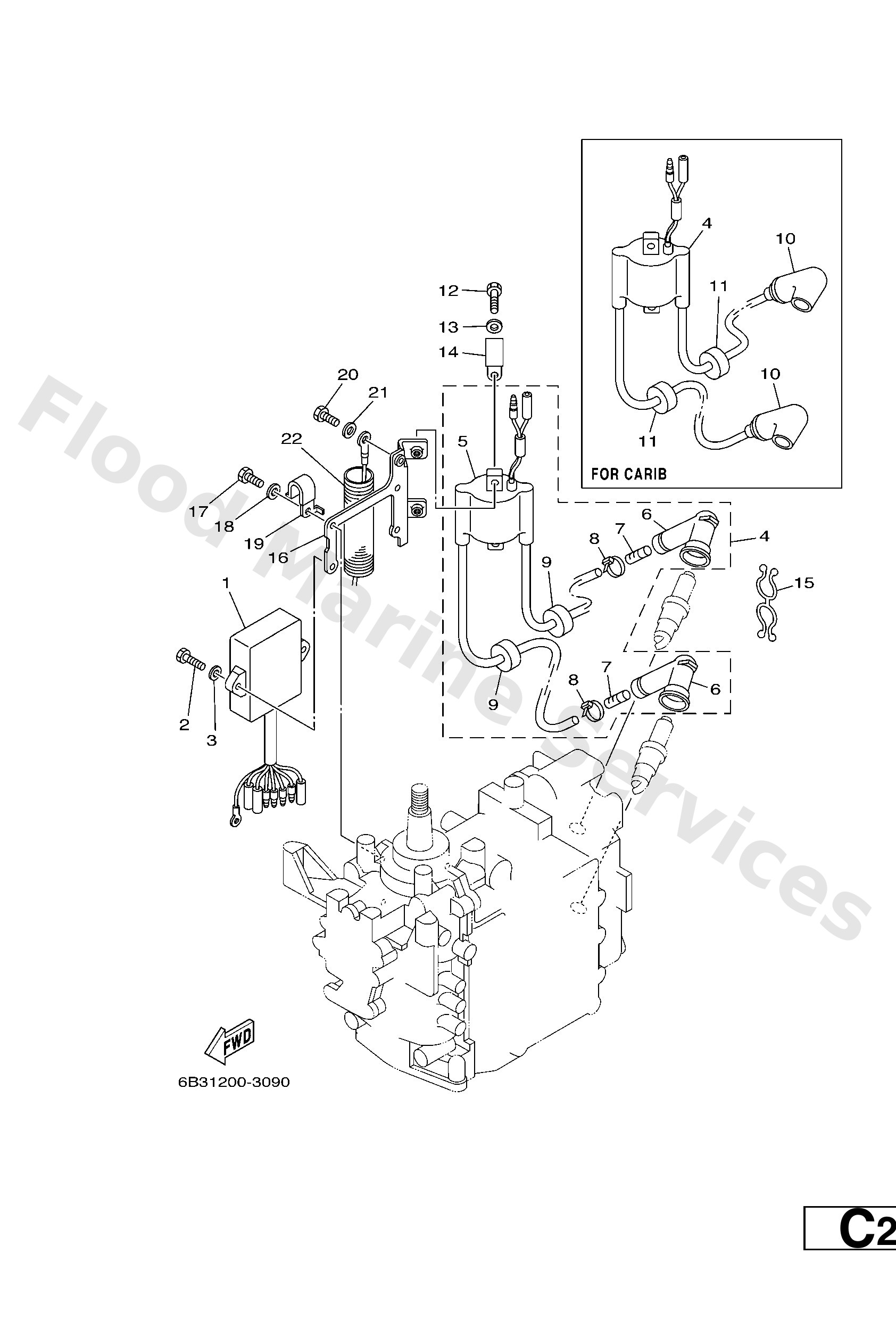

Diagram: ELECTRICAL

Diagram

Parts List

6B48554001
C.d.iunit&bolt
Diagram Reference: 1
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
6B48553000
-
Diagram Reference: 4
Get Part
6B48557000 (FOR CAR)
Ignition coil assembly
Diagram Reference: 4
Get Part
62E8237111 (FOR 6B4-85530-00)
Cap, plug
Diagram Reference: 6
Get Part
62E8231X00 (FOR 6B4-85530-00)
Terminal 1
Diagram Reference: 7
Get Part
9046511M10 (FOR 6B4-85530-00)
Clamp
Diagram Reference: 8
Get Part
9048025161 (FOR 6B4-85530-00)
Grommet(656)
Diagram Reference: 9
Get Part
6E38237021 (FOR CAR)
Plug cap assembly
Diagram Reference: 10
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 12
Get Part
9046506M90
Clamp
Diagram Reference: 14
Get Part
9046408M02
Clamp
Diagram Reference: 15
Get Part
6B48231600
Bracket, ignition coil
Diagram Reference: 16
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 17
Get Part
9046508M99
Clamp
Diagram Reference: 19
Get Part
9709506010
Bolt
Diagram Reference: 20
Get Part
6N78355700
Tube
Diagram Reference: 22
Get Part
