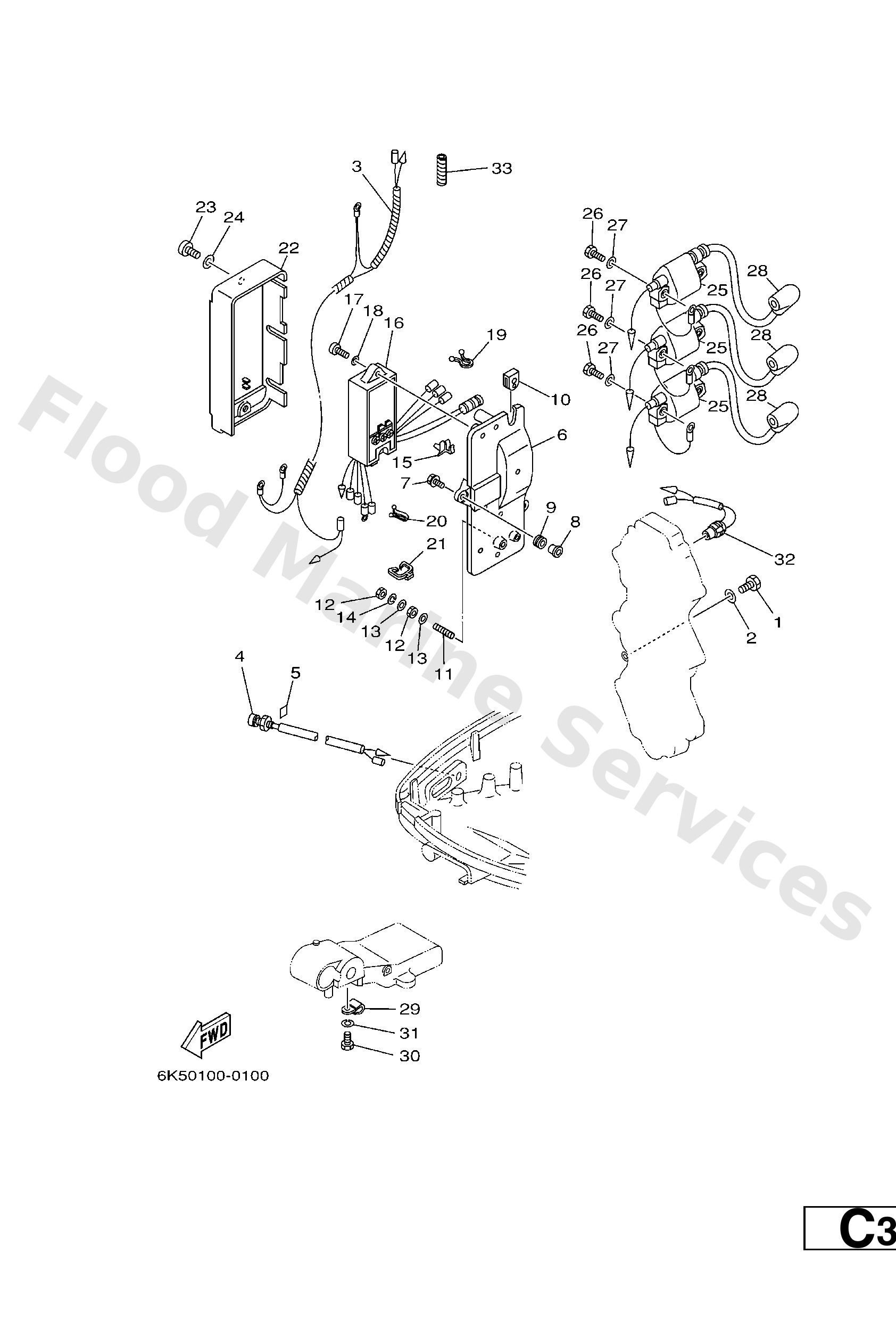

Diagram: ELECTRICAL
Parts List
Bolt(gh1)
Diagram Reference: 1
Washer, plain (646)
Diagram Reference: 2
Wire, lead
Diagram Reference: 3
Overheat warning lamp
Diagram Reference: 4
Mark, Signal Lamp
Diagram Reference: 5
Bracket
Diagram Reference: 6
Bolt (6e0)
Diagram Reference: 7
Coller (6e9)
Diagram Reference: 8
Grommet (6e9)
Diagram Reference: 9
Grommet
Diagram Reference: 10
Bolt, stud (688)
Diagram Reference: 11
Nut
Diagram Reference: 12
Ybs66-6 washer, plain
Diagram Reference: 13
Washer(6a1)
Diagram Reference: 14
Clamp (6h3)
Diagram Reference: 15
C.d.i. unit assembly
Diagram Reference: 16
Screw, pan head(6b0)
Diagram Reference: 17
Washer, plain (646)
Diagram Reference: 18
Clamp
Diagram Reference: 19
Clamp(6j8)
Diagram Reference: 20
Clamp (6h3)
Diagram Reference: 21
Cover, terminal
Diagram Reference: 22
Screw, pan head(62j)
Diagram Reference: 23
Washer, plain (646)
Diagram Reference: 24
Ignition coil assembly
Diagram Reference: 25
Bolt(62y)
Diagram Reference: 26
Plug cap assembly
Diagram Reference: 28
Clamp
Diagram Reference: 29
Washer(6a1)
Diagram Reference: 31
Thermo switch assembly
Diagram Reference: 32
Tube (6e5)
Diagram Reference: 33
