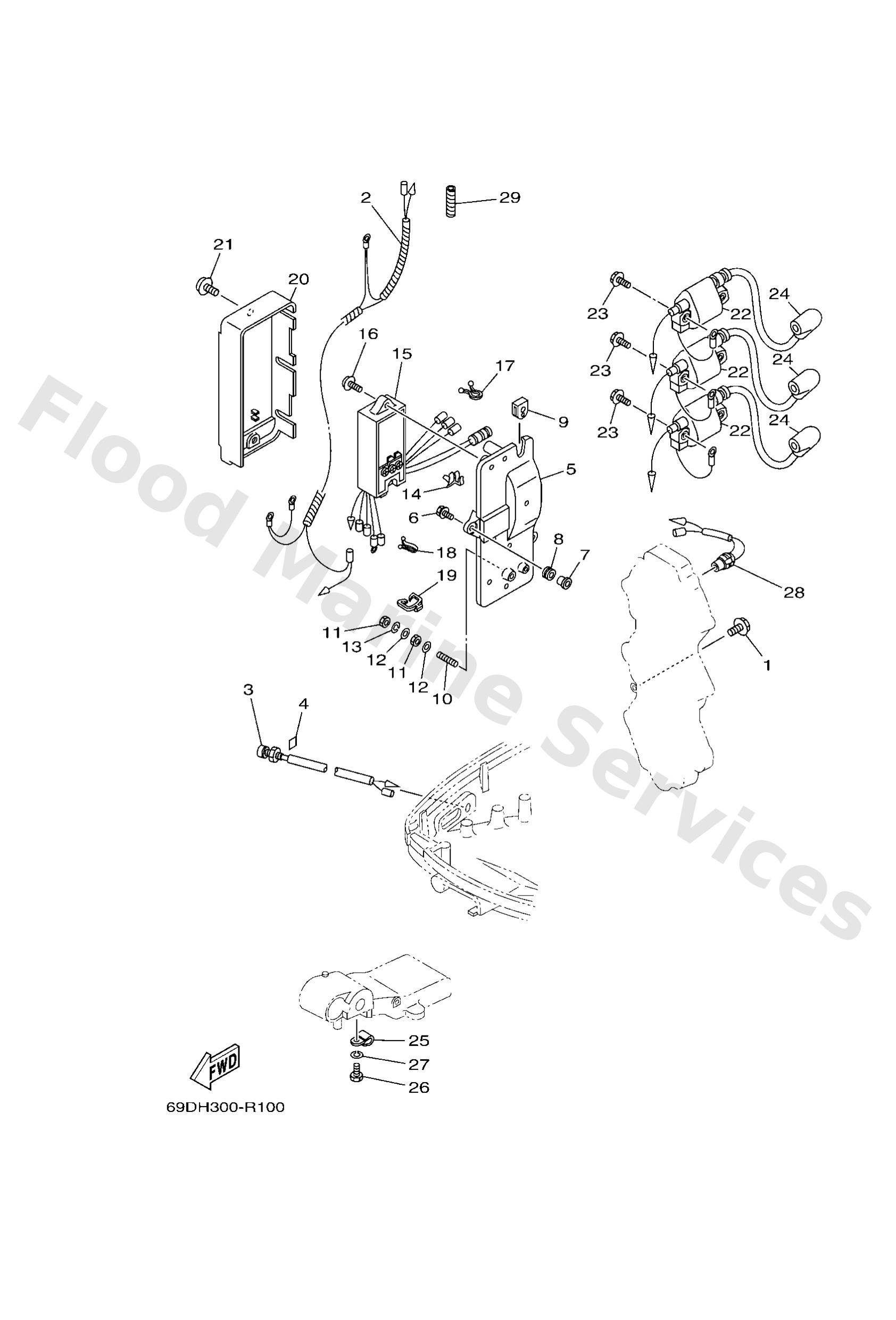

Diagram: ELECTRICAL
Parts List
Bolt, with washer(6g4)
Diagram Reference: 1
Wire, lead
Diagram Reference: 2
Overheat warning lamp
Diagram Reference: 3
Mark, Signal Lamp
Diagram Reference: 4
Bracket
Diagram Reference: 5
Bolt (6e0)
Diagram Reference: 6
Coller (6e9)
Diagram Reference: 7
Grommet (6e9)
Diagram Reference: 8
Grommet
Diagram Reference: 9
Bolt, stud (688)
Diagram Reference: 10
Nut
Diagram Reference: 11
Ybs66-6 washer, plain
Diagram Reference: 12
Washer(6a1)
Diagram Reference: 13
Clamp (6h3)
Diagram Reference: 14
C.d.i. unit assembly
Diagram Reference: 15
Screw, with washer
Diagram Reference: 16
Clamp
Diagram Reference: 17
Clamp(6j8)
Diagram Reference: 18
Clamp (6h3)
Diagram Reference: 19
Cover, terminal
Diagram Reference: 20
Screw, with washer(6h3)
Diagram Reference: 21
Ignition coil assembly
Diagram Reference: 22
Bolt, with washer(61b)
Diagram Reference: 23
Plug cap assembly
Diagram Reference: 24
Clamp
Diagram Reference: 25
Bolt(gh1)
Diagram Reference: 26
Washer(6a1)
Diagram Reference: 27
Thermo switch assembly
Diagram Reference: 28
Tube (6e5)
Diagram Reference: 29
