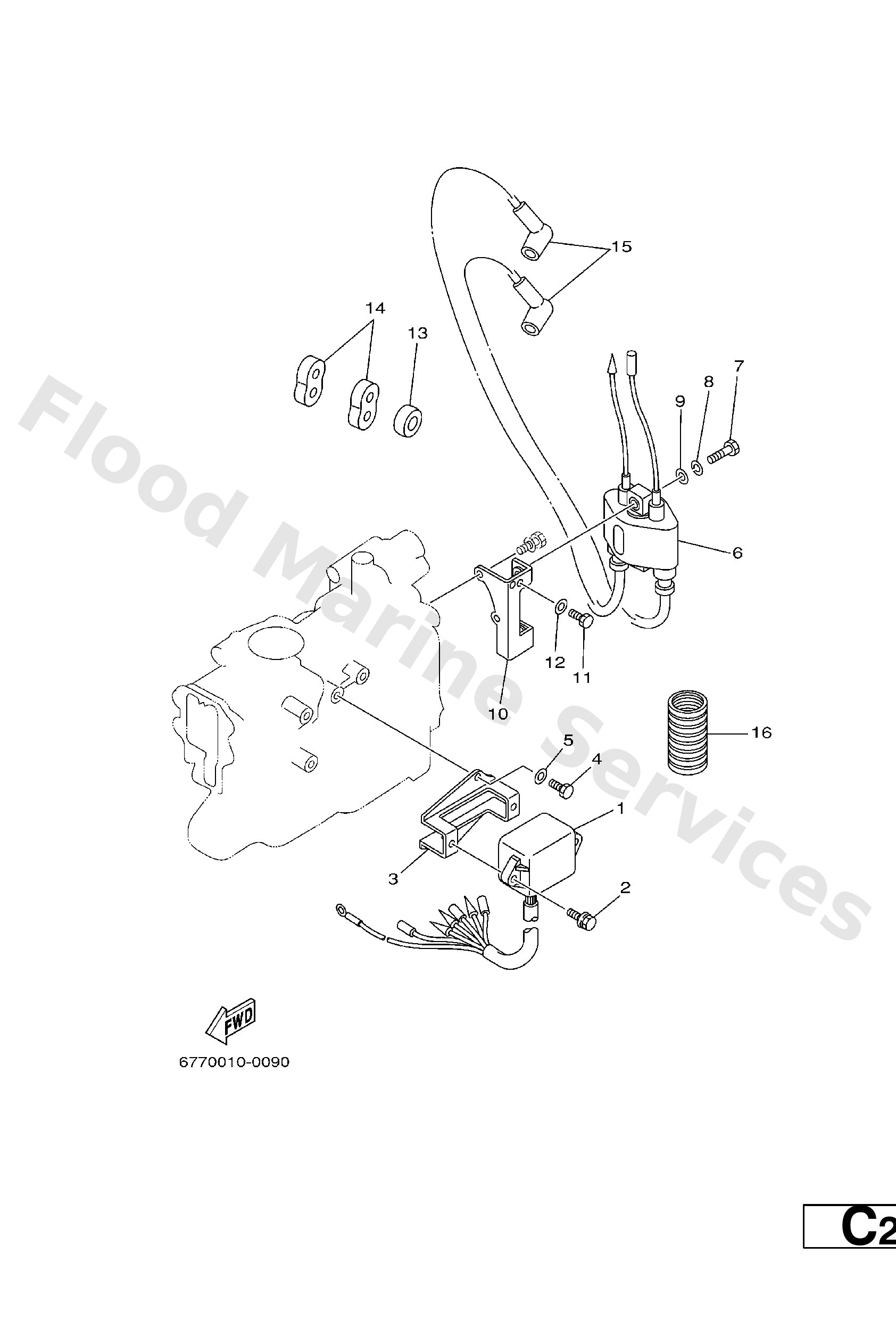

Diagram: ELECTRICAL

Diagram

Parts List

696−85540−11
C.d.i. unit assembly
Diagram Reference: 1
Get Part
90119−06M19
Bolt, With Washer
Diagram Reference: 2
Get Part
6K3−85525−01
Cover
Diagram Reference: 3
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 5
Get Part
6G1−85570−01
Ignition coil assembly
Diagram Reference: 6
Get Part
97095−06025
Bolt
Diagram Reference: 7
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 8
Get Part
6K3−85542−01
Bracket
Diagram Reference: 10
Get Part
97095−06010
Bolt
Diagram Reference: 11
Get Part
90480−25161
Grommet(656)
Diagram Reference: 13
Get Part
90480−25M18
Grommet
Diagram Reference: 14
Get Part
682−82370−00
Plug cap assembly
Diagram Reference: 15
Get Part
6E3−82370−21 (FOR CARIB)
Plug cap assembly
Diagram Reference: 15
Get Part
6K3−83557−00
Tube
Diagram Reference: 16
Get Part
