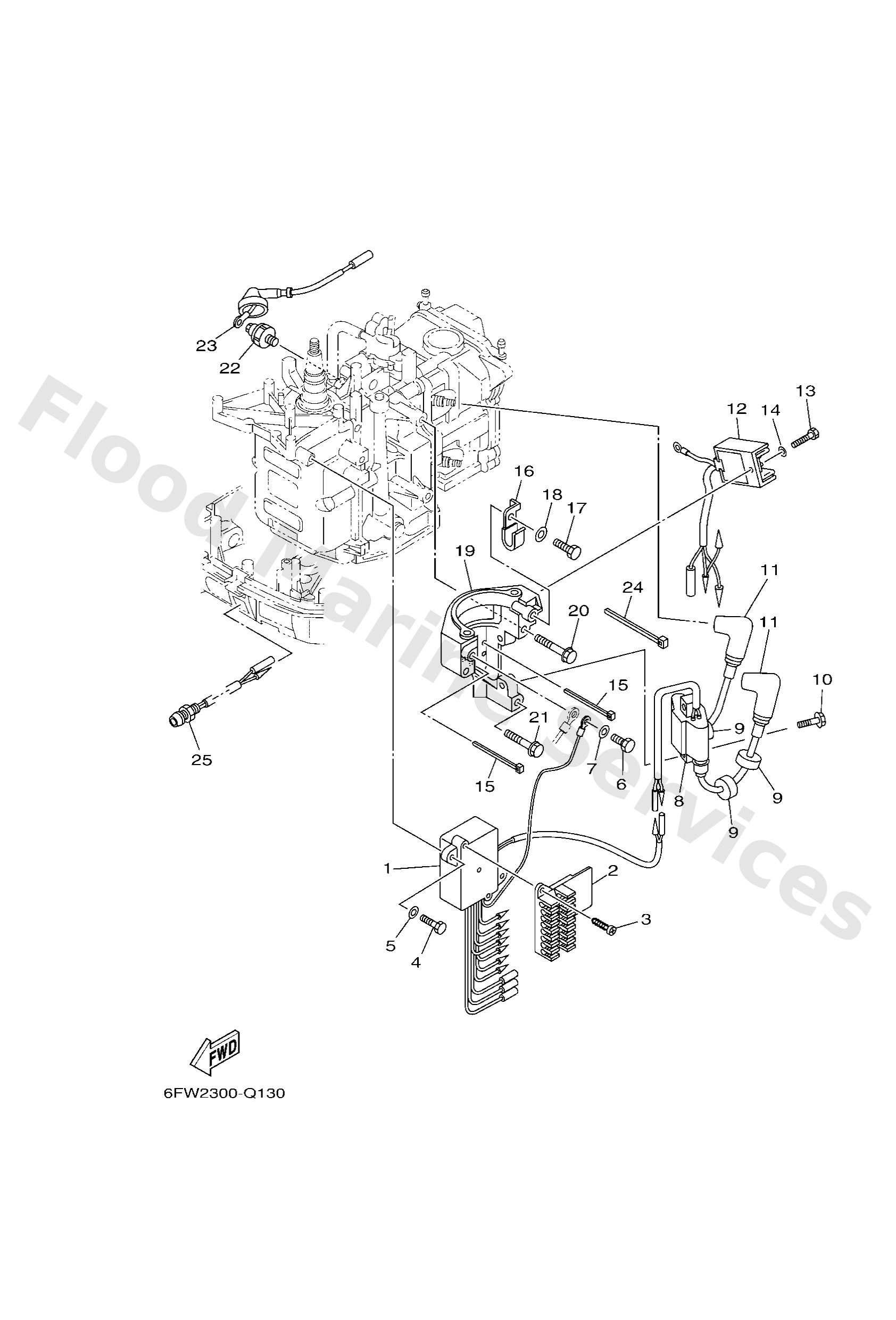

Parts List
C.d.i. unit assembly
Diagram Reference: 1
Clamp, coupler
Diagram Reference: 2
Screw, pan head tapping
Diagram Reference: 3
Bolt(7u8)
Diagram Reference: 4
Washer, plain (646)
Diagram Reference: 14
Bolt(gh1)
Diagram Reference: 13
Ignition coil assembly
Diagram Reference: 8
Grommet
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 10
Plug cap assembly
Diagram Reference: 11
Rectifier & regulator assembly
Diagram Reference: 12
Clamp
Diagram Reference: 15
Clamp
Diagram Reference: 16
Bracket, starting motor
Diagram Reference: 19
Bolt, with washer
Diagram Reference: 20
Bolt, with washer
Diagram Reference: 21
Oil pressure switch assembly
Diagram Reference: 22
Wire, lead 2
Diagram Reference: 23
Emergency signal light assembly
Diagram Reference: 25
