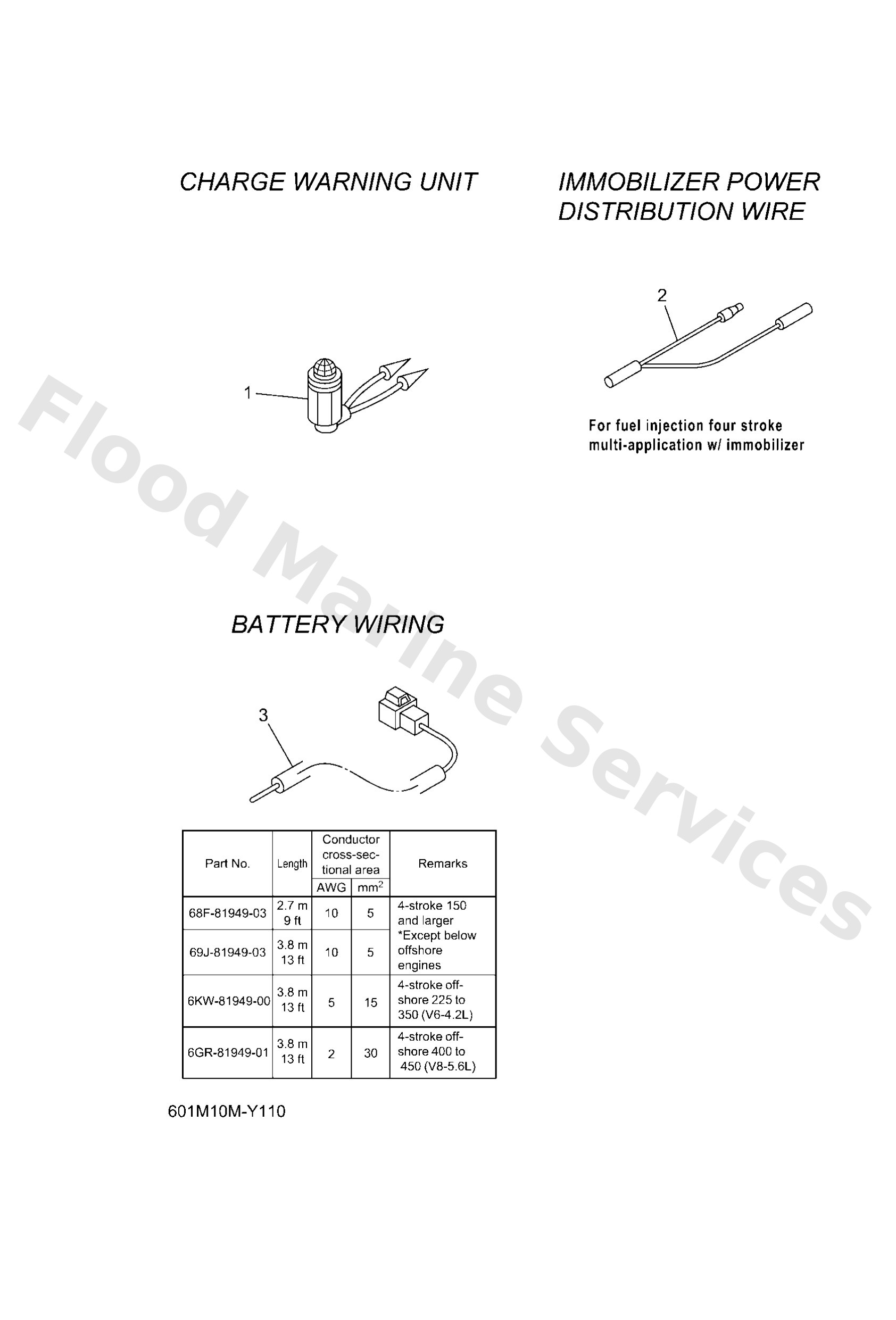

Diagram: ELECTRICAL

Diagram

Parts List

6638430101 (12V)
Pilot lamp ass'y
Diagram Reference: 1
Get Part
6H58131500
Wire, lead
Diagram Reference: 2
Get Part
68F8194903 (UR)
Wire, lead
Diagram Reference: 3
Get Part
69J8194903 (UR)
Wire, lead (isolator, 3.8m )
Diagram Reference: 3
Get Part
6KW8194900 (UR)
Wire, lead (isolator cable)
Diagram Reference: 3
Get Part
6GR8194901 (UR)
Wire, lead
Diagram Reference: 3
Get Part
