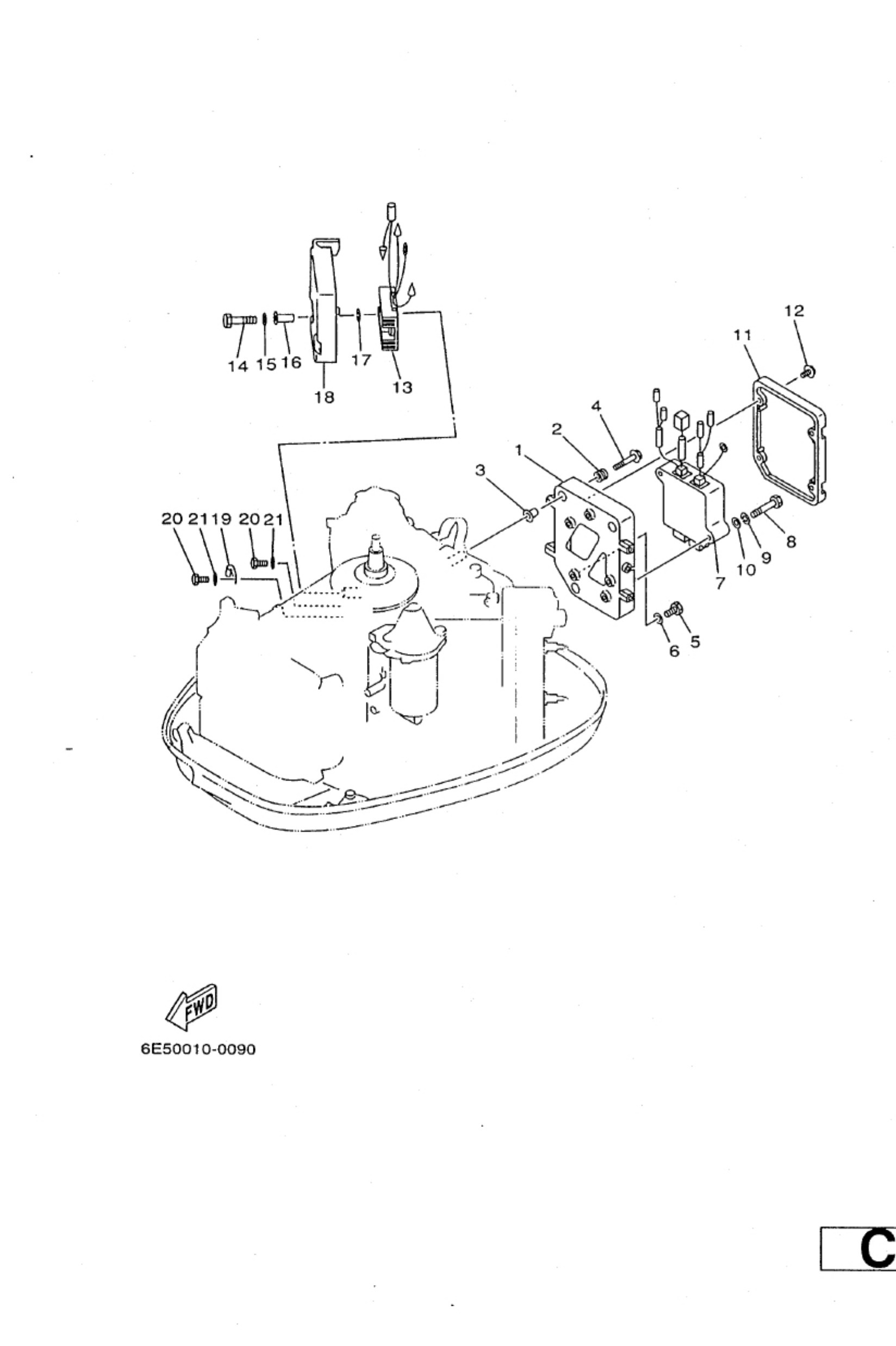

Diagram: ELECTRICAL 1

Diagram

Parts List

6N785542011S
Bracket
Diagram Reference: 1
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 2
Get Part
6244254200
Collar
Diagram Reference: 3
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 4
Get Part
6E58554000
C.d.i. unit assembly
Diagram Reference: 7
Get Part
9788006040
Screw pan head
Diagram Reference: 8
Get Part
9299006100
Washer(6a1)
Diagram Reference: 9
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 10
Get Part
9015906M11
Screw, with washer(6l2)
Diagram Reference: 12
Get Part
6H08196000
Rectifier & regulator assembly
Diagram Reference: 13
Get Part
9701306045
Bolt, hexagon
Diagram Reference: 14
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 15
Get Part
9020106M0S
Washer, Plate
Diagram Reference: 17
Get Part
6E58196100
Cover
Diagram Reference: 18
Get Part
9046506M86
Clamp
Diagram Reference: 19
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 20
Get Part
