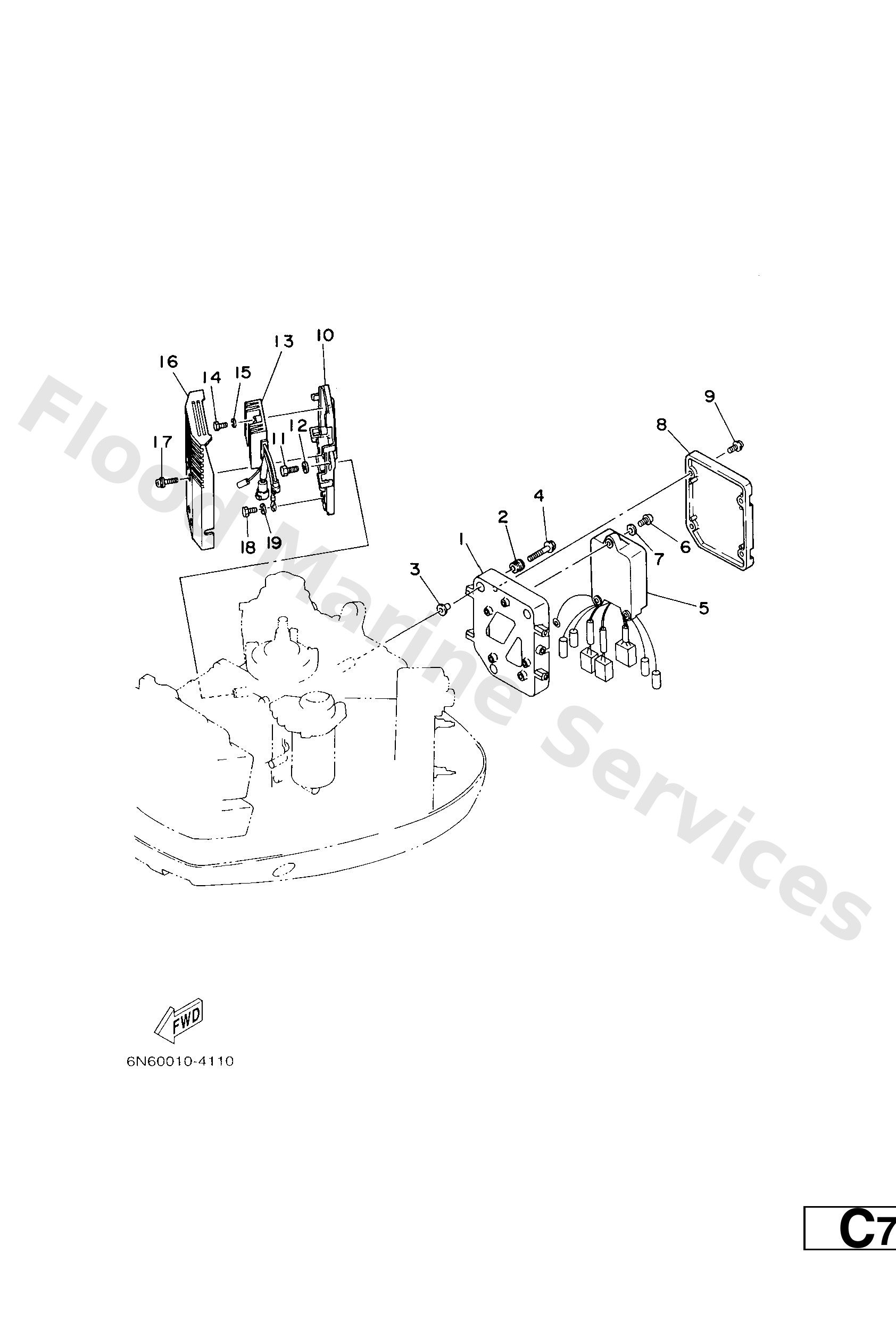

Diagram: ELECTRICAL 1

Diagram

Parts List

6N785542011S
Bracket
Diagram Reference: 1
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 2
Get Part
9038706119
Collar
Diagram Reference: 3
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 4
Get Part
6N78554001
C.d.i. unit assembly
Diagram Reference: 5
Get Part
9788006020
Screw pan head
Diagram Reference: 6
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 7
Get Part
6N78553700
Cover
Diagram Reference: 8
Get Part
9015906M11
Screw, with washer(6l2)
Diagram Reference: 9
Get Part
6N7819480094
Bracket
Diagram Reference: 10
Get Part
9701306016
Bolt, hexagon deep recess
Diagram Reference: 11
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 12
Get Part
6R38196000
Rectifier & regulator assembly
Diagram Reference: 13
Get Part
9701306025
Bolt(62y)
Diagram Reference: 14
Get Part
6R38194200
Cover
Diagram Reference: 16
Get Part
9015906M08
Screw, with washer(6k7)
Diagram Reference: 17
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 18
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 19
Get Part
