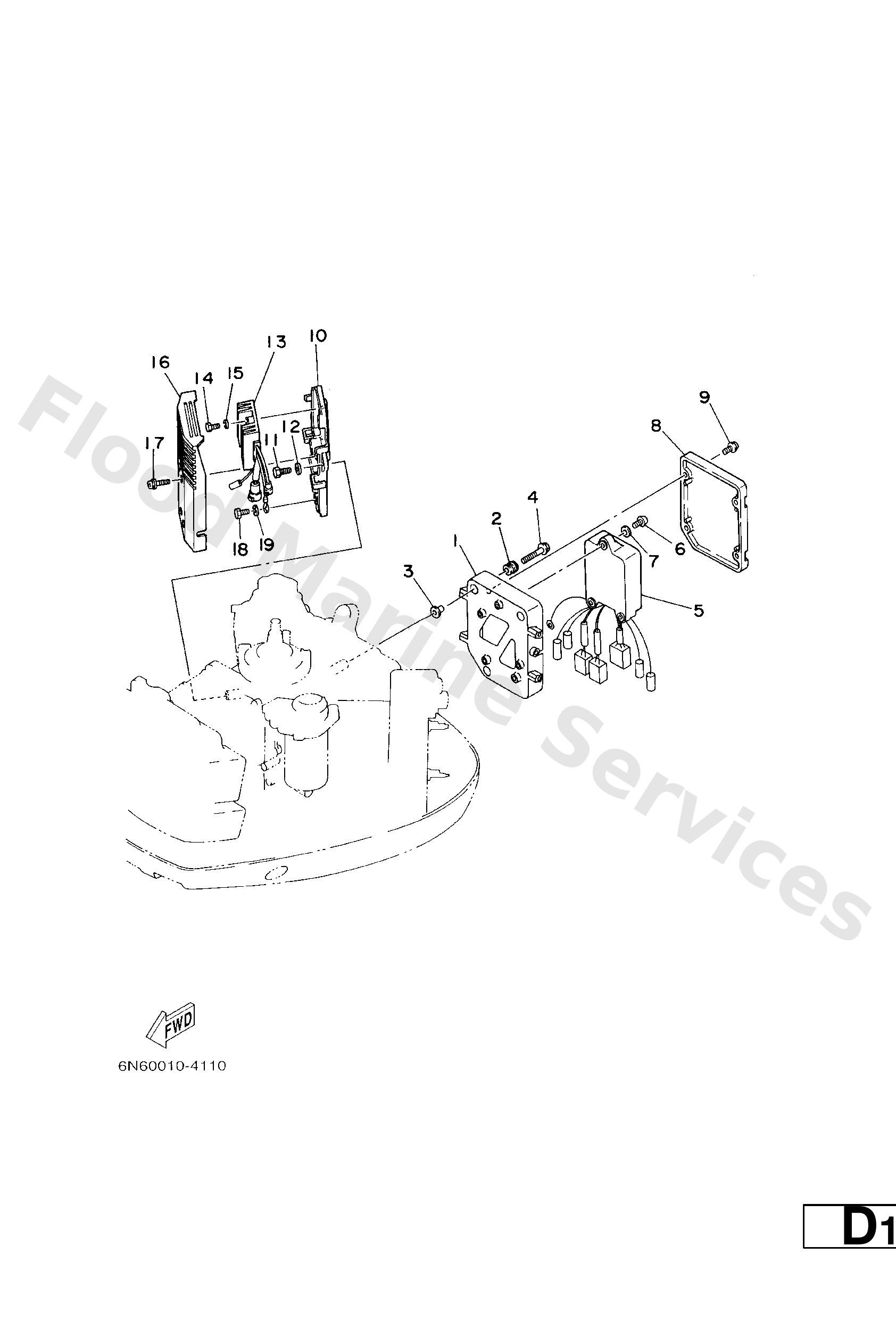

Diagram: ELECTRICAL 1

Diagram

Parts List

6N7−85542−01−1S
Bracket
Diagram Reference: 1
Get Part
6A0−82317−00
Damper, ignition coil
Diagram Reference: 2
Get Part
624−42542−00
Collar
Diagram Reference: 3
Get Part
90119−06M59
Bolt, with washer
Diagram Reference: 4
Get Part
6N7−85540−01
C.d.i. unit assembly
Diagram Reference: 5
Get Part
97880−06020
Screw pan head
Diagram Reference: 6
Get Part
92990−06600
Washer, plain (646)
Diagram Reference: 7
Get Part
6N7−85537−00
Cover
Diagram Reference: 8
Get Part
90159−06M11
Screw, with washer(6l2)
Diagram Reference: 9
Get Part
6N7−81948−00−94
Bracket
Diagram Reference: 10
Get Part
97013−06016
Bolt, hexagon deep recess
Diagram Reference: 11
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 12
Get Part
6R3−81960−00
Rectifier & regulator assembly
Diagram Reference: 13
Get Part
97013−06025
Bolt(62y)
Diagram Reference: 14
Get Part
6R3−81942−00
Cover
Diagram Reference: 16
Get Part
90159−06M08
Screw, with washer(6k7)
Diagram Reference: 17
Get Part
97013−06012
Bolt(gh1)
Diagram Reference: 18
Get Part
