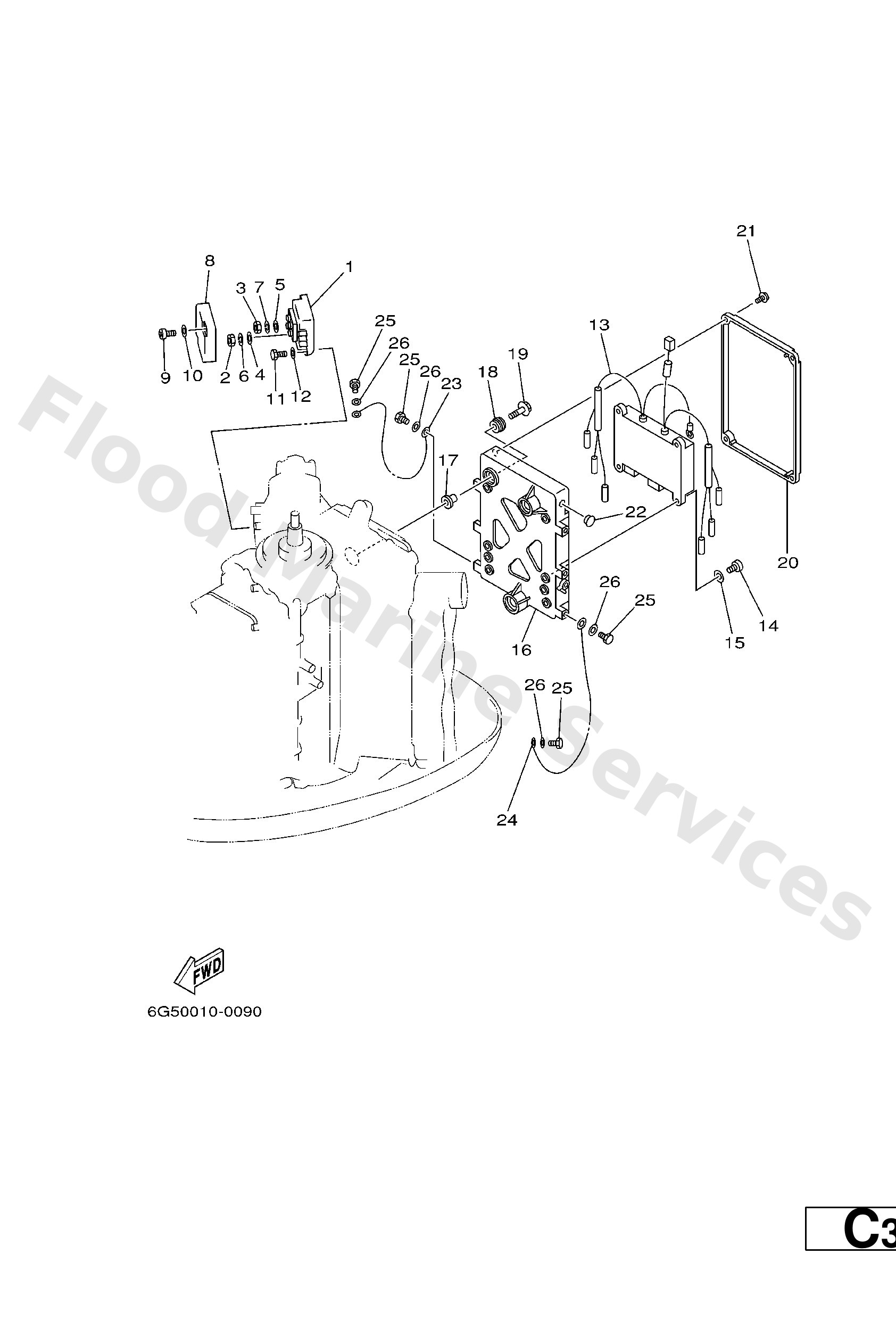

Diagram: ELECTRICAL 1

Diagram

Parts List

6G581960A0
Rectifier & regulator assembly
Diagram Reference: 1
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 2
Get Part
9538006600
Nut(661)
Diagram Reference: 3
Get Part
9299005200
Ybs66-5 washer, plain
Diagram Reference: 4
Get Part
9299006200
Ybs66-6 washer, plain
Diagram Reference: 5
Get Part
9290305100
Ybs67-5 washer, spring
Diagram Reference: 6
Get Part
9290306100
Washer(6a1)
Diagram Reference: 7
Get Part
6888196101
Cover
Diagram Reference: 8
Get Part
9788505025
Screw, pan head(62j)
Diagram Reference: 9
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 10
Get Part
9701306020
Bolt(62y)
Diagram Reference: 11
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 12
Get Part
6G68554000
C.d.i. unit assembly
Diagram Reference: 13
Get Part
9788006020
Screw pan head
Diagram Reference: 14
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 15
Get Part
6R385542031S
Bracket
Diagram Reference: 16
Get Part
9038706M03
Collar (676)
Diagram Reference: 17
Get Part
9048009M12
Grommet (6a0)
Diagram Reference: 18
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 19
Get Part
6R38553700
Cover
Diagram Reference: 20
Get Part
9015906M11
Screw, with washer(6l2)
Diagram Reference: 21
Get Part
9048012M25
Grommet (6e9)
Diagram Reference: 22
Get Part
6628251900
Wire, earth lead
Diagram Reference: 23
Get Part
6R38251900
Wire, earth lead
Diagram Reference: 24
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 25
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 26
