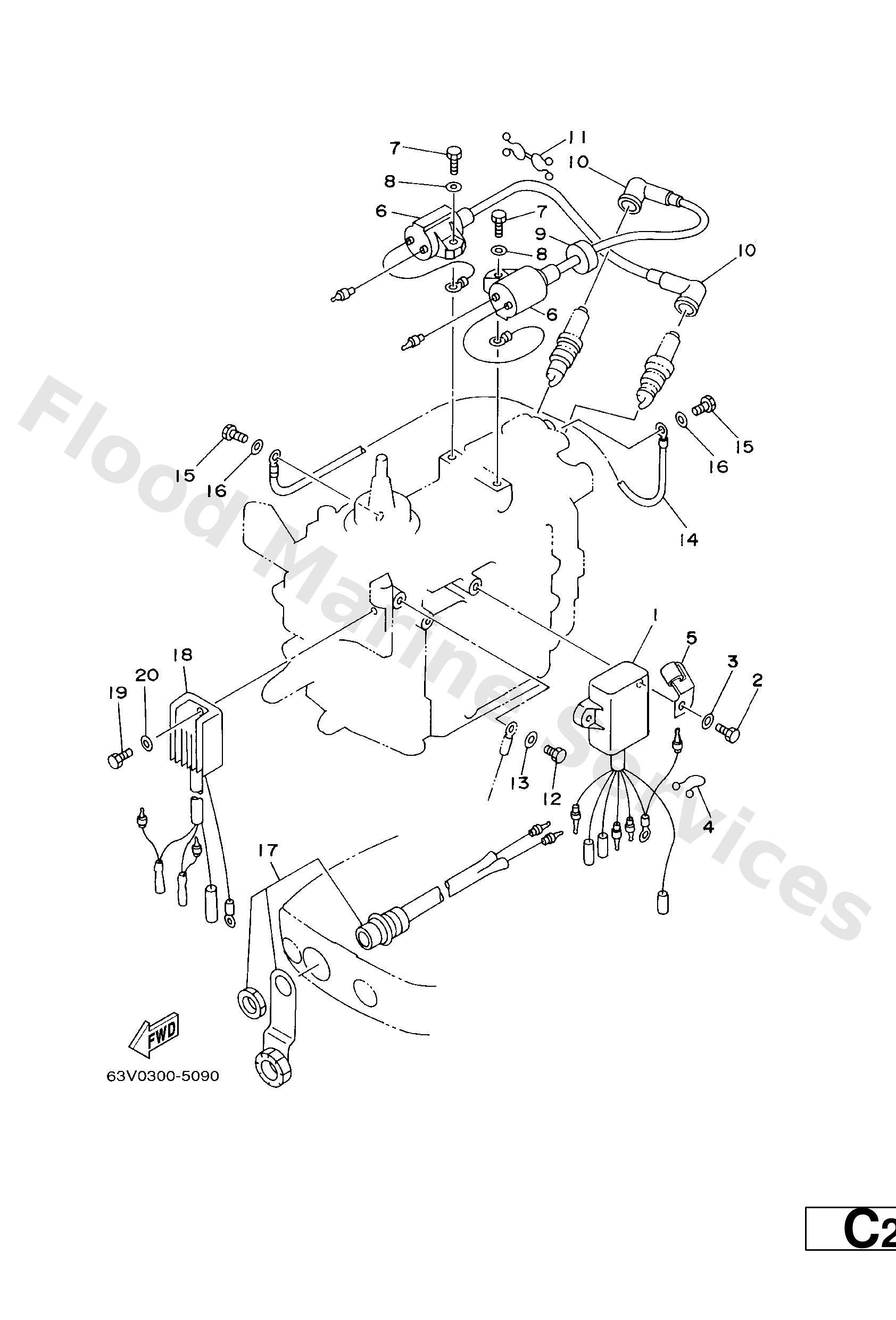

Diagram: ELECTRICAL 1

Diagram

Parts List

63V--85540--01
C.d.i. unit assembly
Diagram Reference: 1
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 2
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 3
Get Part
90464--15M11
Clamp (3y2)
Diagram Reference: 4
Get Part
90465--08M61
Clamp(63v)
Diagram Reference: 5
Get Part
63V--85570--00
Ignition coil assembly
Diagram Reference: 6
Get Part
97095--06018
Bolt (fj0)
Diagram Reference: 7
Get Part
90480--25161
Grommet(656)
Diagram Reference: 9
Get Part
6E3--82370--21
Plug cap assembly
Diagram Reference: 10
Get Part
90464--08M02
Clamp
Diagram Reference: 11
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 12
Get Part
662--82519--00
Wire, earth lead
Diagram Reference: 14
Get Part
682--84381--00
2p concent 1
Diagram Reference: 17
Get Part
6J8--81960--00
Rectifier & regulator assembly
Diagram Reference: 18
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 19
Get Part
