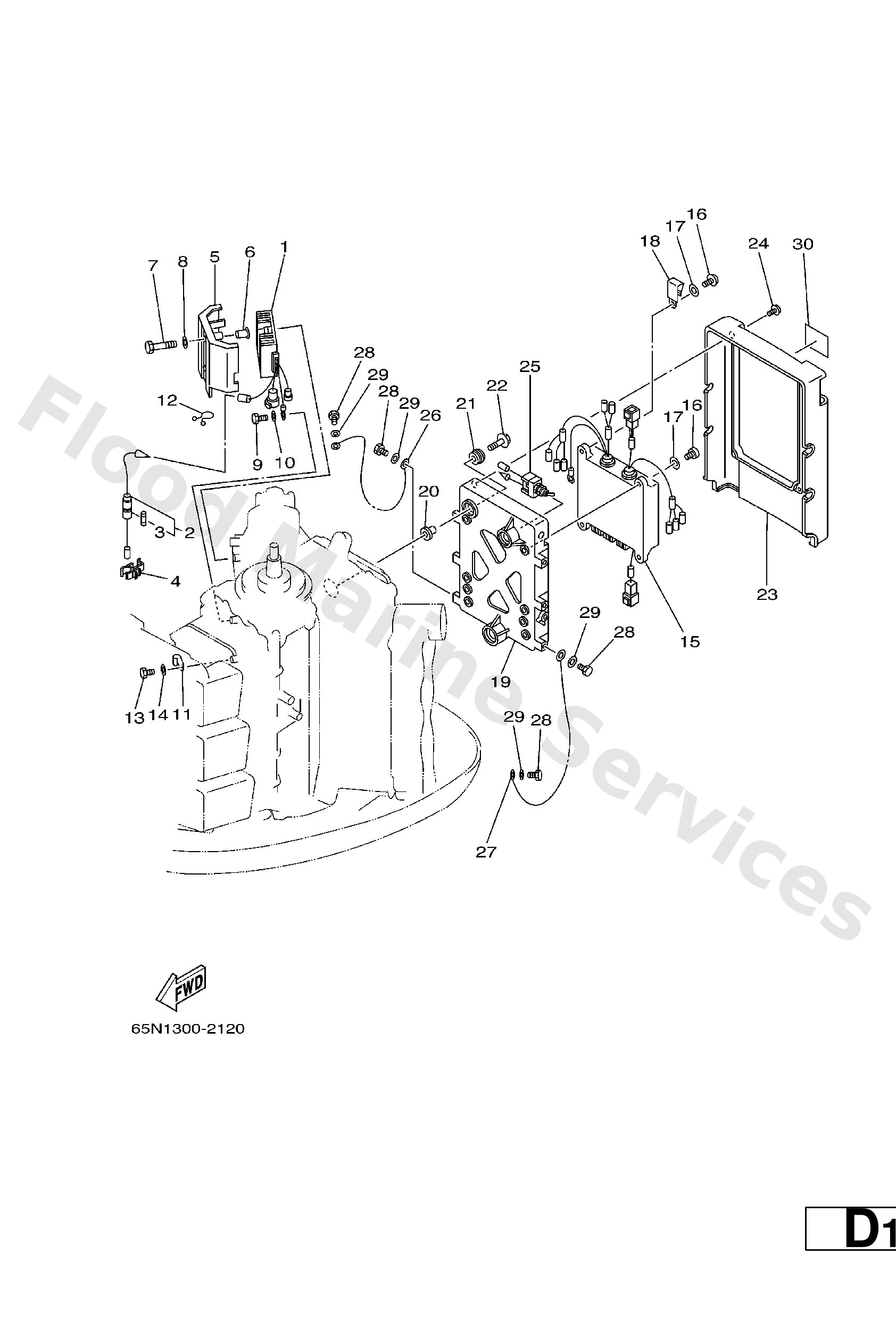

Diagram: ELECTRICAL 1

Diagram

Parts List

6R3--81960--10
Rectifier & regulator assembly
Diagram Reference: 1
Get Part
6R3--82150--00
Fuse holder assembly
Diagram Reference: 2
Get Part
705--82151--00
Fuse (30a)
Diagram Reference: 3
Get Part
6G5--82152--00
Holder, fuse
Diagram Reference: 4
Get Part
64D--81942--00
Cover
Diagram Reference: 5
Get Part
90387--06M66
Collar (6h4)
Diagram Reference: 6
Get Part
97013--06055
Bolt(64d)
Diagram Reference: 7
Get Part
92903--06600
Washer, plain (646)
Diagram Reference: 8
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 9
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 10
Get Part
90465--06M88
Clamp
Diagram Reference: 11
Get Part
90464--15M11
Clamp (3y2)
Diagram Reference: 12
Get Part
64E8554001
C.d.i. unit assembly
Diagram Reference: 15
Get Part
97880--06020
Screw pan head
Diagram Reference: 16
Get Part
92990--06600
Washer, plain (646)
Diagram Reference: 17
Get Part
90465--05M87
Clamp
Diagram Reference: 18
Get Part
6R3--85542--03--1S
Bracket
Diagram Reference: 19
Get Part
90387--06M03
Collar (676)
Diagram Reference: 20
Get Part
90480--09M12
Grommet (6a0)
Diagram Reference: 21
Get Part
90119--06M61
Bolt, with washer
Diagram Reference: 22
Get Part
64D--85537--00
Cover
Diagram Reference: 23
Get Part
90159--06M11
Screw, with washer(6l2)
Diagram Reference: 24
Get Part
6R3--8259E--00
Switch assembly
Diagram Reference: 25
Get Part
662--82519--00
Wire, earth lead
Diagram Reference: 26
Get Part
6R3--82519--00
Wire, earth lead
Diagram Reference: 27
Get Part
6E5--85711--60
12 −
Diagram Reference: 30
Get Part
