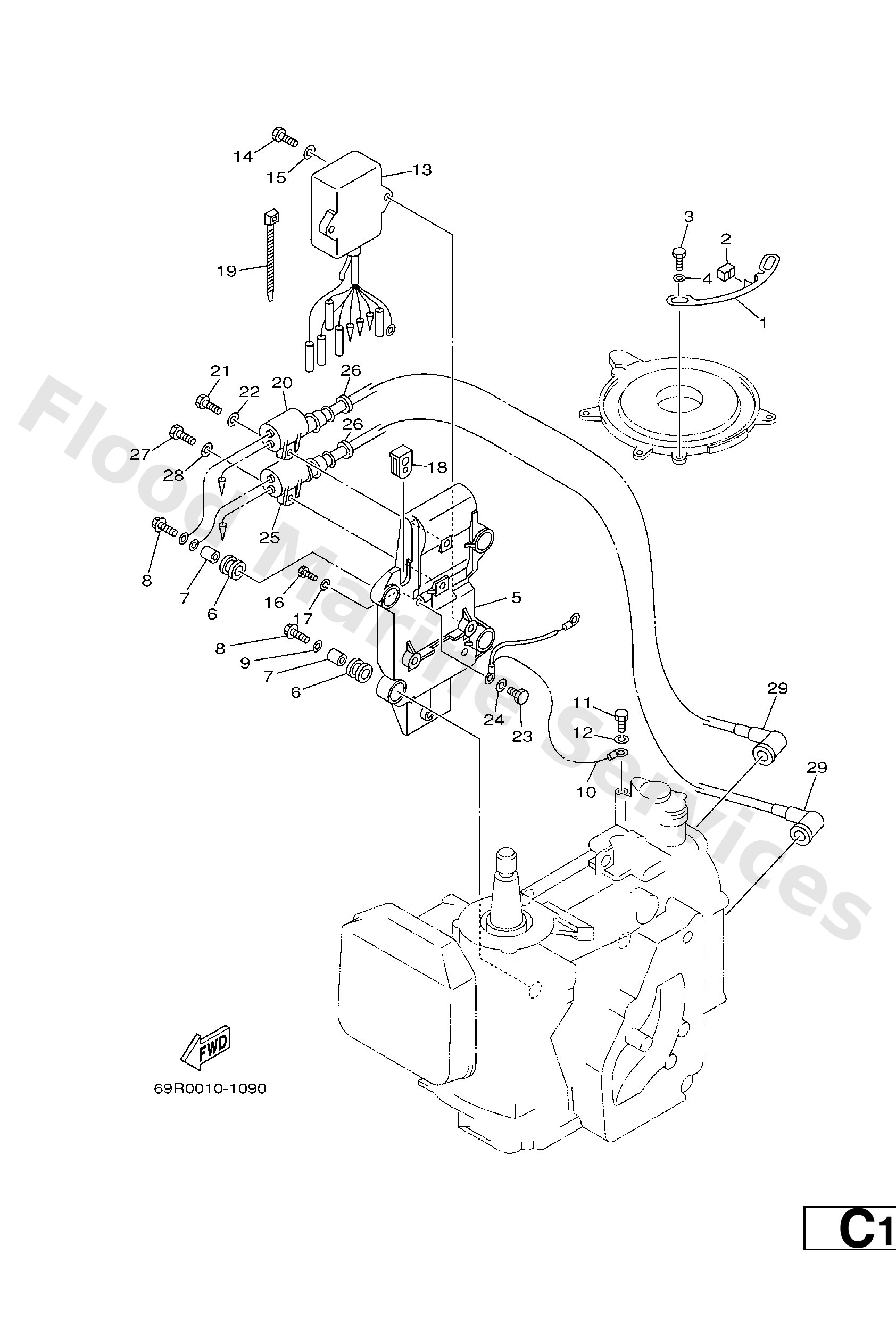

Diagram: ELECTRICAL 1
Parts List
Stopper, magneto base
Diagram Reference: 1
Bolt
Diagram Reference: 3
Washer, plain (646)
Diagram Reference: 4
Bracket
Diagram Reference: 5
Damper, ignition coil
Diagram Reference: 6
Collar
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Washer, plate (6a1)
Diagram Reference: 9
Wire, earth lead
Diagram Reference: 10
Bolt(gh1)
Diagram Reference: 11
Washer(6a1)
Diagram Reference: 12
C.d.i. unit assembly
Diagram Reference: 13
Bolt(7u8)
Diagram Reference: 14
Grommet
Diagram Reference: 18
Clamp (6e5)
Diagram Reference: 19
Ignition coil assembly
Diagram Reference: 20
Ignition coil assembly
Diagram Reference: 25
Grommet(656)
Diagram Reference: 26
Plug cap assembly
Diagram Reference: 29
