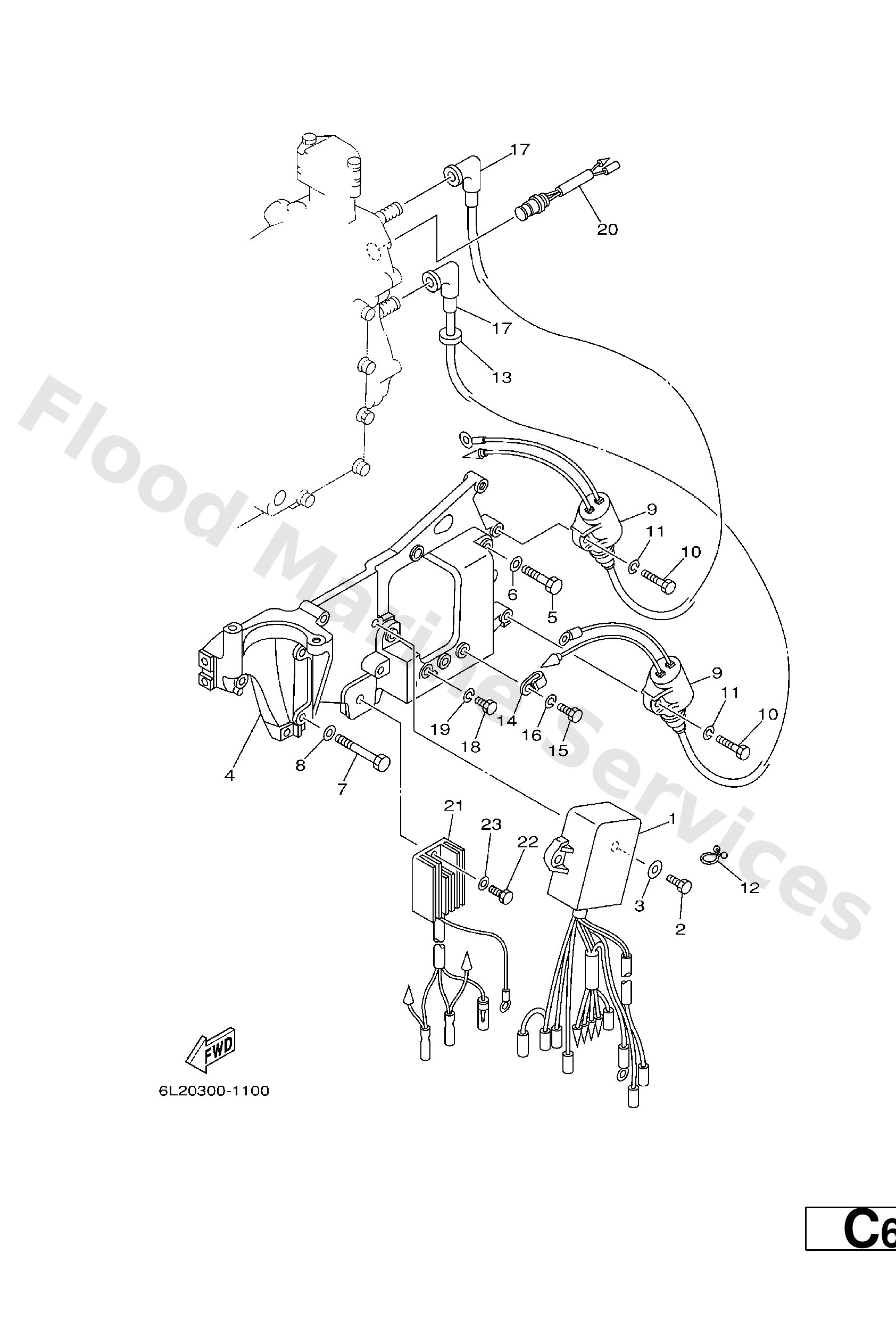

Diagram: ELECTRICAL 1

Diagram

Parts List

6L2−85540−22
C.d.i. unit assembly
Diagram Reference: 1
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 2
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 3
Get Part
6L2−85542−02−94
Bracket
Diagram Reference: 4
Get Part
97075−06030
Bolt(jf7)
Diagram Reference: 5
Get Part
90101−06M16
Bolt(6l2)
Diagram Reference: 7
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 8
Get Part
61N−85570−00
Ignition coil assembly
Diagram Reference: 9
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 11
Get Part
90464−08M07
Clamp
Diagram Reference: 12
Get Part
90480−25161
Grommet(656)
Diagram Reference: 13
Get Part
90465−06M86
Clamp
Diagram Reference: 14
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 15
Get Part
6G1−82370−21
Plug cap assembly
Diagram Reference: 17
Get Part
689−82560−00
Thermo switch assembly
Diagram Reference: 20
Get Part
6J8−81960−00
Rectifier & regulator assembly
Diagram Reference: 21
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 22
Get Part
