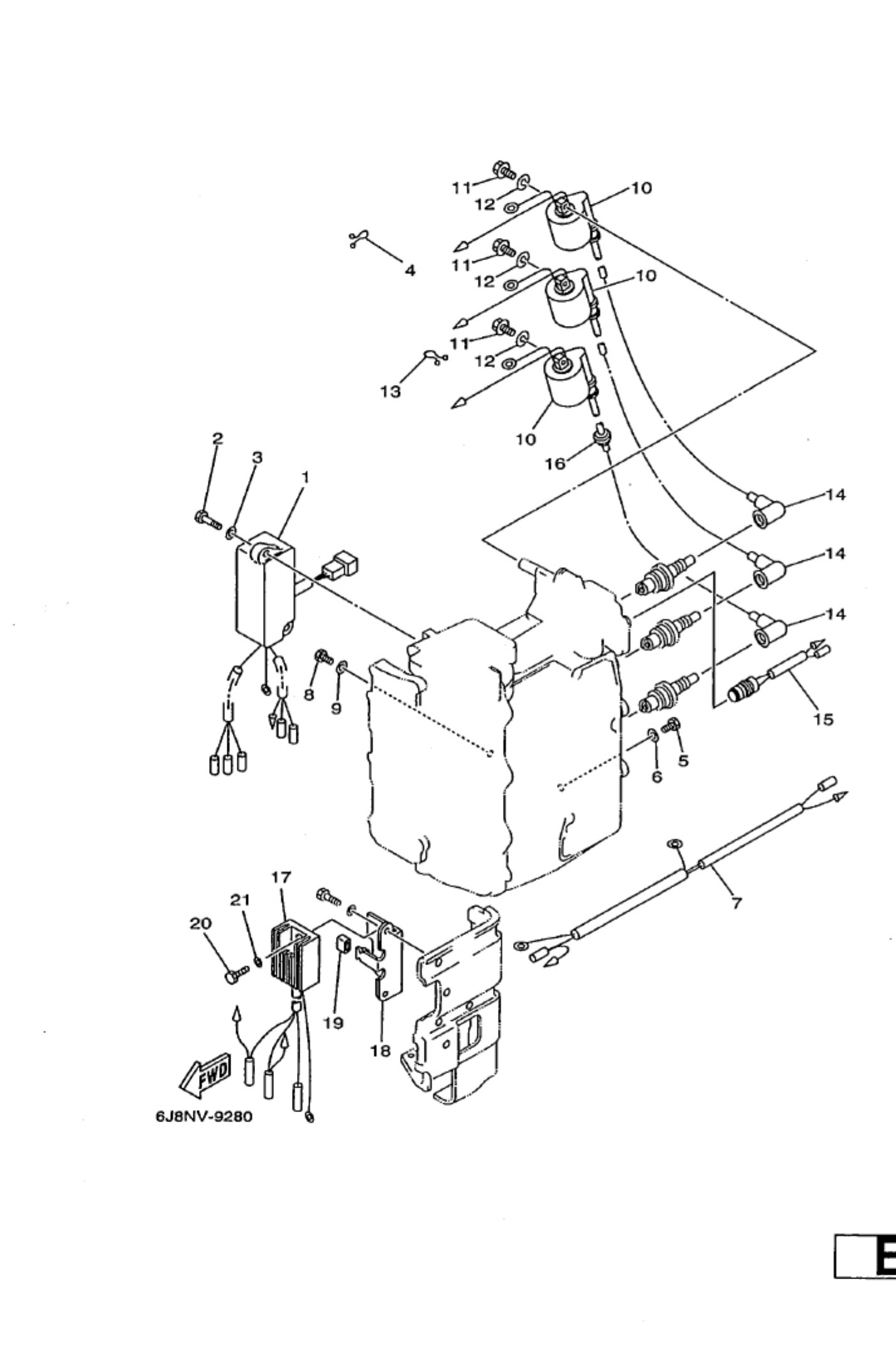

Diagram: ELECTRICAL 1

Diagram

Parts List

6J885540H2
C.d.i. unit assembly
Diagram Reference: 1
Get Part
9709506025 (2) 2|2|2)
Bolt
Diagram Reference: 2
Get Part
9299506600 (2( 2| 2] 2)
Washer, plain (646)
Diagram Reference: 3
Get Part
9046415M11
Clamp (3y2)
Diagram Reference: 4
Get Part
9709506012 ([RIRIR!)
Bolt(gh1)
Diagram Reference: 8
Get Part
6J88253100
Wire, lead
Diagram Reference: 7
Get Part
6J88557021 (3| 3] 3| 3)
Ignition coil assembly
Diagram Reference: 10
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 11
Get Part
9299506100 (6| 6] 6( 8)
Washer(6a1)
Diagram Reference: 12
Get Part
9046405M16
Clamp(6j8)
Diagram Reference: 13
Get Part
6G18237020
Plug cap assembly
Diagram Reference: 14
Get Part
6898256000
Thermo switch assembly
Diagram Reference: 15
Get Part
9048025161 (HIRI})
Grommet(656)
Diagram Reference: 16
Get Part
6488196000
Rectifier & Regulator assembly
Diagram Reference: 17
Get Part
6J88197500
Plate, rectifier fitting
Diagram Reference: 18
Get Part
6894419400 (1] 1)
Cap
Diagram Reference: 19
Get Part
9398506800 (REN 0)
Washer
Diagram Reference: 21
Get Part
