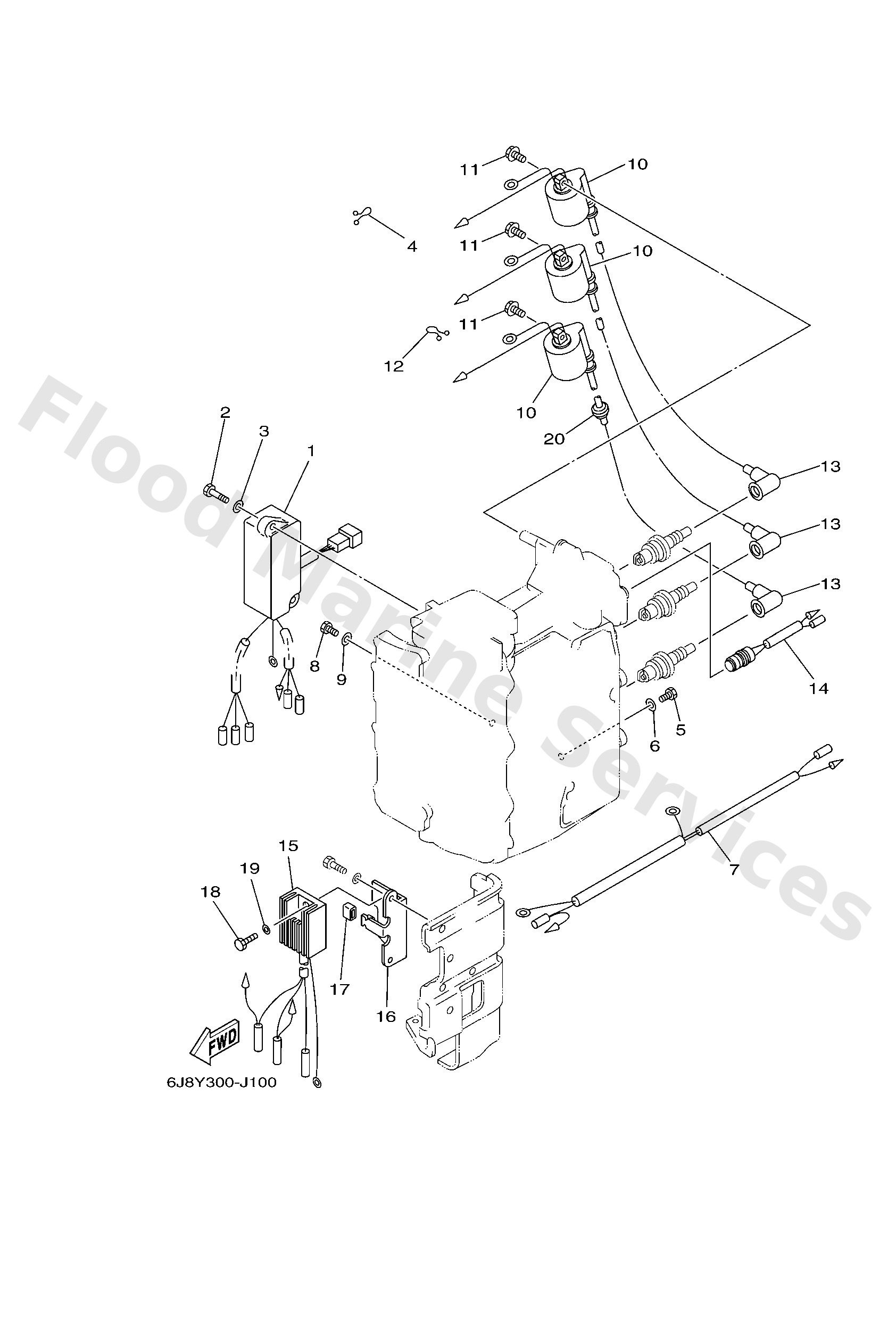

Diagram: ELECTRICAL 1

Diagram

Parts List

6J885540H2
C.d.i. unit assembly
Diagram Reference: 1
Get Part
9709506025
Bolt
Diagram Reference: 2
Get Part
9299506600 (EXCEPT FOR RUS)
Washer, plain (646)
Diagram Reference: 19
Get Part
9046415M11
Clamp (3y2)
Diagram Reference: 4
Get Part
9709506012 (EXCEPT FOR RUS)
Bolt(gh1)
Diagram Reference: 18
Get Part
6J88253100
Wire, lead
Diagram Reference: 7
Get Part
6J88557021
Ignition coil assembly
Diagram Reference: 10
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 11
Get Part
9046405M16
Clamp(6j8)
Diagram Reference: 12
Get Part
6G18237021
Plug cap assembly
Diagram Reference: 13
Get Part
6898256000
Thermo switch assembly
Diagram Reference: 14
Get Part
6J88196000 (EXCEPT FOR RUS)
Rectifier & regulator assembly
Diagram Reference: 15
Get Part
6J88197500 (EXCEPT FOR RUS)
Plate, rectifier fitting
Diagram Reference: 16
Get Part
6894419400 (EXCEPT FOR RUS)
Cap
Diagram Reference: 17
Get Part
9048025161
Grommet(656)
Diagram Reference: 20
Get Part
