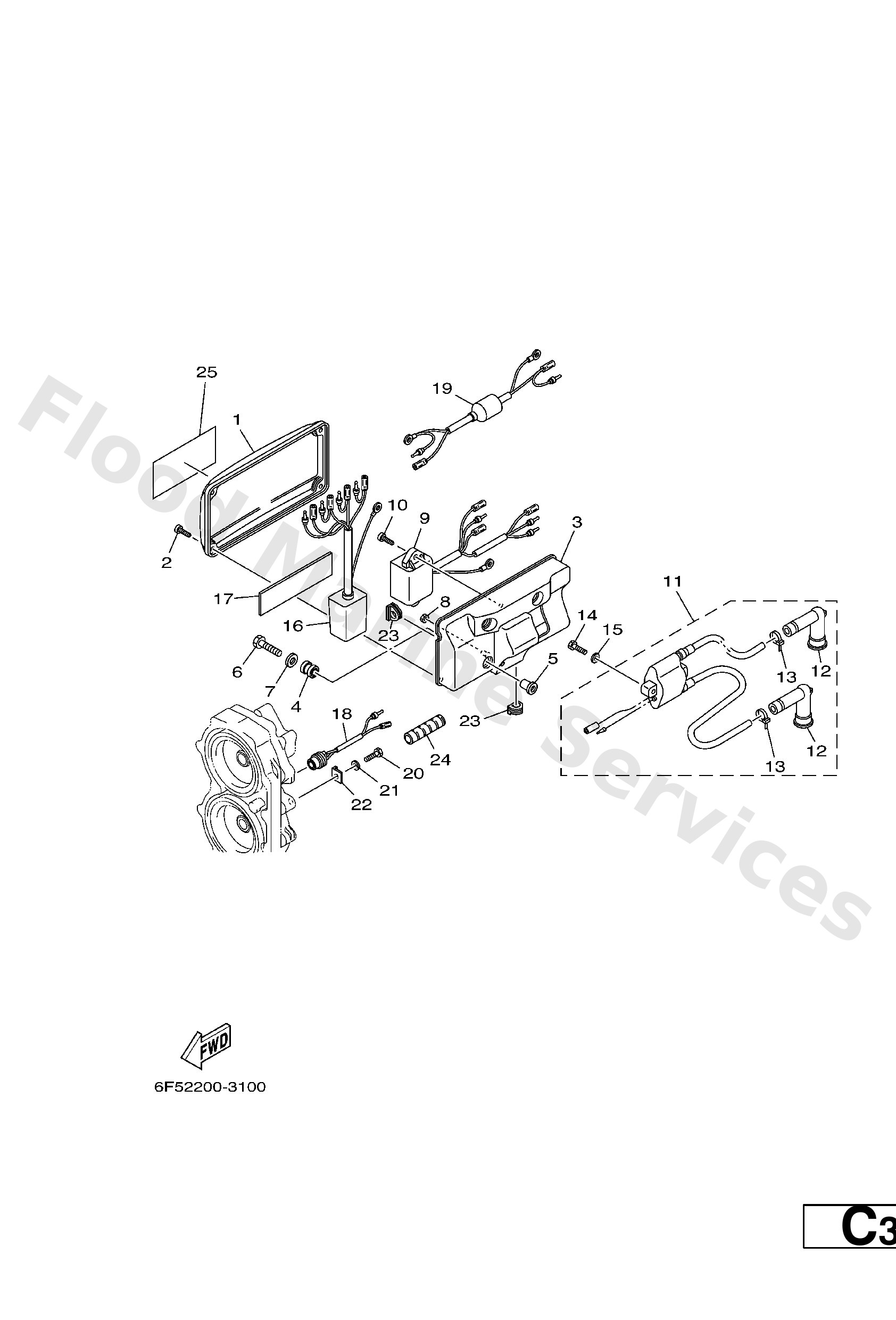

Diagram: ELECTRICAL 1

Diagram

Parts List

6F5−81916−00

9−

Diagram Reference: 1

90164−06M01

Screw (6f5)

Diagram Reference: 2

6F5−85542−01

Bracket

Diagram Reference: 3

6F5−82317−00

9−

Diagram Reference: 4

90387−08M45

Coller (6f5)

Diagram Reference: 5

97075−08030

Bolt, hexagon (fj1)

Diagram Reference: 6

92995−08600

Washer, plain (663)

Diagram Reference: 7

95380−06600

Nut(661)

Diagram Reference: 8

6F5−85540−22

C.d.i. unit assembly

Diagram Reference: 9

6F6−85530−00

Ignition Coil assembly

Diagram Reference: 11

62E−82371−11

Cap, plug

Diagram Reference: 12

90465−11M10

Clamp

Diagram Reference: 13

97095−06025

Bolt

Diagram Reference: 14

92995−06600

Washer, plain (646)

Diagram Reference: 15

6F5−85590−21

Control unit assembly

Diagram Reference: 16

6F5−82131−00

9−

Diagram Reference: 17

688−82560−10

Thermo switch assembly

Diagram Reference: 18

6F5−82519−00

9−

Diagram Reference: 19

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 20

6F5−82588−00

Plate

Diagram Reference: 22

6F5−81922−00

Grommet 1

Diagram Reference: 23

90446−10M01

Tube (6e5)

Diagram Reference: 24

6F5−83622−81

Mark 2

Diagram Reference: 25
