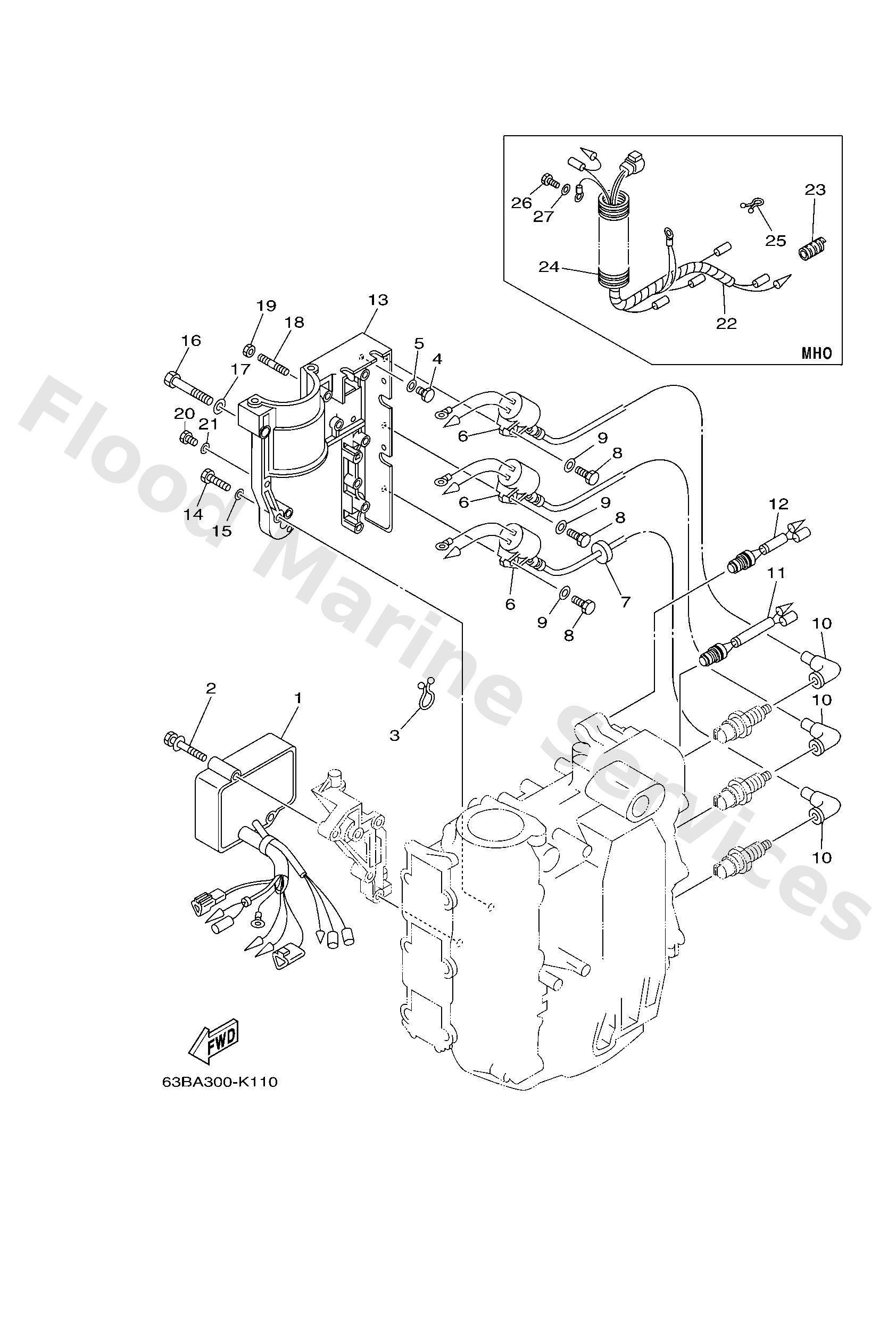

Diagram: ELECTRICAL 1
Parts List
C.d.i. unit assembly
Diagram Reference: 1
Bolt, with washer(6h4)
Diagram Reference: 2
Clamp (3y2)
Diagram Reference: 3
Bolt(gj3)
Diagram Reference: 4
Washer, plain (646)
Diagram Reference: 5
Ignition coil assembly
Diagram Reference: 6
Grommet(656)
Diagram Reference: 7
Bolt(7u8)
Diagram Reference: 8
Plug cap assembly
Diagram Reference: 10
Thermo switch assembly
Diagram Reference: 11
Thermo switch assembly
Diagram Reference: 12
Bracket, starting motor
Diagram Reference: 13
Bolt(jf7)
Diagram Reference: 14
Bolt, hexagon
Diagram Reference: 16
Washer, plain (663)
Diagram Reference: 17
Bolt, stud(6h4)
Diagram Reference: 18
Nut(6j8)
Diagram Reference: 19
Wire, lead
Diagram Reference: 22
Tube (6e5)
Diagram Reference: 23
Tube
Diagram Reference: 24
Clamp(6j8)
Diagram Reference: 25
