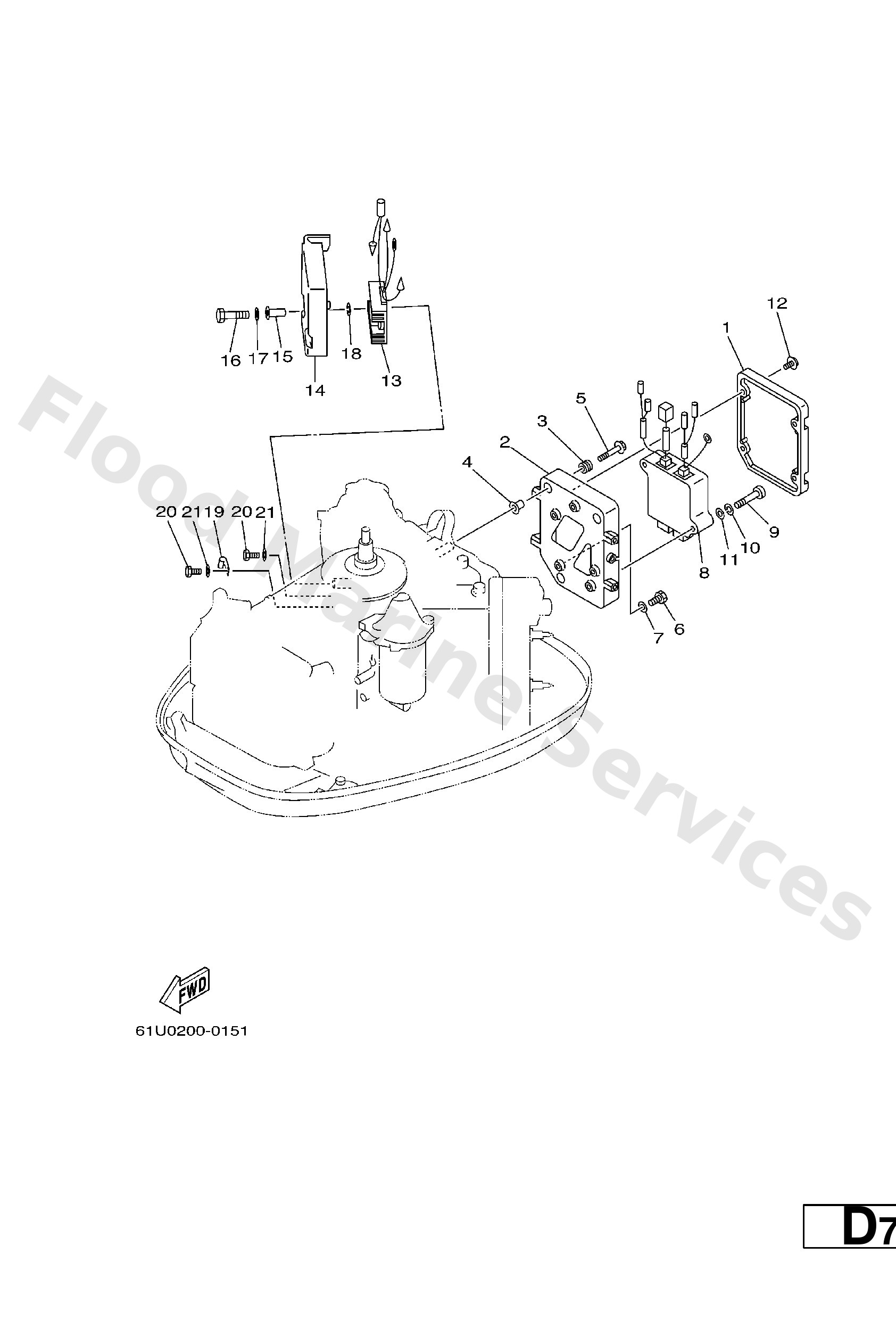

Diagram: ELECTRICAL 1

Diagram

Parts List

6N7−85537−00
Cover
Diagram Reference: 1
Get Part
6N7−85542−01−1S
Bracket
Diagram Reference: 2
Get Part
6A0−82317−00
Damper, ignition coil
Diagram Reference: 3
Get Part
624−42542−00
Collar
Diagram Reference: 4
Get Part
90119−06M59
Bolt, with washer
Diagram Reference: 5
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 6
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 7
Get Part
6E5−85540−00
C.d.i. unit assembly
Diagram Reference: 8
Get Part
97880−06040
Screw pan head
Diagram Reference: 9
Get Part
92990−06100
Washer(6a1)
Diagram Reference: 10
Get Part
92990−06600
Washer, plain (646)
Diagram Reference: 11
Get Part
90159−06M11
Screw, with washer(6l2)
Diagram Reference: 12
Get Part
6H0−81960−00
Rectifier & regulator assembly
Diagram Reference: 13
Get Part
6E5−81961−00
Cover
Diagram Reference: 14
Get Part
90387−06M77
Collar
Diagram Reference: 15
Get Part
97013−06045
Bolt, hexagon
Diagram Reference: 16
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 17
Get Part
90201−06M05
Washer, plate(6e3)
Diagram Reference: 18
Get Part
90465−06M86
Clamp
Diagram Reference: 19
Get Part
