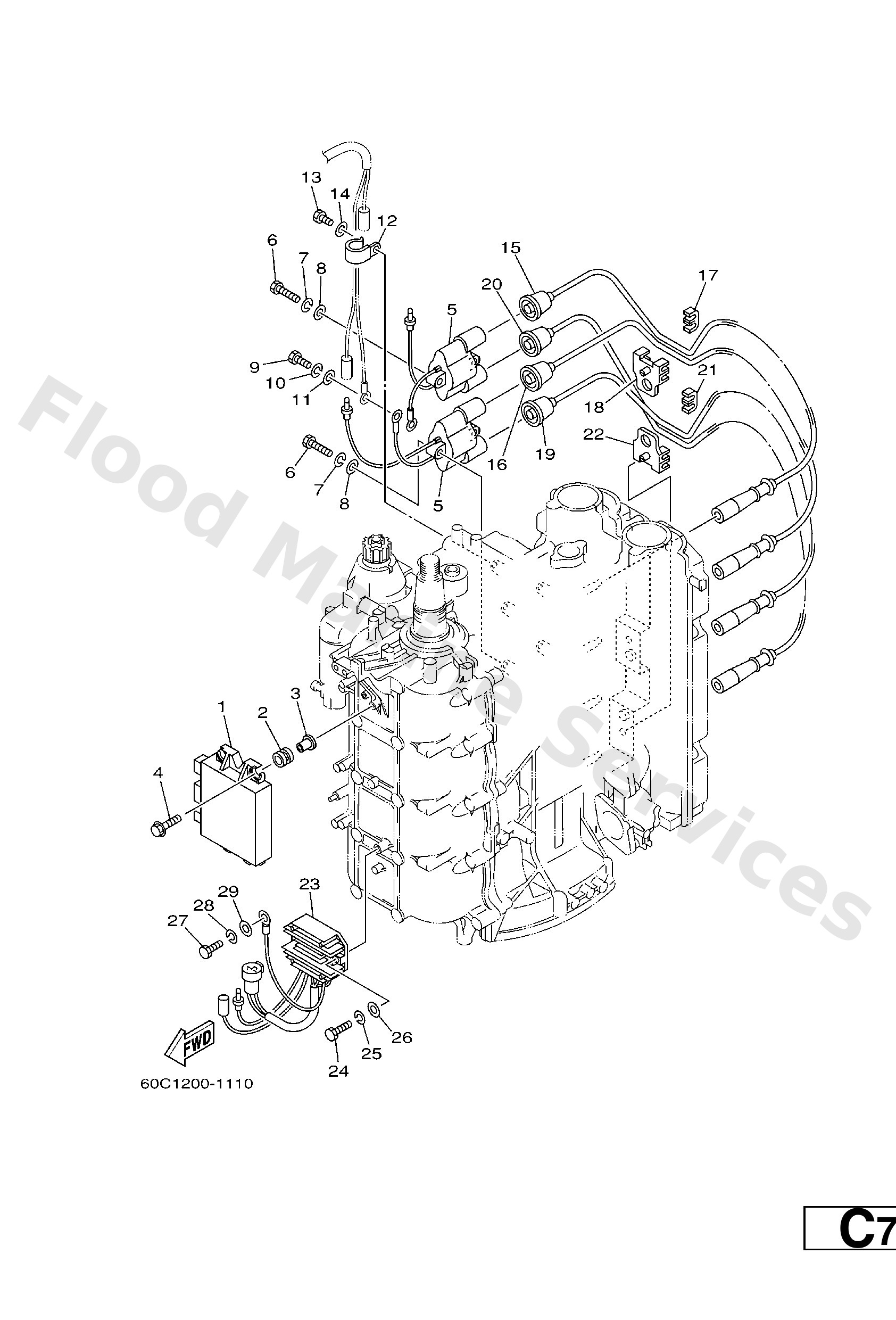

Diagram: ELECTRICAL 1
Parts List
C.d.i. unit assembly
Diagram Reference: 1
Damper, ignition coil
Diagram Reference: 2
Collar
Diagram Reference: 3
Bolt, with washer
Diagram Reference: 4
Ignition coil assembly
Diagram Reference: 5
Bolt(jf7)
Diagram Reference: 6
Washer(6a1)
Diagram Reference: 7
Washer, plain (646)
Diagram Reference: 8
Bolt(7u8)
Diagram Reference: 9
Clamp
Diagram Reference: 12
Bolt(gh1)
Diagram Reference: 13
Cord, high tension 1
Diagram Reference: 15
Cord, high tension 2
Diagram Reference: 16
Clamp, cord
Diagram Reference: 17
Clamp, cord 2
Diagram Reference: 18
Cord, high tension 3
Diagram Reference: 19
Cord, high tension 4
Diagram Reference: 20
Bolt
Diagram Reference: 24
Washer
Diagram Reference: ?
Bolt
Diagram Reference: ?
60C-82586-00
Diagram Reference: ?
90465-11M10
Diagram Reference: ?
60C-81916-00
Diagram Reference: ?
67F-82590-03
Diagram Reference: ?
67F-81960-11
Diagram Reference: ?
