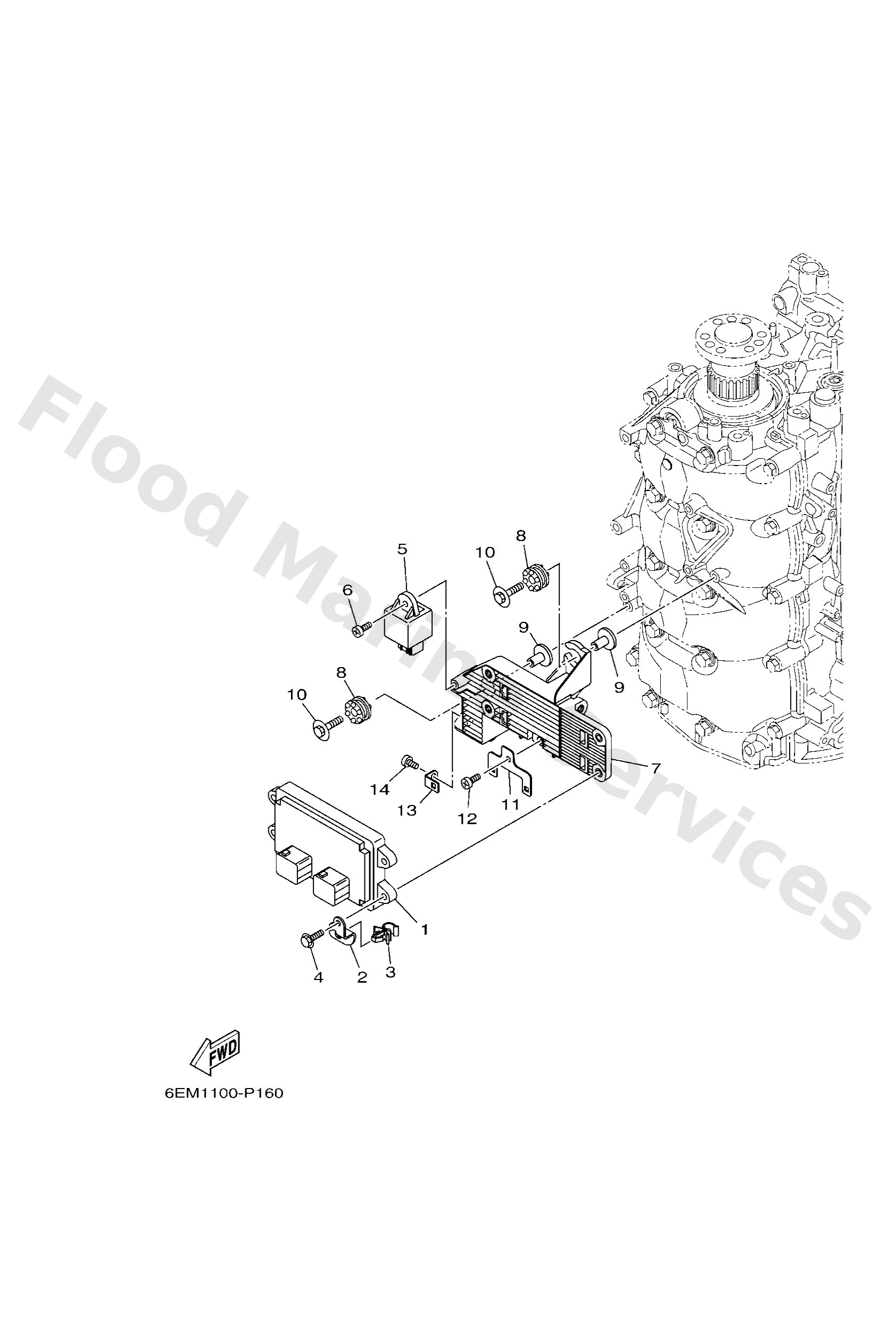

Diagram: ELECTRICAL 1

Diagram

Parts List

6EM8591A01
Engine control unit assembly
Diagram Reference: 1
Get Part
6EM8239800
Plate 3
Diagram Reference: 2
Get Part
9046410M32
Clamp(6m7)
Diagram Reference: 3
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 4
Get Part
68V8195000
Relay assembly
Diagram Reference: 5
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 6
Get Part
6EM8194800
Bracket
Diagram Reference: 7
Get Part
60V8556400
Grommet
Diagram Reference: 8
Get Part
9038706176
Collar
Diagram Reference: 9
Get Part
68F8511900
Bolt
Diagram Reference: 10
Get Part
6C58257V00
Plate, connector
Diagram Reference: 11
Get Part
68V8554801
Holder
Diagram Reference: 13
Get Part
