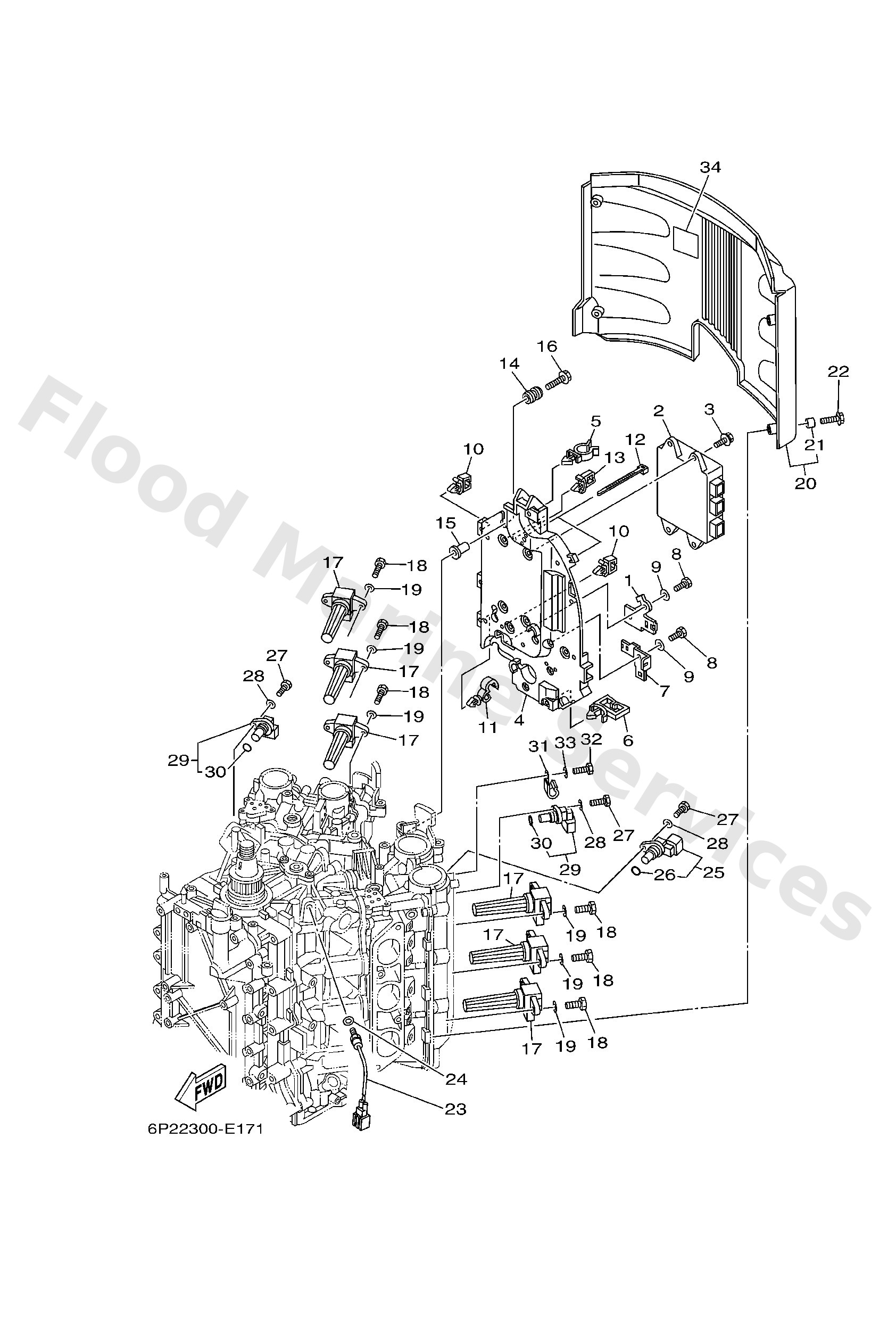

Diagram: ELECTRICAL 1

Diagram

Parts List

6P28257V00
Plate, connector
Diagram Reference: 1
Get Part
6BB8591A00
Engine control unit assembly
Diagram Reference: 2
Get Part
9011906M82
Bolt, with washer
Diagram Reference: 3
Get Part
6P28231600
Bracket, ignition coil
Diagram Reference: 4
Get Part
9046419M45
Clamp(65j)
Diagram Reference: 5
Get Part
9046423199
Clamp(4hm)
Diagram Reference: 6
Get Part
6P28184500
Plate
Diagram Reference: 7
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 8
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 9
Get Part
9046411121
Clamp(4gy)
Diagram Reference: 10
Get Part
9046413249
Clamp
Diagram Reference: 11
Get Part
9046514M66
Clamp
Diagram Reference: 12
Get Part
9046408004
Clamp
Diagram Reference: 13
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 14
Get Part
9038706119
Collar
Diagram Reference: 15
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 16
Get Part
6P28231001
Ignition coil assembly
Diagram Reference: 17
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 18
Get Part
6P28231400
Cover, ignition coil
Diagram Reference: 20
Get Part
9038706044
Collar
Diagram Reference: 21
Get Part
9011906M92
Bolt, with washer
Diagram Reference: 22
Get Part
61A8579000
Thermosensor assembly
Diagram Reference: 23
Get Part
9299010600
Washer, plate
Diagram Reference: 24
Get Part
6P28589600
Sensor, cam position
Diagram Reference: 25
Get Part
6P28507500
O-ring
Diagram Reference: 26
Get Part
6P28589700
Sensor, cam position 2
Diagram Reference: 29
Get Part
9046208032
Clamp
Diagram Reference: 31
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 32
Get Part
67F1213860
Mark, Caution
Diagram Reference: 34
Get Part
