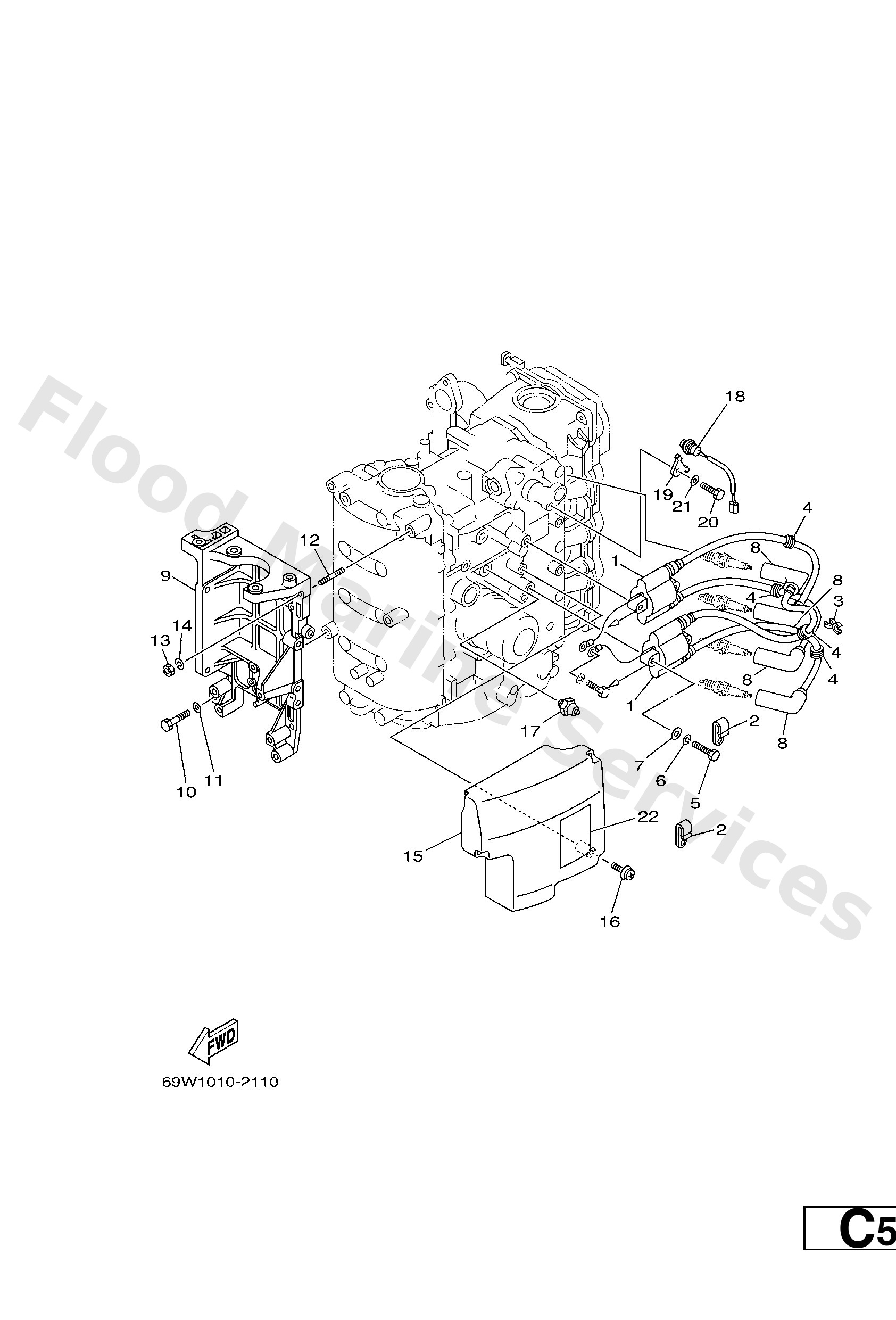

Diagram: ELECTRICAL 1

Diagram

Parts List

62Y8557000
Ignition coil assembly
Diagram Reference: 1
Get Part
9046506M90
Clamp
Diagram Reference: 2
Get Part
9046407M41
Clamp(62y)
Diagram Reference: 3
Get Part
9048025161
Grommet(656)
Diagram Reference: 4
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 5
Get Part
9299506100
Washer(6a1)
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
6G88237030
Plug cap assembly
Diagram Reference: 8
Get Part
62Y818220194
Bracket, starting motor
Diagram Reference: 9
Get Part
9709508035
Bolt(70w)
Diagram Reference: 10
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 11
Get Part
9011608M14
Bolt, stud (6e5)
Diagram Reference: 12
Get Part
9538008600
Nut (661)
Diagram Reference: 13
Get Part
9299008100
Ybs67-8 washer, spring
Diagram Reference: 14
Get Part
62Y8559900
Cover
Diagram Reference: 15
Get Part
9015906M08
Screw, with washer(6k7)
Diagram Reference: 16
Get Part
64J8250400
Oil pressure switch assembly
Diagram Reference: 17
Get Part
62Y8256001
Thermo switch assembly
Diagram Reference: 18
Get Part
6E98258800
Plate
Diagram Reference: 19
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 20
Get Part
62Y8362600
Mark. 6
Diagram Reference: 22
Get Part
