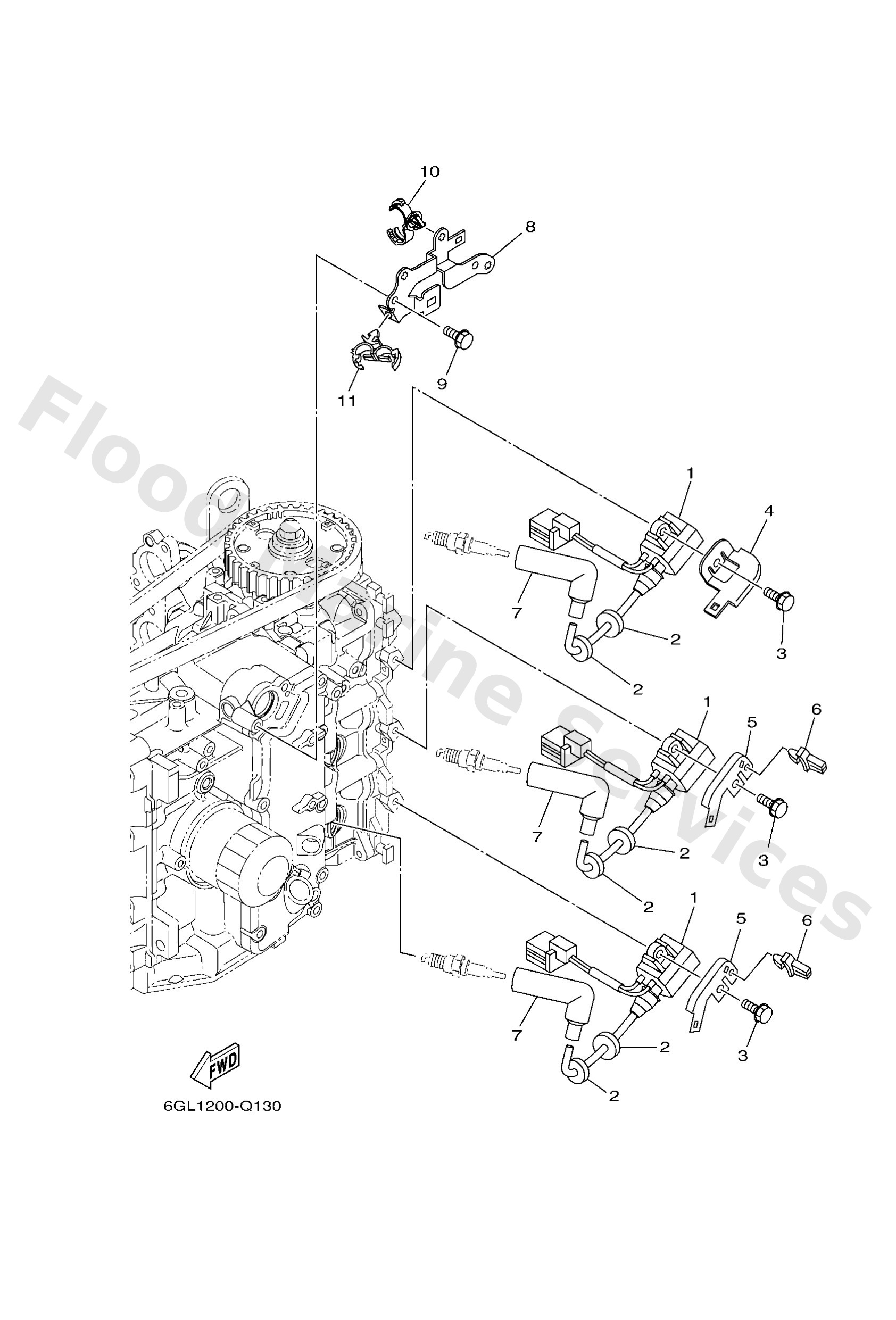

Diagram: ELECTRICAL 1

Diagram

Parts List

6BG8557000
Ignition coil assembly
Diagram Reference: 1
Get Part
9048025003
Grommet
Diagram Reference: 2
Get Part
97E9506525
Bolt, hexagon w/w deep recess
Diagram Reference: 3
Get Part
6GL8239800
Plate 3
Diagram Reference: 4
Get Part
6BG8238900
Plate 2
Diagram Reference: 5
Get Part
9046406001
Clamp
Diagram Reference: 6
Get Part
6AH8237000
Plug cap assembly
Diagram Reference: 7
Get Part
6BG8152800
Clamp 1
Diagram Reference: 8
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 10
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 11
