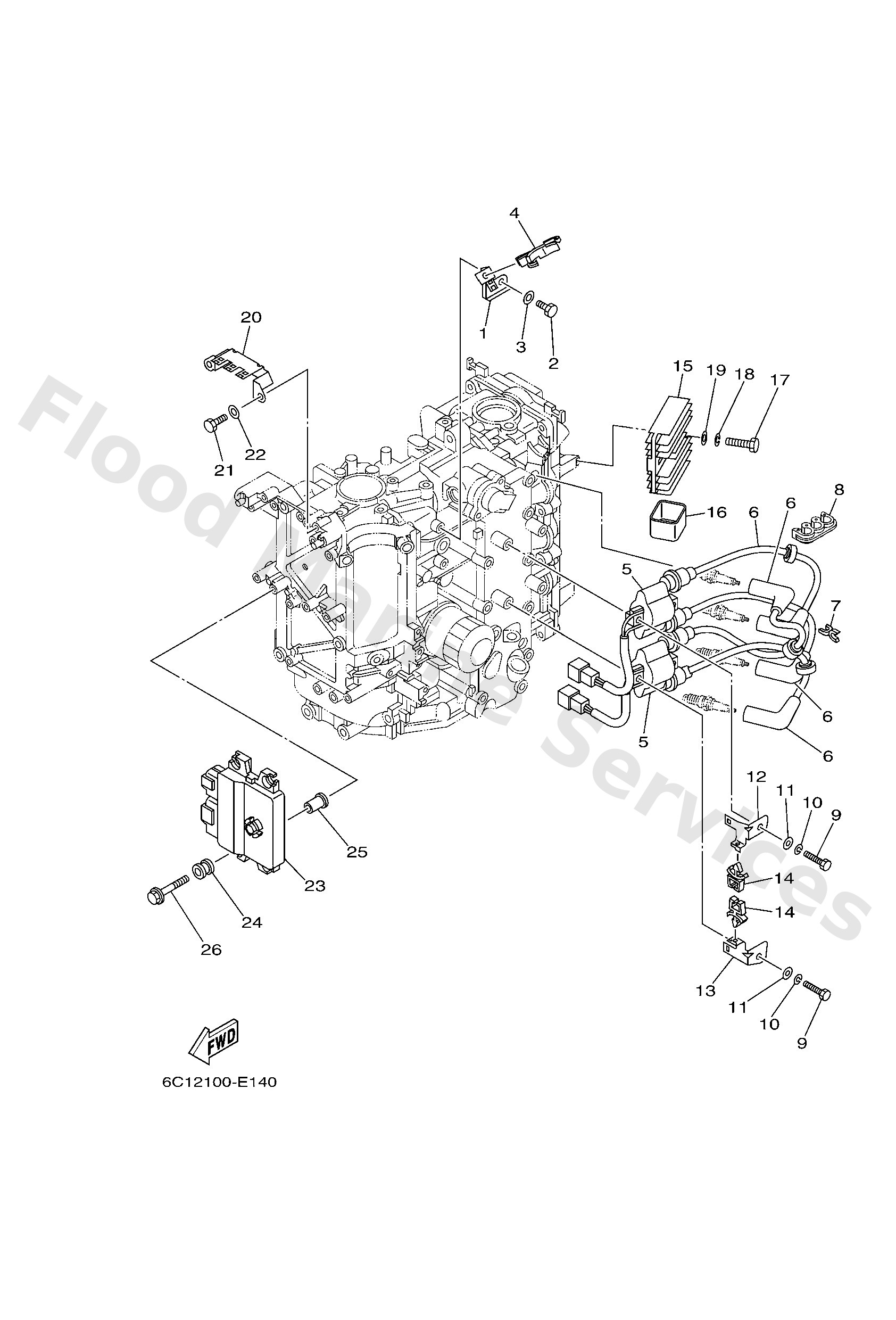

Parts List
Plate
Diagram Reference: 1
Bolt(gj3)
Diagram Reference: 2
Washer
Diagram Reference: 3
Clamp
Diagram Reference: 4
Ignition coil assembly
Diagram Reference: 5
High tension cord assembly 1
Diagram Reference: 6
Clamp (6g5)
Diagram Reference: 8
Washer(6a1)
Diagram Reference: 10
Bracket, ignition coil
Diagram Reference: 12
Bracket, ignition coil
Diagram Reference: 13
Rectifier & regulator assembly
Diagram Reference: 15
Cover
Diagram Reference: 16
Bolt
Diagram Reference: 17
Stay, fuse box
Diagram Reference: 20
Engine control unit assembly
Diagram Reference: 23
Engine control unit assembly
Diagram Reference: 23
Engine Control Unit assembly
Diagram Reference: 23
Engine control unit assembly
Diagram Reference: 23
Damper, ignition coil
Diagram Reference: 24
Collar
Diagram Reference: 25
Bolt, with washer
Diagram Reference: 26
