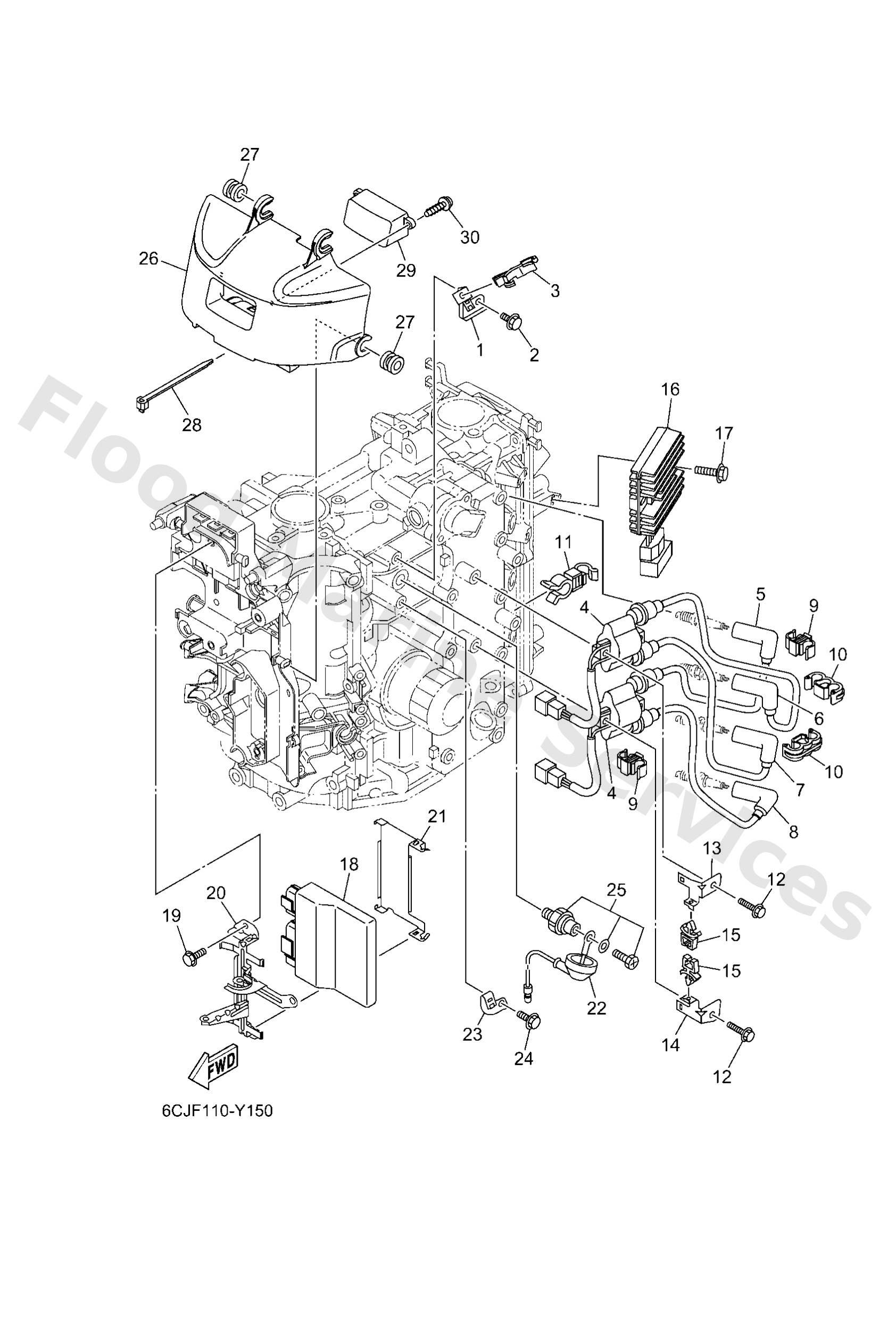

Parts List
Plate
Diagram Reference: 1
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Clamp(4tr)
Diagram Reference: 3
Ignition coil assembly
Diagram Reference: 4
High tension cord assembly 1
Diagram Reference: 5
High tension cord assembly 2
Diagram Reference: 6
High tension cord assembly 3
Diagram Reference: 7
High tension cord assembly 4
Diagram Reference: 8
Clamp
Diagram Reference: 9
Clamp
Diagram Reference: 10
Clamp
Diagram Reference: 11
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Bracket, ignition coil
Diagram Reference: 13
Bracket, ignition coil
Diagram Reference: 14
Clamp
Diagram Reference: 15
Rectifier & regulator assembly
Diagram Reference: 16
Engine control unit assembly
Diagram Reference: 18
Bolt, hexagon w/w deep recess
Diagram Reference: 19
Plate
Diagram Reference: 20
Plate, lock
Diagram Reference: 21
Lead wire assembly
Diagram Reference: 22
Plate
Diagram Reference: 23
Oil pressure switch assembly
Diagram Reference: 25
Cover
Diagram Reference: 26
Grommet(3aa)
Diagram Reference: 27
Band, switch cord
Diagram Reference: 28
Cover, meter
Diagram Reference: 29
Screw, tapping
Diagram Reference: 30
