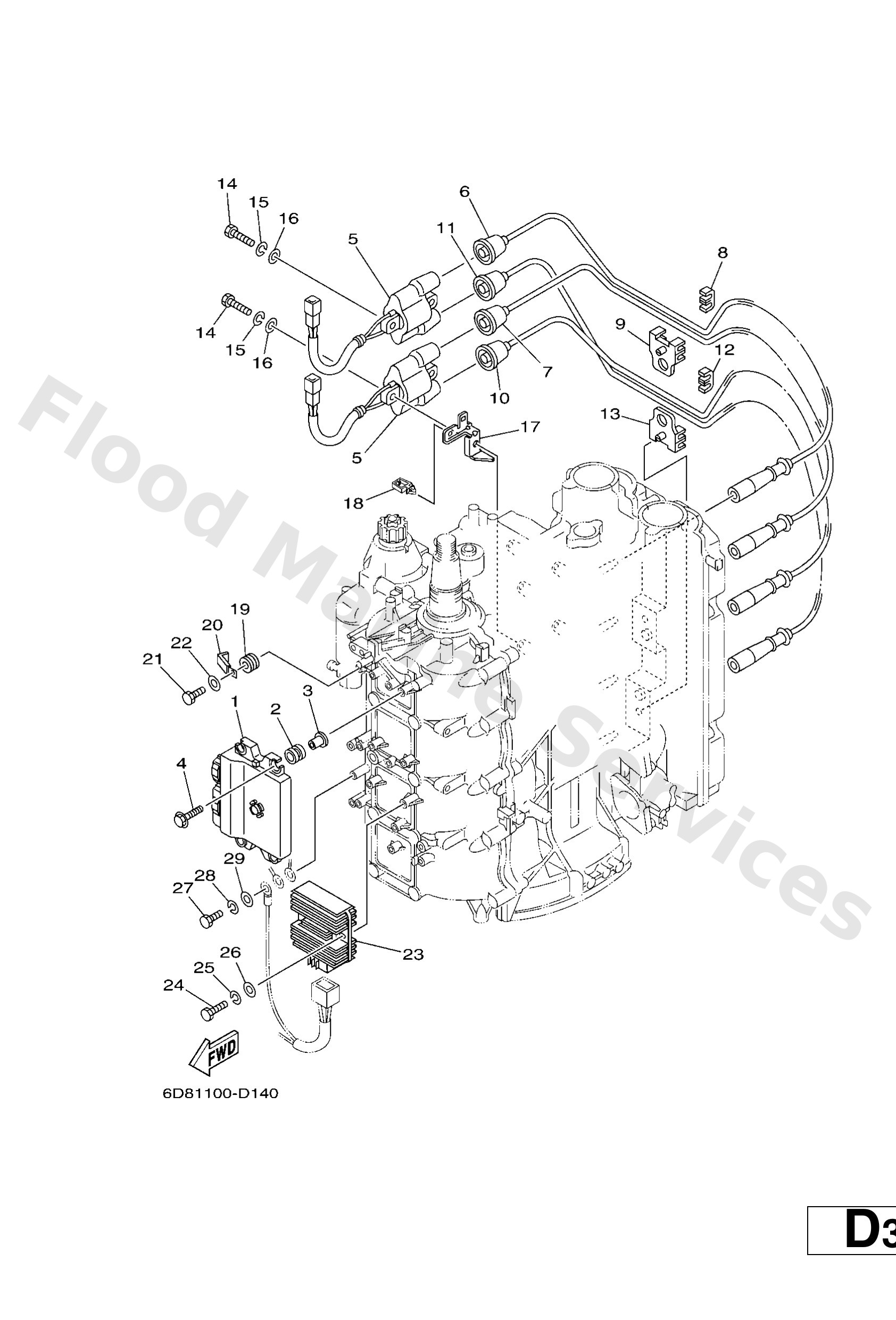

Diagram: ELECTRICAL 1

Diagram

Parts List

6D68591A00
Engine Control Unit assembly
Diagram Reference: 1
Get Part
68V8231700
Damper, ignition coil
Diagram Reference: 2
Get Part
6244254200
Collar
Diagram Reference: 3
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 4
Get Part
63P8231001
Ignition coil assembly
Diagram Reference: 5
Get Part
67F8234100 (#1)
Cord, high tension 1
Diagram Reference: 6
Get Part
67F8234200 (#2)
Cord, high tension 2
Diagram Reference: 7
Get Part
67F8236100
Clamp, cord
Diagram Reference: 8
Get Part
67F8236200
Clamp, cord 2
Diagram Reference: 9
Get Part
67F8234300 (#3)
Cord, high tension 3
Diagram Reference: 10
Get Part
67F8234400 (#4)
Cord, high tension 4
Diagram Reference: 11
Get Part
9709506025
Bolt
Diagram Reference: 14
Get Part
9299506100
Washer(6a1)
Diagram Reference: 15
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 16
Get Part
6D88238800
Plate
Diagram Reference: 17
Get Part
9046411121
Clamp(4gy)
Diagram Reference: 18
Get Part
9048014329
Grommet (16r)
Diagram Reference: 19
Get Part
9046508M23
Clamp (6h3)
Diagram Reference: 20
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 21
Get Part
68V8196000
Rectifier & regulator assembly
Diagram Reference: 23
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 27
Get Part
