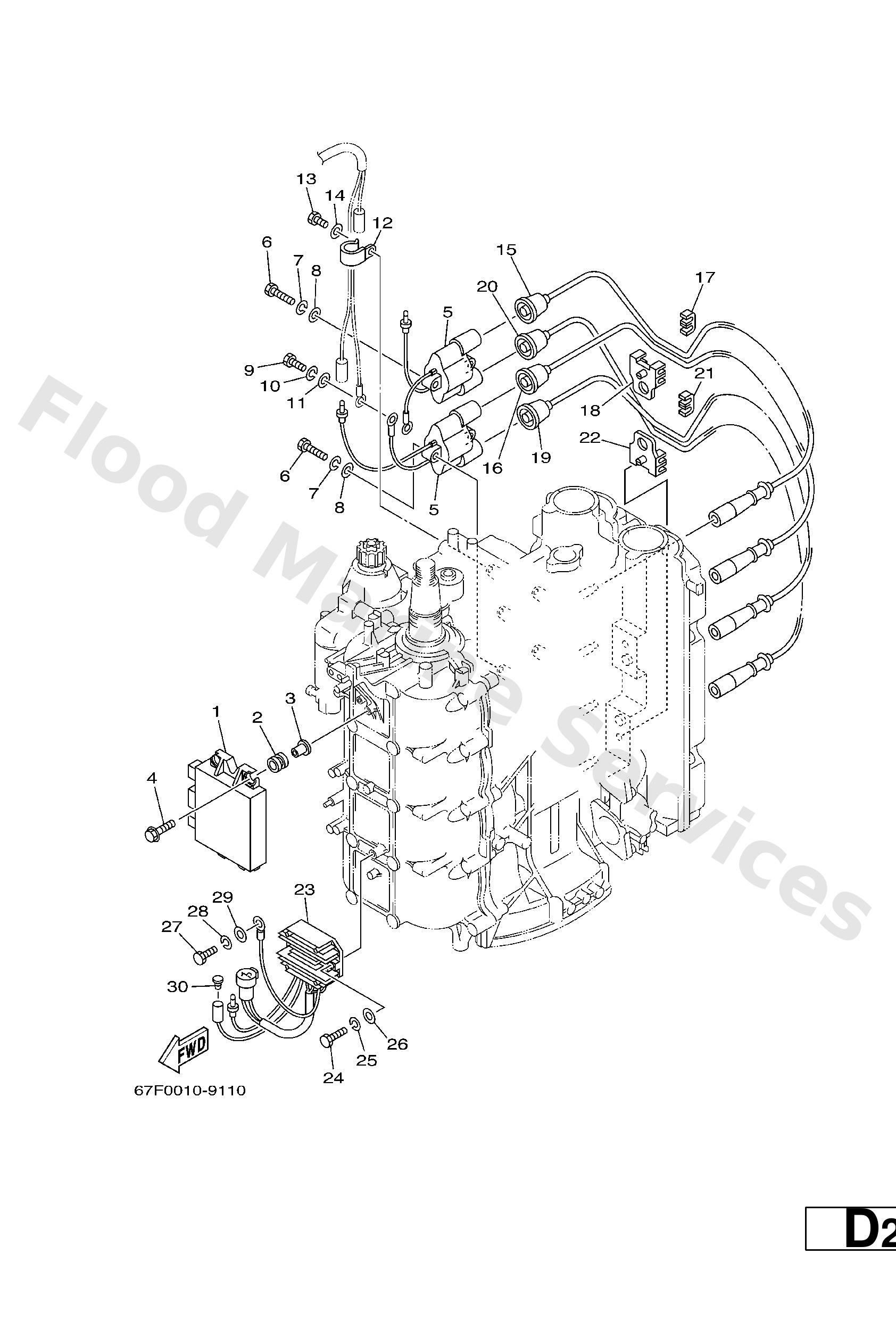

Diagram: ELECTRICAL 1

Diagram

Parts List

67F8554001
C.d.i. unit assembly
Diagram Reference: 1
Get Part
68V8231700
Damper, ignition coil
Diagram Reference: 2
Get Part
6244254200
Collar
Diagram Reference: 3
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 4
Get Part
67F8557000
Ignition coil assembly
Diagram Reference: 5
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 6
Get Part
9299506100
Washer(6a1)
Diagram Reference: 7
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 8
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 9
Get Part
9046506M86
Clamp
Diagram Reference: 12
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 13
Get Part
67F8234100 (#1)
Cord, high tension 1
Diagram Reference: 15
Get Part
67F8234200 (#2)
Cord, high tension 2
Diagram Reference: 16
Get Part
67F8236100
Clamp, cord
Diagram Reference: 17
Get Part
67F8236200
Clamp, cord 2
Diagram Reference: 18
Get Part
67F8234300 (#3)
Cord, high tension 3
Diagram Reference: 19
Get Part
67F8234400 (#4)
Cord, high tension 4
Diagram Reference: 20
Get Part
67F8196010 (Go to P/N ) PE0-OM-060001)
Rectifier & Regulator assembly
Diagram Reference: 23
Get Part
9709506025
Bolt
Diagram Reference: 24
Get Part
7038211900 (Go to P/N ) PE0-OM-060001)
Cover, lead wire
Diagram Reference: 30
Get Part
1323
&
Diagram Reference: ?
Get Part
1330
703-82119-00
Diagram Reference: ?
Get Part
