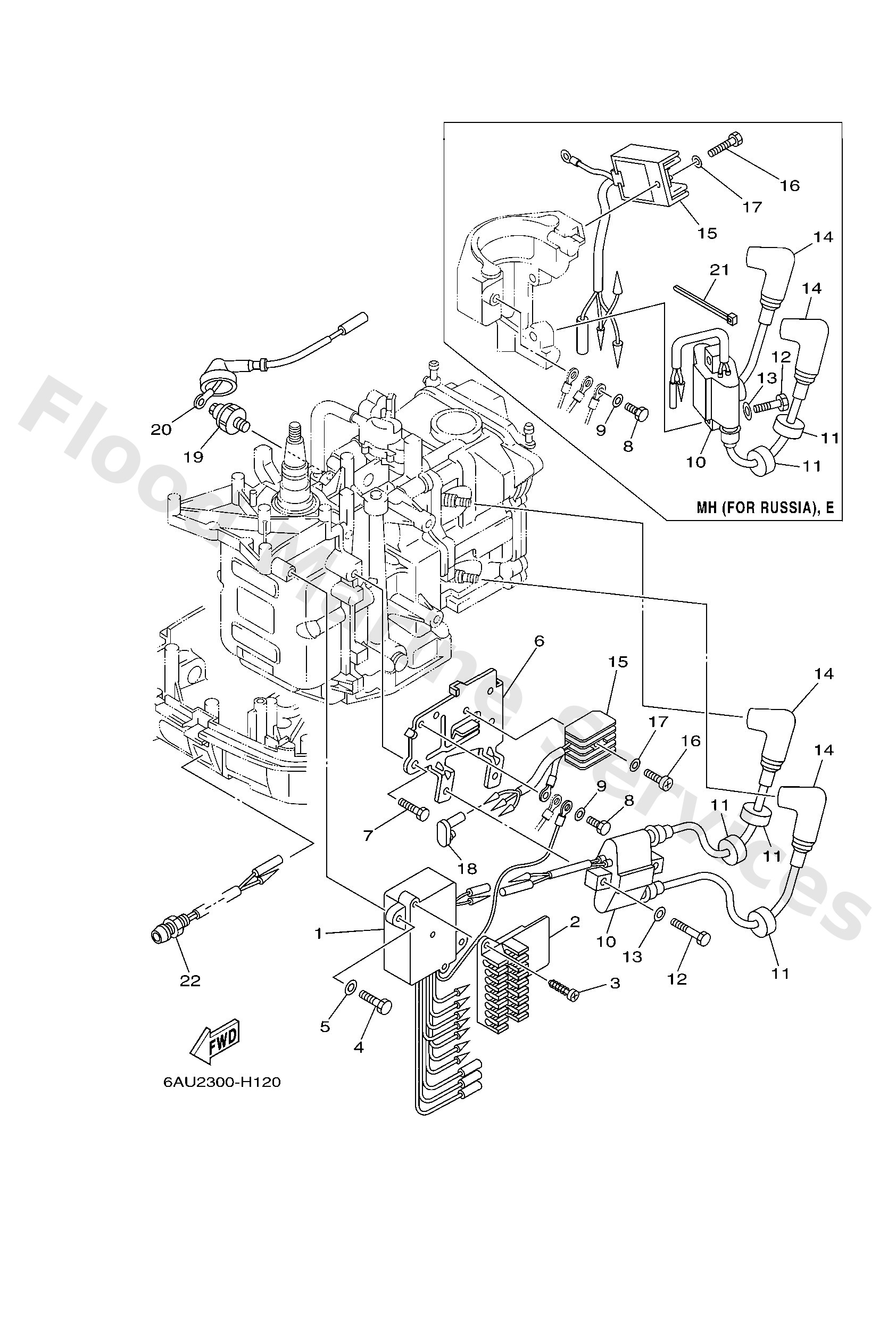

Parts List
C.d.i. unit assembly
Diagram Reference: 1
Clamp, coupler
Diagram Reference: 2
Screw, pan head tapping
Diagram Reference: 3
Bolt(7u8)
Diagram Reference: 4
Washer, plain (646)
Diagram Reference: 17
Bracket
Diagram Reference: 6
Bolt, hexagon deep recess
Diagram Reference: 7
Bolt(gh1)
Diagram Reference: 16
Ignition coil assembly
Diagram Reference: 10
Grommet
Diagram Reference: 11
Bolt
Diagram Reference: 12
Plug cap assembly
Diagram Reference: 14
Rectifier assembly
Diagram Reference: 15
Rectifier & regulator assembly
Diagram Reference: 15
Screw, panhead (a93)
Diagram Reference: 16
Washer, plain (646)
Diagram Reference: 17
Cover, lead wire
Diagram Reference: 18
Oil pressure switch assembly
Diagram Reference: 19
Wire, lead 2
Diagram Reference: 20
Clamp
Diagram Reference: 21
Emergency signal light assembly
Diagram Reference: 22
