Parts List

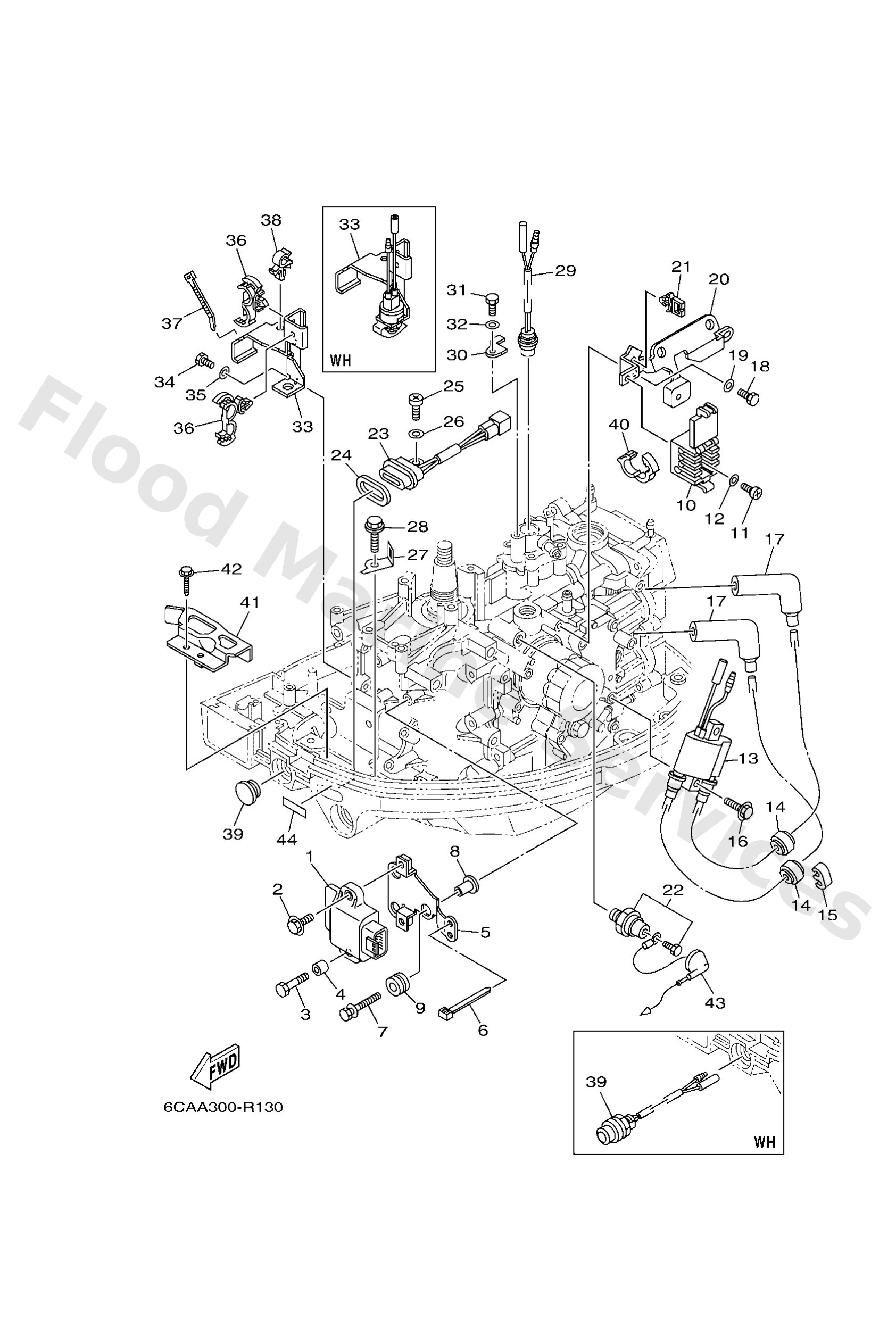

C.d.i. unit assembly
Diagram Reference: 1
Bolt(7u8)
Diagram Reference: 2
Bolt(jf7)
Diagram Reference: 3
Collar
Diagram Reference: 4
Bracket
Diagram Reference: 5
Clamp
Diagram Reference: 6
Bolt, with washer
Diagram Reference: 7
Collar
Diagram Reference: 8
Grommet(6k7)
Diagram Reference: 9
Clamp, coupler
Diagram Reference: 10
Screw pan head
Diagram Reference: 11
Washer, plate(6e3)
Diagram Reference: 12
Ignition coil assembly
Diagram Reference: 13
Grommet
Diagram Reference: 14
Clamp, cord
Diagram Reference: 15
Bolt, hexagon w/w deep recess
Diagram Reference: 16
Plug cap assembly
Diagram Reference: 17
Bolt(gj3)
Diagram Reference: 18
Washer, plain (646)
Diagram Reference: 19
Bracket
Diagram Reference: 20
Clamp
Diagram Reference: 21
Oil pressure switch assembly
Diagram Reference: 22
Pilot light assembly 1
Diagram Reference: 23
Gasket
Diagram Reference: 24
Screw, pan head(62j)
Diagram Reference: 25
Plate
Diagram Reference: 27
Bolt
Diagram Reference: 28
Thermo switch assembly
Diagram Reference: 29
Plate
Diagram Reference: 30
Stay, neutral switch
Diagram Reference: 33
Neutral switch assembly
Diagram Reference: 33
Bolt, hexagon deep recess
Diagram Reference: 34
Clamp(4tr)
Diagram Reference: 36
Clamp(6m7)
Diagram Reference: 38
Grommet
Diagram Reference: 39
Starting switch assembly
Diagram Reference: 39
Clamp
Diagram Reference: 40
Clamp
Diagram Reference: 40
Plate 2
Diagram Reference: 41
Extension, wire lead
Diagram Reference: 43
Extension, wire lead
Diagram Reference: 43
Mark, signal lamp
Diagram Reference: 44
