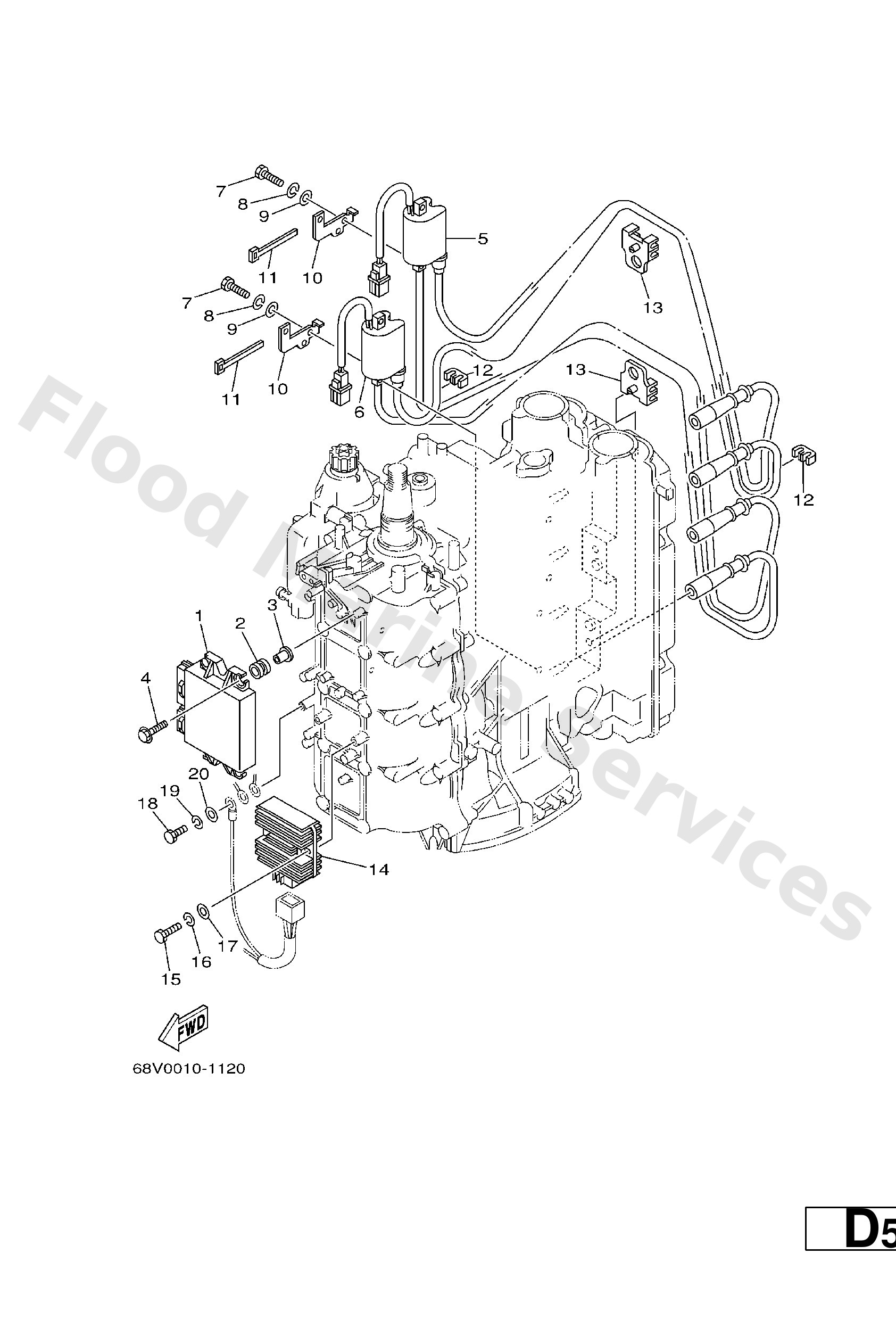

Diagram: ELECTRICAL 1

Diagram

Parts List

68V−8591A−10
Engine control unit assembly
Diagram Reference: 1
Get Part
68V−82317−00
Damper, ignition coil
Diagram Reference: 2
Get Part
624−42542−00
Collar
Diagram Reference: 3
Get Part
90119−06M59
Bolt, with washer
Diagram Reference: 4
Get Part
68V−82310−00
Ignition coil assembly
Diagram Reference: 5
Get Part
68V−82310−10
Ignition coil assembly
Diagram Reference: 6
Get Part
97095−06025
Bolt
Diagram Reference: 7
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 8
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 9
Get Part
68V−82388−00
Plate
Diagram Reference: 10
Get Part
90464−06001
Clamp
Diagram Reference: 11
Get Part
67F−82361−00
Clamp, cord
Diagram Reference: 12
Get Part
67F−82362−00
Clamp, cord 2
Diagram Reference: 13
Get Part
68V−81960−00
Rectifier & regulator assembly
Diagram Reference: 14
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 18
Get Part
