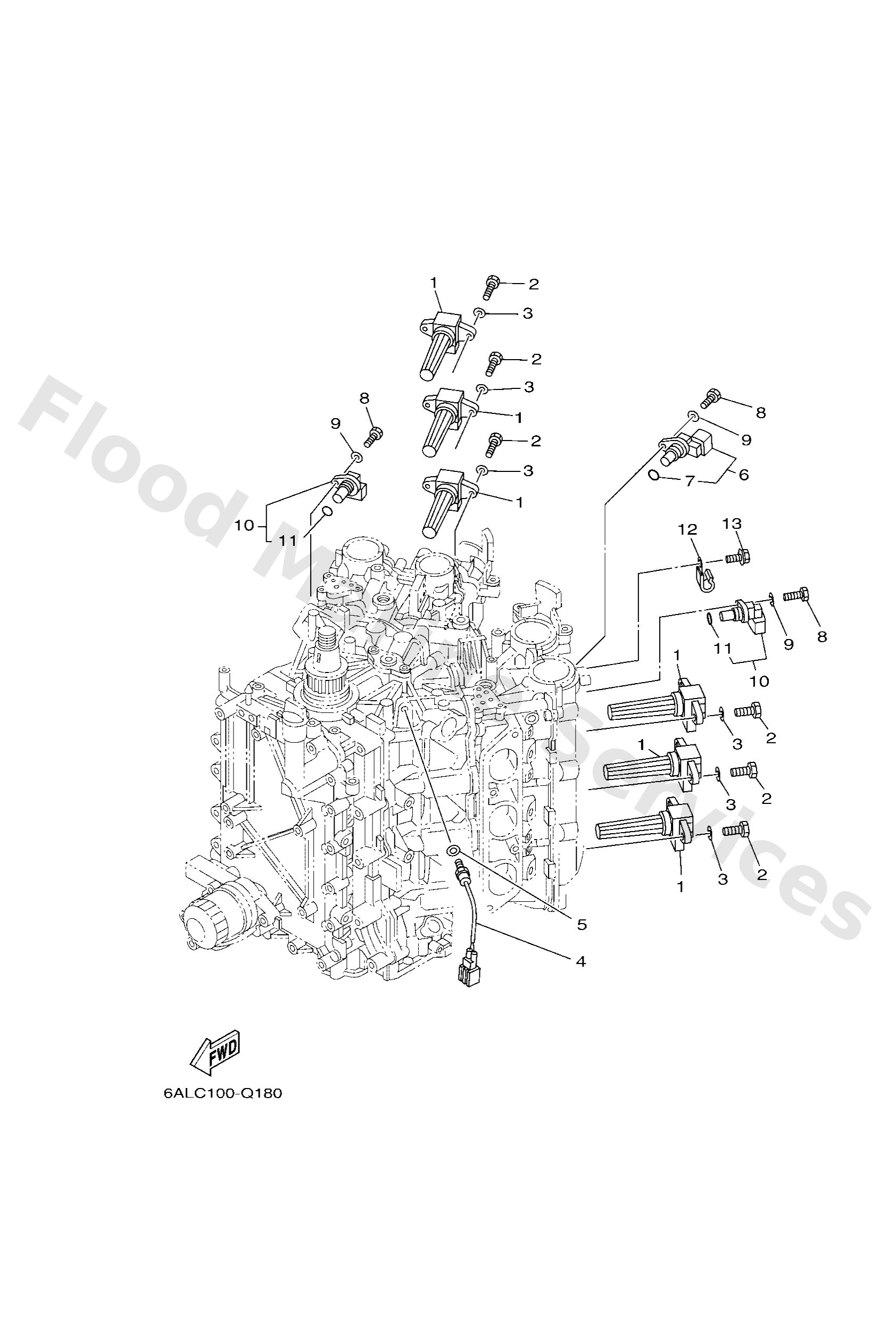

Diagram: ELECTRICAL 1

Diagram

Parts List

6P28231001
Ignition coil assembly
Diagram Reference: 1
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
61A8579000
Thermosensor assembly
Diagram Reference: 4
Get Part
9299010600
Washer, plate
Diagram Reference: 5
Get Part
6P28589600
Sensor, cam position
Diagram Reference: 6
Get Part
6P28507500
O-ring
Diagram Reference: 7
Get Part
6P28589700
Sensor, cam position 2
Diagram Reference: 10
Get Part
9046208032
Clamp
Diagram Reference: 12
Get Part
9759506512
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
