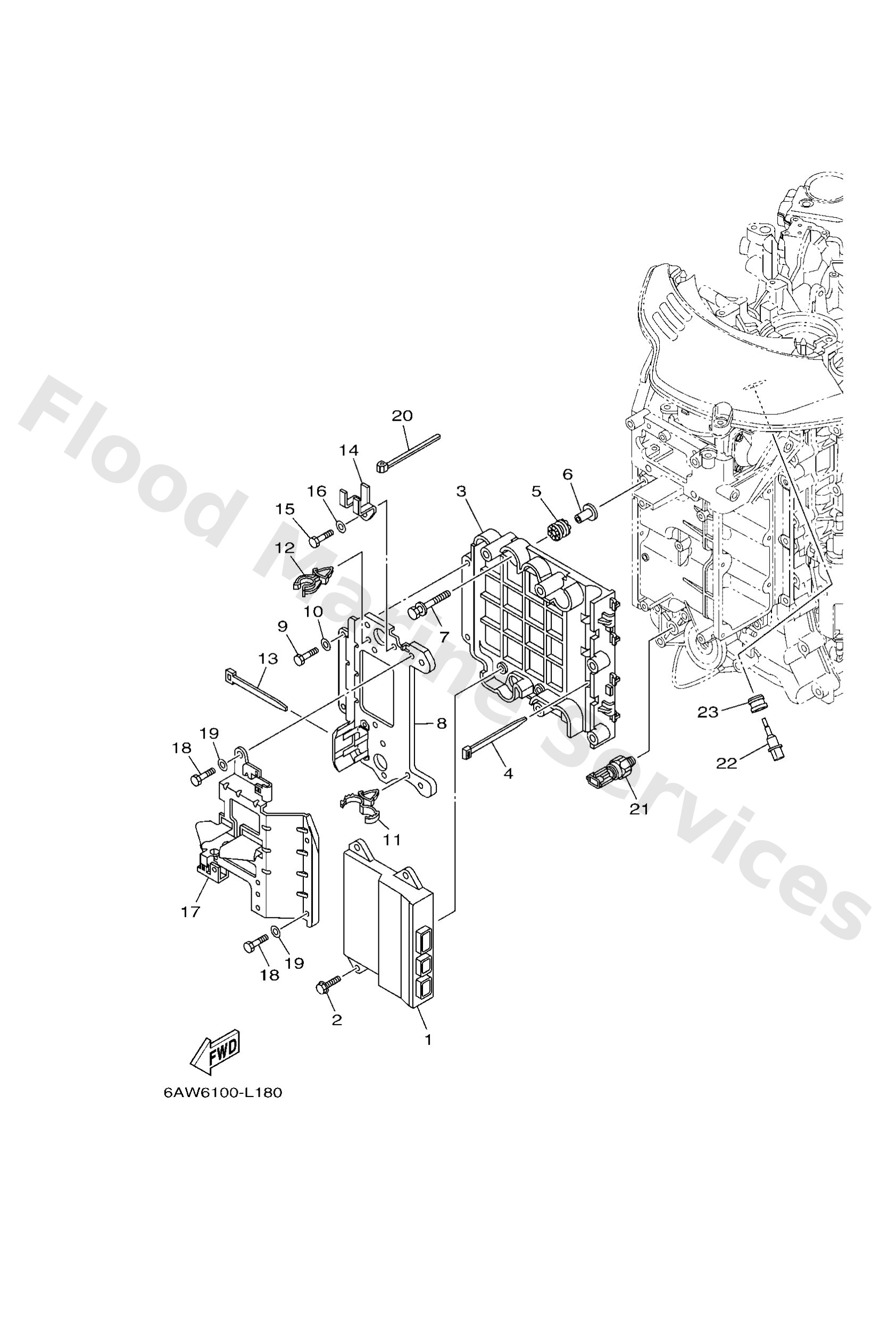

Diagram: ELECTRICAL 1

Diagram

Parts List

6AW8591A41
Engine control unit assembly
Diagram Reference: 1
Get Part
9011906M82
Bolt, with washer
Diagram Reference: 2
Get Part
6AW8599100
Bracket, unit
Diagram Reference: 3
Get Part
9046514M66
Clamp
Diagram Reference: 4
Get Part
60V8556400
Grommet
Diagram Reference: 5
Get Part
9038706176
Collar
Diagram Reference: 6
Get Part
68F8511900
Bolt
Diagram Reference: 7
Get Part
6AW8591C00
Case, ecu
Diagram Reference: 8
Get Part
9709506012
-
Diagram Reference: 9
Get Part
9299506600
Washer
Diagram Reference: 10
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 11
Get Part
9046416240
Clamp
Diagram Reference: 12
Get Part
9046513M24
Band, switch cord
Diagram Reference: 13
Get Part
6AW8254401
Clamp
Diagram Reference: 14
Get Part
6AW8258800
Plate
Diagram Reference: 17
Get Part
6AW8365100
Sender, oil pressure
Diagram Reference: 21
Get Part
63P8588600
Sensor, air temperature
Diagram Reference: 22
Get Part
63P1443500
Grommet
Diagram Reference: 23
Get Part
