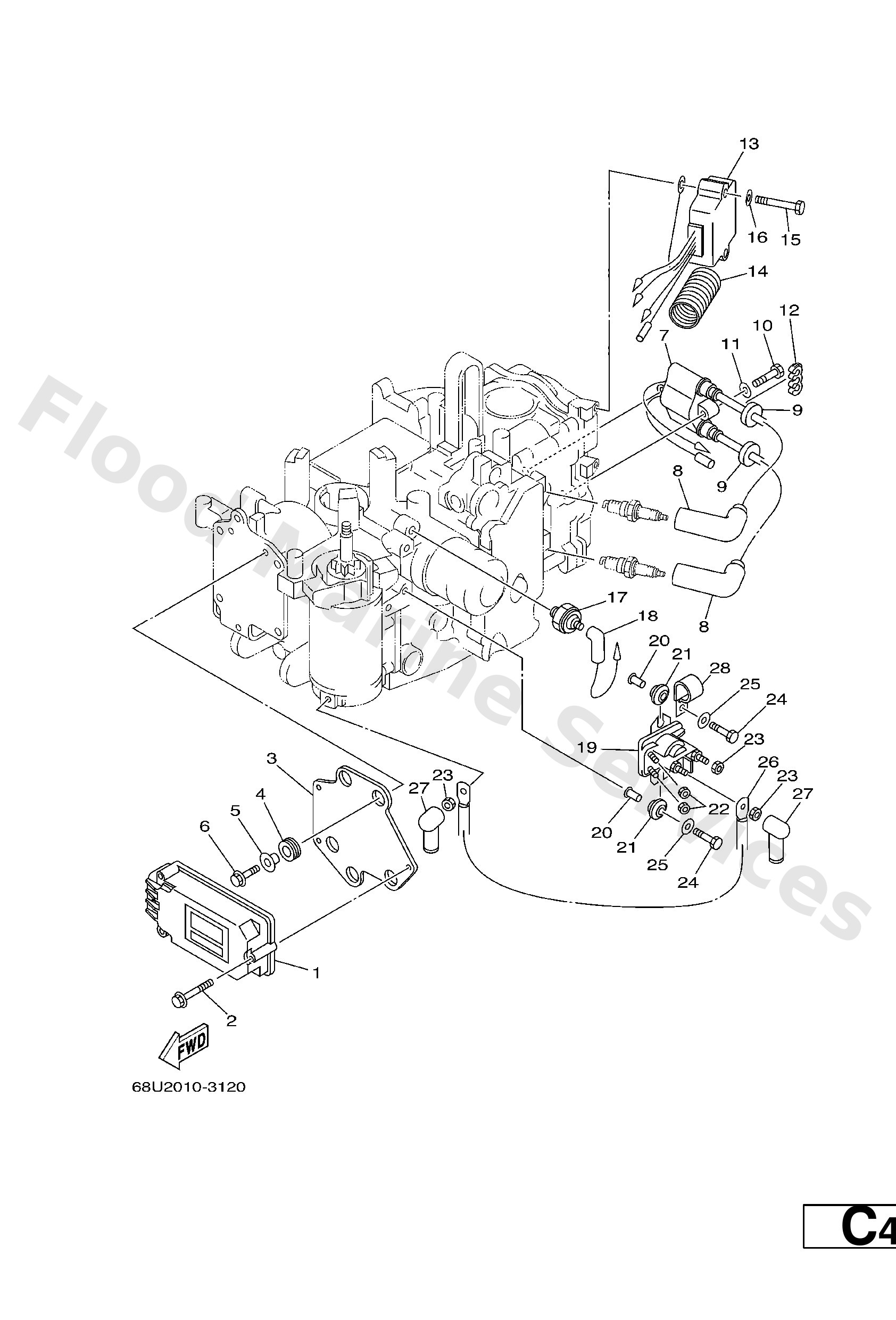

Diagram: ELECTRICAL 1

Diagram

Parts List

65W−85540−20
C.d.i. unit assembly
Diagram Reference: 1
Get Part
65W−8252V−00
Screw, special
Diagram Reference: 2
Get Part
65W−85542−00
Bracket
Diagram Reference: 3
Get Part
65W−85547−00
Damper
Diagram Reference: 4
Get Part
65W−86129−20
Collar
Diagram Reference: 5
Get Part
65W−8252V−10
Screw, special
Diagram Reference: 6
Get Part
65W−85570−00
Ignition coil assembly
Diagram Reference: 7
Get Part
6G8−82370−30
Plug cap assembly
Diagram Reference: 8
Get Part
90480−25161
Grommet(656)
Diagram Reference: 9
Get Part
97095−06030
Bolt(jf7)
Diagram Reference: 10
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 11
Get Part
90464−07M05
Clamp (6g5)
Diagram Reference: 12
Get Part
65W−81960−00
Rectifier & regulator assembly
Diagram Reference: 13
Get Part
6K3−83557−00
Tube
Diagram Reference: 14
Get Part
97095−06040
Bolt (682)
Diagram Reference: 15
Get Part
65W−82504−00
Oil pressure switch assembly
Diagram Reference: 17
Get Part
65W−82127−00
Wire, lead 2
Diagram Reference: 18
Get Part
65W−81941−00
Starter relay assembly
Diagram Reference: 19
Get Part
65W−8191C−00
Collar
Diagram Reference: 20
Get Part
65W−81922−00
Grommet
Diagram Reference: 21
Get Part
65W−8182A−00
Nut
Diagram Reference: 22
Get Part
65W−8182B−00
Nut, special
Diagram Reference: 23
Get Part
97095−06025
Bolt
Diagram Reference: 24
Get Part
65W−82117−00
Wire, lead
Diagram Reference: 26
Get Part
6G5−82119−10
Cover, lead wire
Diagram Reference: 27
Get Part
65W−8339X−00
Clamp, cord
Diagram Reference: 28
Get Part
