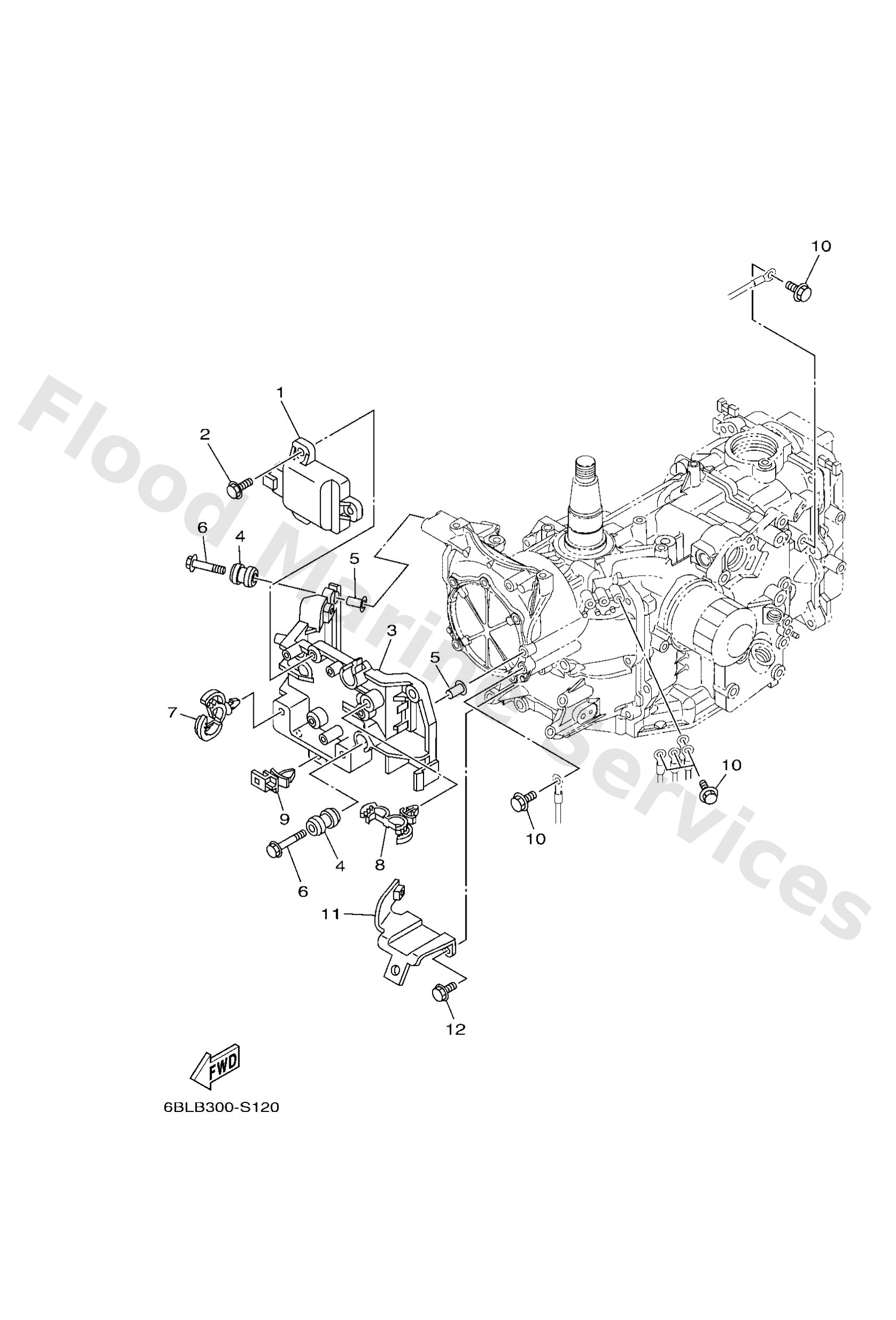

Diagram: ELECTRICAL 1

Diagram

Parts List

6BL8554000
C.d.i. unit assembly
Diagram Reference: 1
Get Part
97E7506520
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Get Part
6BL8194801
Bracket
Diagram Reference: 3
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 4
Get Part
9038706119
Collar
Diagram Reference: 5
Get Part
95D9506030
Bolt, flange deep recess
Diagram Reference: 6
Get Part
9046412183
Clamp(jn2)
Diagram Reference: 7
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 8
Get Part
9046412002
Clamp
Diagram Reference: 9
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 10
Get Part
6BL8255400
Stay, neutral switch
Diagram Reference: 11
Get Part
95D9506014
Bolt, flange deep recess
Diagram Reference: 12
