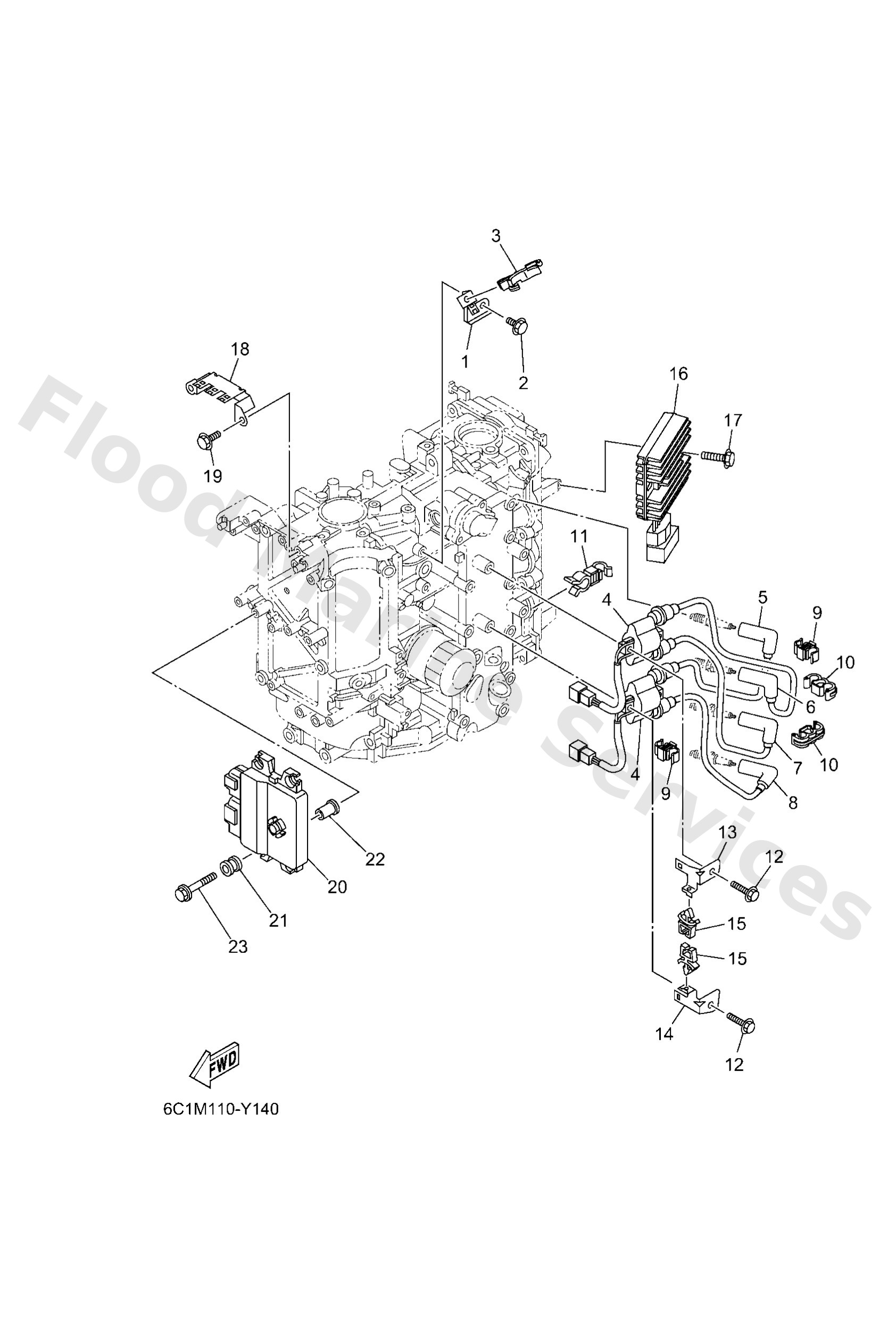

Parts List
Plate
Diagram Reference: 1
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Clamp(4tr)
Diagram Reference: 3
Ignition coil assembly
Diagram Reference: 4
High tension cord assembly 1
Diagram Reference: 5
High tension cord assembly 2
Diagram Reference: 6
High tension cord assembly 3
Diagram Reference: 7
High tension cord assembly 4
Diagram Reference: 8
Clamp
Diagram Reference: 9
Clamp
Diagram Reference: 10
Clamp
Diagram Reference: 11
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Bracket, ignition coil
Diagram Reference: 13
Bracket, ignition coil
Diagram Reference: 14
Clamp
Diagram Reference: 15
Rectifier & regulator assembly
Diagram Reference: 16
Stay, fuse box
Diagram Reference: 18
Engine control unit assembly
Diagram Reference: 20
Engine control unit assembly
Diagram Reference: 20
Damper, ignition coil
Diagram Reference: 21
Collar
Diagram Reference: 22
Bolt, with washer
Diagram Reference: 23
