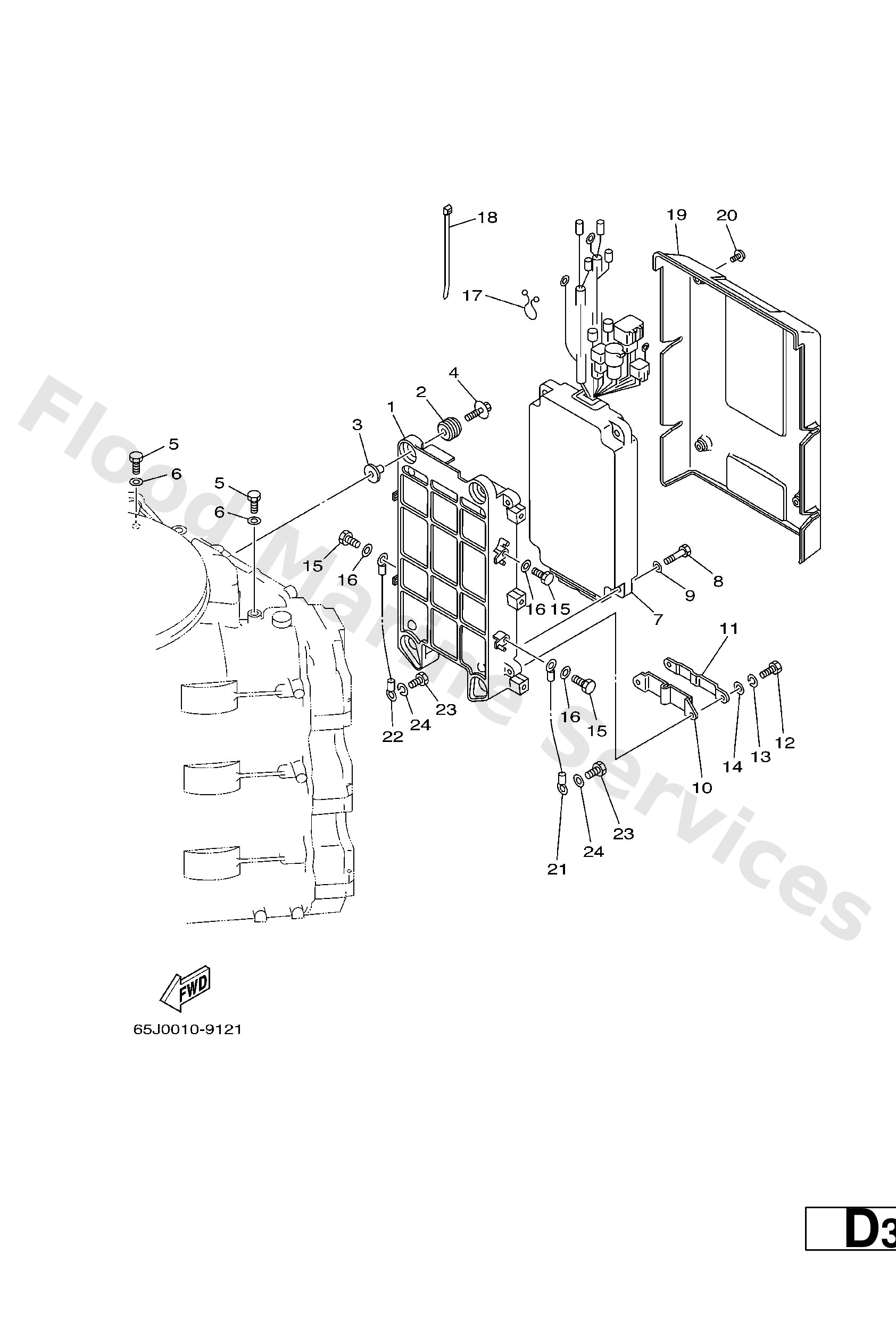

Diagram: ELECTRICAL 1

Diagram

Parts List

61A855420194
Bracket
Diagram Reference: 1
Get Part
90480--09M12
Grommet (6a0)
Diagram Reference: 2
Get Part
90387--06M03
Collar (676)
Diagram Reference: 3
Get Part
90119--06M28
13 −
Diagram Reference: 4
Get Part
97013--06016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
92903--06600
Washer, plain (646)
Diagram Reference: 6
Get Part
65L8554002
C.d.i. unit assembly
Diagram Reference: 7
Get Part
97013--06025
Bolt(62y)
Diagram Reference: 8
Get Part
61A--85548--00
Holder
Diagram Reference: 10
Get Part
61A--85525--00
Cover
Diagram Reference: 11
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 12
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 13
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 14
Get Part
97013--06014
Bolt(gj3)
Diagram Reference: 15
Get Part
90464--15M11
Clamp (3y2)
Diagram Reference: 17
Get Part
90465--11M52
Clamp(6e7)
Diagram Reference: 18
Get Part
61A--85537--00
Cover
Diagram Reference: 19
Get Part
90159--06M03
Screw (6g5)
Diagram Reference: 20
Get Part
61A--82519--00
Wire, Earth Lead
Diagram Reference: 21
Get Part
6G0--82519--00
Wire, earth lead
Diagram Reference: 22
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 23
Get Part
