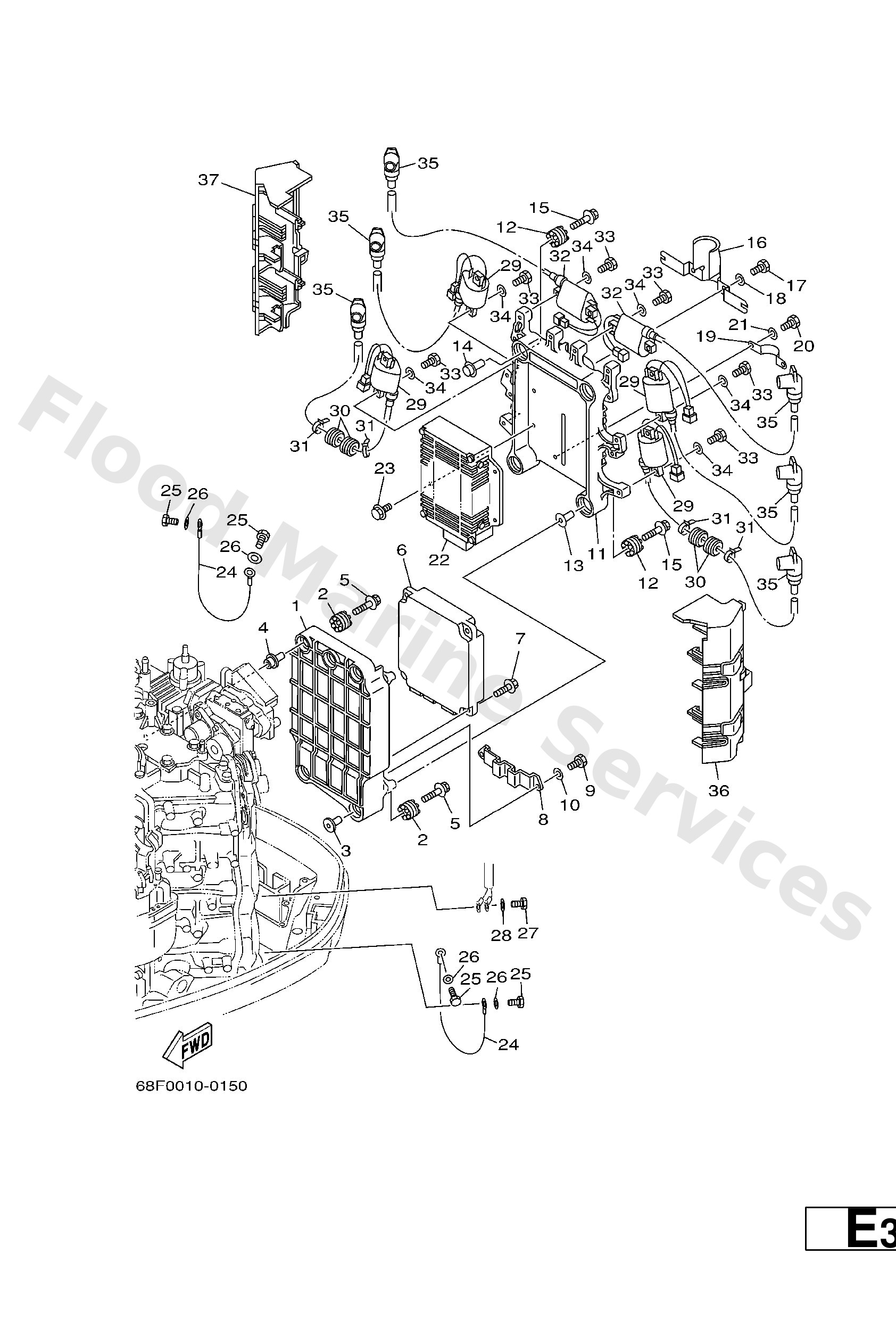

Diagram: ELECTRICAL 1

Diagram

Parts List

68F855420094
Bracket
Diagram Reference: 1
Get Part
68F--85516--01
Spacer
Diagram Reference: 2
Get Part
68F--86129--00
Collar
Diagram Reference: 3
Get Part
68F8612910
Collar
Diagram Reference: 4
Get Part
68F--85119--00
Bolt
Diagram Reference: 5
Get Part
68J8591A10
Engine Control Unit assembly
Diagram Reference: 6
Get Part
90119--06MA3
Bolt, with washer
Diagram Reference: 7
Get Part
68F8554801
Holder
Diagram Reference: 8
Get Part
97013--06014
Bolt(gj3)
Diagram Reference: 9
Get Part
92903--06600
Washer, plain (646)
Diagram Reference: 10
Get Part
68F851420094
Bracket, Reflector 2
Diagram Reference: 11
Get Part
68F8559900
Cover
Diagram Reference: 16
Get Part
97013--06012
Bolt(gh1)
Diagram Reference: 17
Get Part
68F8564400
Plate
Diagram Reference: 19
Get Part
68F8591B00
Driver, injector assembly
Diagram Reference: 22
Get Part
90119--06MA2
Bolt, with washer
Diagram Reference: 23
Get Part
6G0--82519--00
Wire, earth lead
Diagram Reference: 24
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 25
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 26
Get Part
68F8231001
Ignition coil assembly
Diagram Reference: 29
Get Part
90480--22M15
Grommet (6e5)
Diagram Reference: 30
Get Part
90465--11M10
Clamp
Diagram Reference: 31
Get Part
68F8231011
Ignition coil assembly
Diagram Reference: 32
Get Part
97013--05020
Bolt, hexagon
Diagram Reference: 33
Get Part
92903--05600
Washer, plain (646)
Diagram Reference: 34
Get Part
68F8237001
Plug cap assembly
Diagram Reference: 35
Get Part
68F8252U00
Cover
Diagram Reference: 36
Get Part
68F8252U10
Cover
Diagram Reference: 37
Get Part
