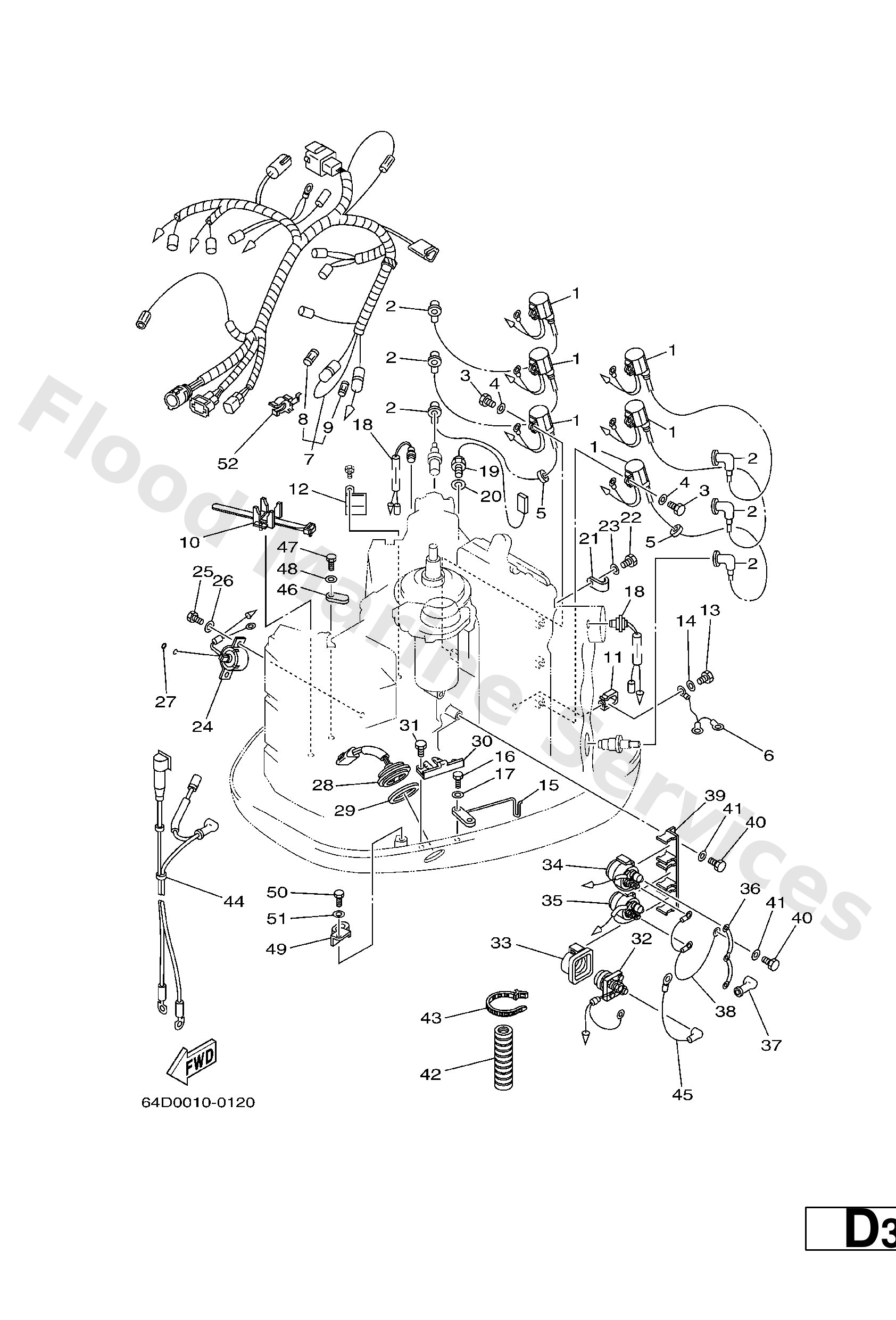

Diagram: ELECTRICAL 2

Diagram

Parts List

6R3--85570--01
Ignition coil assembly
Diagram Reference: 1
Get Part
6E3--82370--21
Plug cap assembly
Diagram Reference: 2
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 3
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 4
Get Part
90480--25161
Grommet(656)
Diagram Reference: 5
Get Part
6E5--82531--10
Wire, lead
Diagram Reference: 6
Get Part
64D--82590--00
Wire harness assembly
Diagram Reference: 7
Get Part
663--82151--00
Fuse
Diagram Reference: 8
Get Part
705--82151--00
Fuse (30a)
Diagram Reference: 9
Get Part
688--82594--00
Clamp
Diagram Reference: 10
Get Part
90465--05M87
Clamp
Diagram Reference: 11
Get Part
90465--08M89
Clamp
Diagram Reference: 12
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 13
Get Part
6K7--82588--00
Plate
Diagram Reference: 15
Get Part
688--82560--10
Thermo switch assembly
Diagram Reference: 18
Get Part
61A--85790--00
Thermosensor assembly
Diagram Reference: 19
Get Part
92990--10600
Washer, plate
Diagram Reference: 20
Get Part
90465--06M86
Clamp
Diagram Reference: 21
Get Part
64E--86110--00
Solenoid
Diagram Reference: 24
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 25
Get Part
93210--03261
O-ring (663)
Diagram Reference: 27
Get Part
6R3--82563--00
Trim & tilt switch assembly
Diagram Reference: 28
Get Part
6E5--82587--00
Gasket
Diagram Reference: 29
Get Part
6R3--83614--00
Bracket
Diagram Reference: 30
Get Part
61A--81941--00
Starter relay assembly
Diagram Reference: 32
Get Part
689--81952--10
Holder, starter relay
Diagram Reference: 33
Get Part
6E5--81950--00
Relay assembly
Diagram Reference: 34
Get Part
6E5--8195A--00
Relay assembly
Diagram Reference: 35
Get Part
6G5--87149--10
Connector
Diagram Reference: 36
Get Part
6G5--82119--00
Cover, lead wire
Diagram Reference: 37
Get Part
6E5--82116--00
Wire, minus lead
Diagram Reference: 38
Get Part
6G5--81948--11
Bracket
Diagram Reference: 39
Get Part
6E9--83557--70
13 −
Diagram Reference: 42
Get Part
90465--13M18
Clamp
Diagram Reference: 43
Get Part
6R3--82105--02
Battery cable
Diagram Reference: 44
Get Part
6K78211700
Wire, lead
Diagram Reference: 45
Get Part
6E5--82588--00
Plate
Diagram Reference: 46
Get Part
90465--12M25
Clamp (6e5)
Diagram Reference: 49
Get Part
6G5--82152--00
Holder, fuse
Diagram Reference: 52
Get Part
