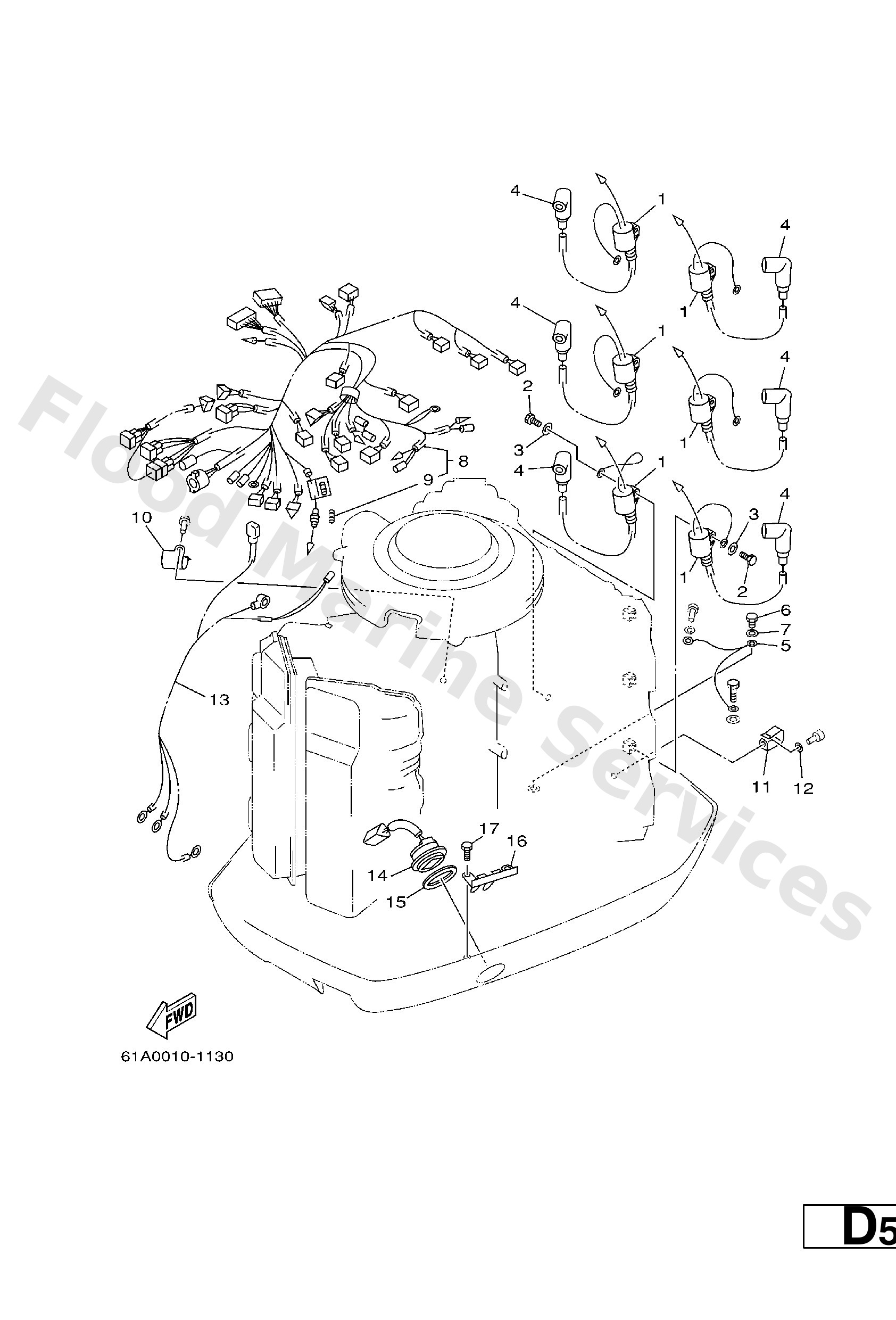

Diagram: ELECTRICAL 2

Diagram

Parts List

61A−85570−00
Ignition coil assembly
Diagram Reference: 1
Get Part
97013−06020
Bolt(62y)
Diagram Reference: 2
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 3
Get Part
6E3−82370−21
Plug cap assembly
Diagram Reference: 4
Get Part
61A−82531−00
Wire, lead
Diagram Reference: 5
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 6
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 7
Get Part
61A−82590−10
Wire Harness assembly
Diagram Reference: 8
Get Part
663−82151−00
Fuse
Diagram Reference: 9
Get Part
90465−08M89
Clamp
Diagram Reference: 10
Get Part
90465−05M87
Clamp
Diagram Reference: 11
Get Part
61A−82105−00
Battery cable
Diagram Reference: 13
Get Part
61A−82563−00
Trim & tilt switch assembly
Diagram Reference: 14
Get Part
6E5−82587−00
Gasket
Diagram Reference: 15
Get Part
61A−83614−00
Bracket
Diagram Reference: 16
