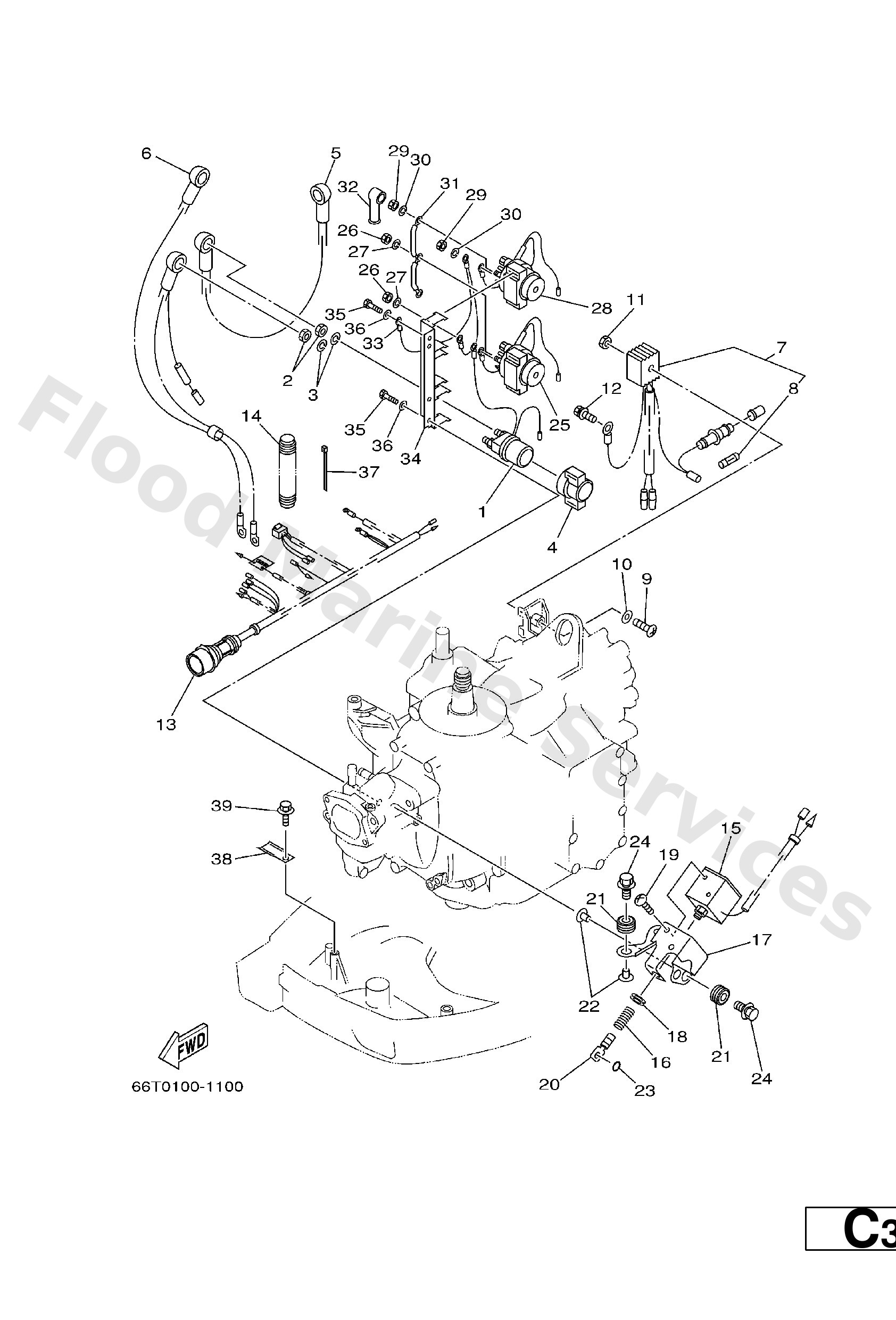

Diagram: ELECTRICAL 2

Diagram

Parts List

6G1--8194A--10
Starter relay
Diagram Reference: 1
Get Part
90170--06M30
Nut(62x)
Diagram Reference: 2
Get Part
90204--06M00
Washer, spring(62x)
Diagram Reference: 3
Get Part
6G1--81952--00
Holder, relay
Diagram Reference: 4
Get Part
6E5--82117--01
Wire, lead
Diagram Reference: 5
Get Part
66T8210500
Battery cable
Diagram Reference: 6
Get Part
6G1--81970--61
Rectifier assembly
Diagram Reference: 7
Get Part
6G1--82151--00
Fuse (10a)
Diagram Reference: 8
Get Part
9788005030
Ybs86-530 screw,panhead
Diagram Reference: 9
Get Part
92990--05600
Washer, plain (646)
Diagram Reference: 10
Get Part
95380--05600
Nut, hexagon (663)
Diagram Reference: 11
Get Part
90109--06M80
Bolt
Diagram Reference: 12
Get Part
66T8259020
Wire harness assembly
Diagram Reference: 13
Get Part
6N7--83557--00 (I.DIA.) 22MM)
Tube
Diagram Reference: 14
Get Part
6J48611100
Coil, solenoid
Diagram Reference: 15
Get Part
6J48611600
Wire, pull
Diagram Reference: 16
Get Part
66T8611200
Stay, solenoid
Diagram Reference: 17
Get Part
90480--10155
Grommet(664)
Diagram Reference: 18
Get Part
97880--05008
Screw, with washer
Diagram Reference: 19
Get Part
682--86117--00
Hook, wire pull
Diagram Reference: 20
Get Part
90480--10M23
Grommet(6k7)
Diagram Reference: 21
Get Part
90387--06M60
Collar (6h3)
Diagram Reference: 22
Get Part
93210--03261
O-ring (663)
Diagram Reference: 23
Get Part
90119--06M88
Bolt, with washer
Diagram Reference: 24
Get Part
6E5--8195B--01
Relay assembly
Diagram Reference: 25
Get Part
6E5--8195C--01
Relay assembly
Diagram Reference: 28
Get Part
66T--87149--00
Connector
Diagram Reference: 31
Get Part
6G5--82119--00
Cover, lead wire
Diagram Reference: 32
Get Part
6E5--82116--00
Wire, minus lead
Diagram Reference: 33
Get Part
66T8194800
Bracket
Diagram Reference: 34
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 35
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 36
Get Part
90465--11M10
Clamp
Diagram Reference: 37
Get Part
9046520M31
Clamp(6t4)
Diagram Reference: 38
Get Part
90109--06M86
Bolt
Diagram Reference: 39
