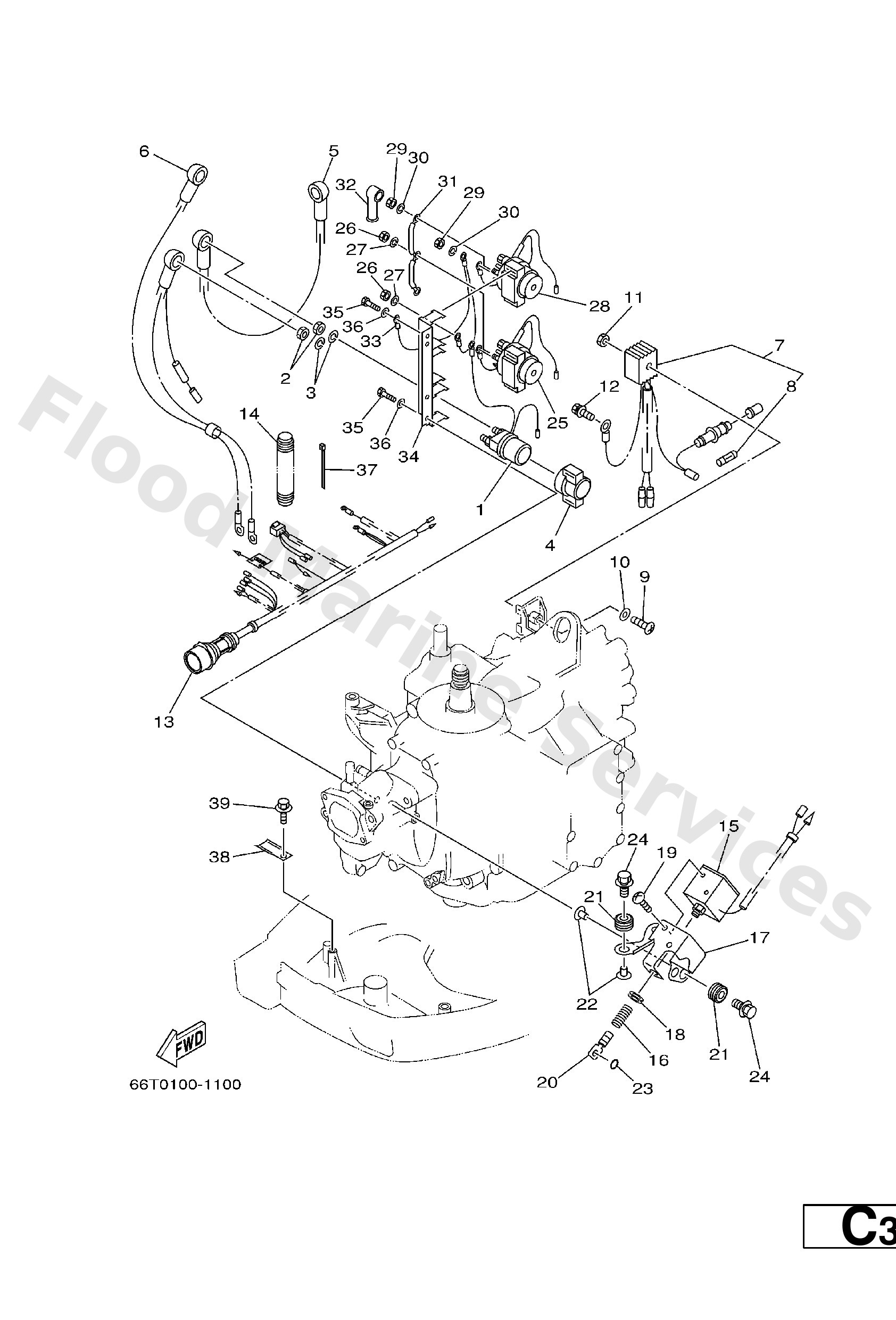

Diagram: ELECTRICAL 2

Diagram

Parts List

6G1−8194A−10
Starter relay
Diagram Reference: 1
Get Part
90170−06M30
Nut(62x)
Diagram Reference: 2
Get Part
90204−06M00
Washer, spring(62x)
Diagram Reference: 3
Get Part
6G1−81952−00
Holder, relay
Diagram Reference: 4
Get Part
6E5−82117−01
Wire, lead
Diagram Reference: 5
Get Part
66T−82105−00
Battery cable
Diagram Reference: 6
Get Part
6G1−81970−61
Rectifier assembly
Diagram Reference: 7
Get Part
6G1−82151−00
Fuse (10a)
Diagram Reference: 8
Get Part
97880−05030
Ybs86-530 screw,panhead
Diagram Reference: 9
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 10
Get Part
95380−05600
Nut, hexagon (663)
Diagram Reference: 11
Get Part
90109−06M80
Bolt
Diagram Reference: 12
Get Part
66T−82590−20
Wire harness assembly
Diagram Reference: 13
Get Part
6N7−83557−00 (I.DIA.) 22MM)
Tube
Diagram Reference: 14
Get Part
6J4−86111−00
Coil, solenoid
Diagram Reference: 15
Get Part
6J4−86116−00
Wire, pull
Diagram Reference: 16
Get Part
66T−86112−00
Stay, solenoid
Diagram Reference: 17
Get Part
90480−10155
Grommet(664)
Diagram Reference: 18
Get Part
97880−05008
Screw, with washer
Diagram Reference: 19
Get Part
682−86117−00
Hook, wire pull
Diagram Reference: 20
Get Part
90480−10M23
Grommet(6k7)
Diagram Reference: 21
Get Part
90387−06M60
Collar (6h3)
Diagram Reference: 22
Get Part
93210−03261
O-ring (663)
Diagram Reference: 23
Get Part
90119−06M88
Bolt, with washer
Diagram Reference: 24
Get Part
6E5−8195B−01
Relay assembly
Diagram Reference: 25
Get Part
6E5−8195C−01
Relay assembly
Diagram Reference: 28
Get Part
66T−87149−00
Connector
Diagram Reference: 31
Get Part
6G5−82119−00
Cover, lead wire
Diagram Reference: 32
Get Part
6E5−82116−00
Wire, minus lead
Diagram Reference: 33
Get Part
66T−81948−00
Bracket
Diagram Reference: 34
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 35
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 36
Get Part
90465−11M10
Clamp
Diagram Reference: 37
Get Part
90465−20M31
Clamp(6t4)
Diagram Reference: 38
Get Part
90109−06M86
Bolt
Diagram Reference: 39
Get Part
