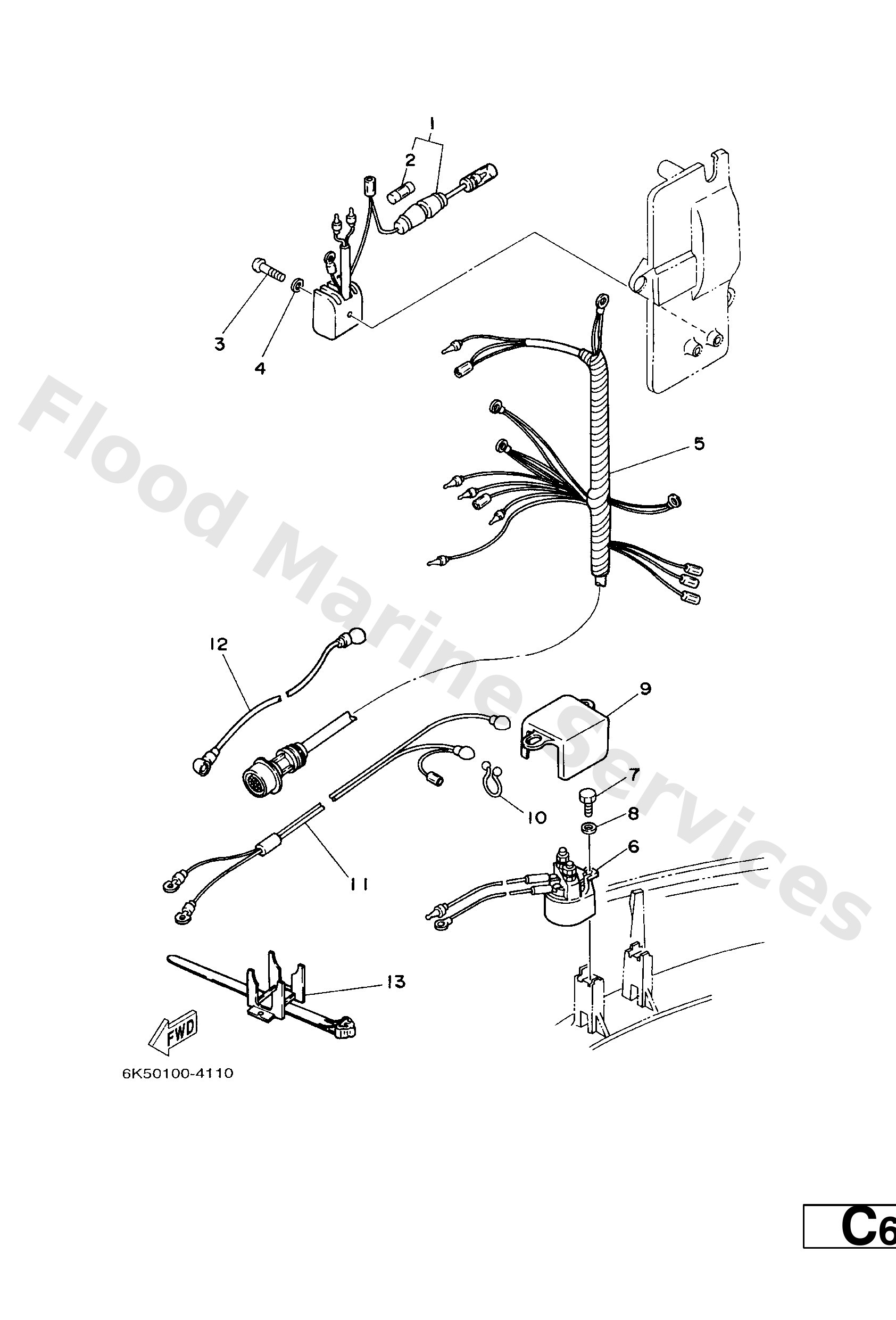

Diagram: ELECTRICAL 2

Diagram

Parts List

6G1−81970−61
Rectifier assembly
Diagram Reference: 1
Get Part
6G1−82151−00
Fuse (10a)
Diagram Reference: 2
Get Part
97880−05025
Screw, panhead (a93)
Diagram Reference: 3
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 4
Get Part
6K5−82590−00
10 −
Diagram Reference: 5
Get Part
688−81950−10
Relay assembly
Diagram Reference: 6
Get Part
97013−06016
Bolt, hexagon deep recess
Diagram Reference: 7
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 8
Get Part
6H3−82164−00
Case 2
Diagram Reference: 9
Get Part
90464−15M11
Clamp (3y2)
Diagram Reference: 10
Get Part
6H3−82105−01
Battery cable
Diagram Reference: 11
Get Part
6H3−82117−00
Wire, lead
Diagram Reference: 12
Get Part
688−82594−00
Clamp
Diagram Reference: 13
